Import Style 1/2" Air Compressor Pilot Unloader Check Valve Combination 95 - 125 PSI

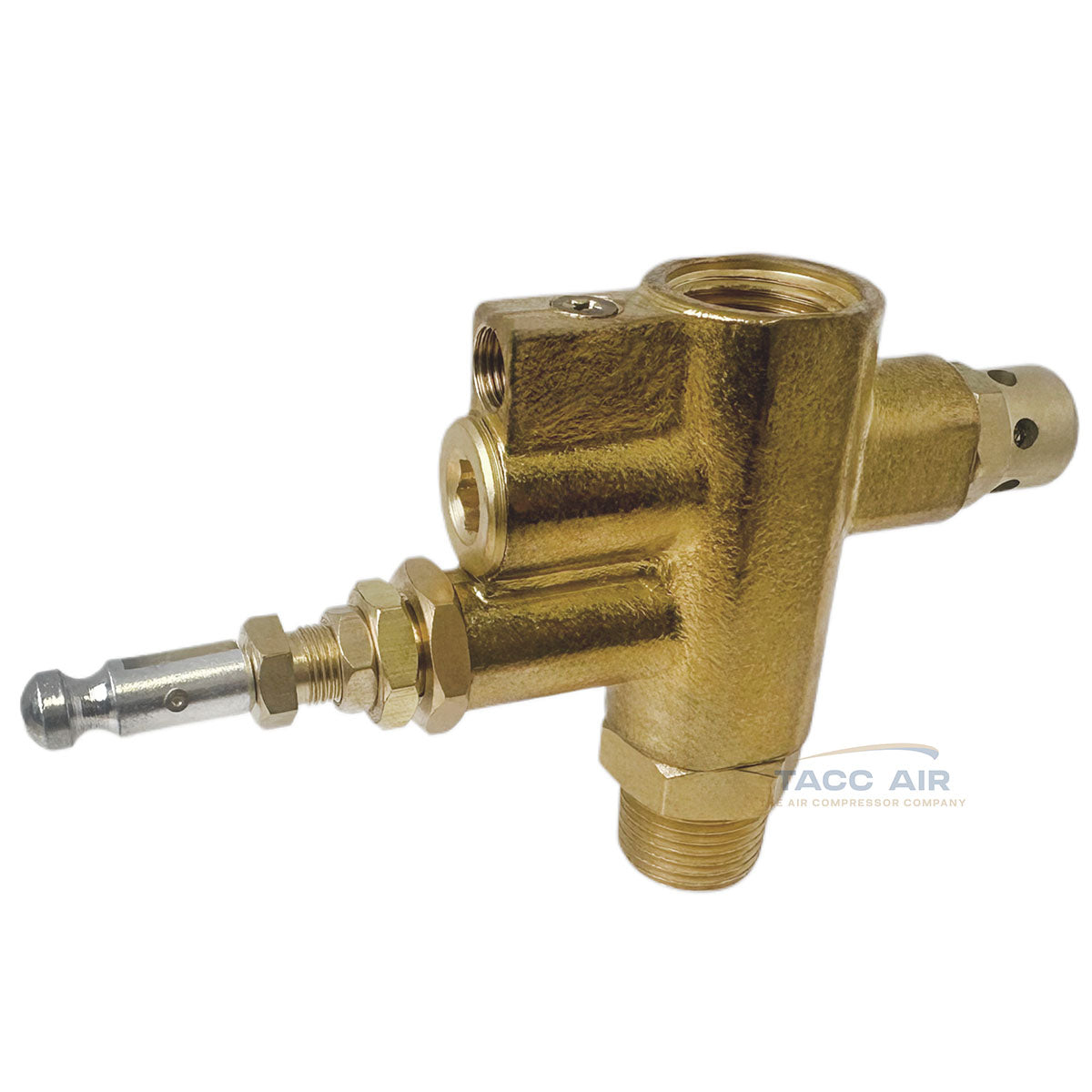

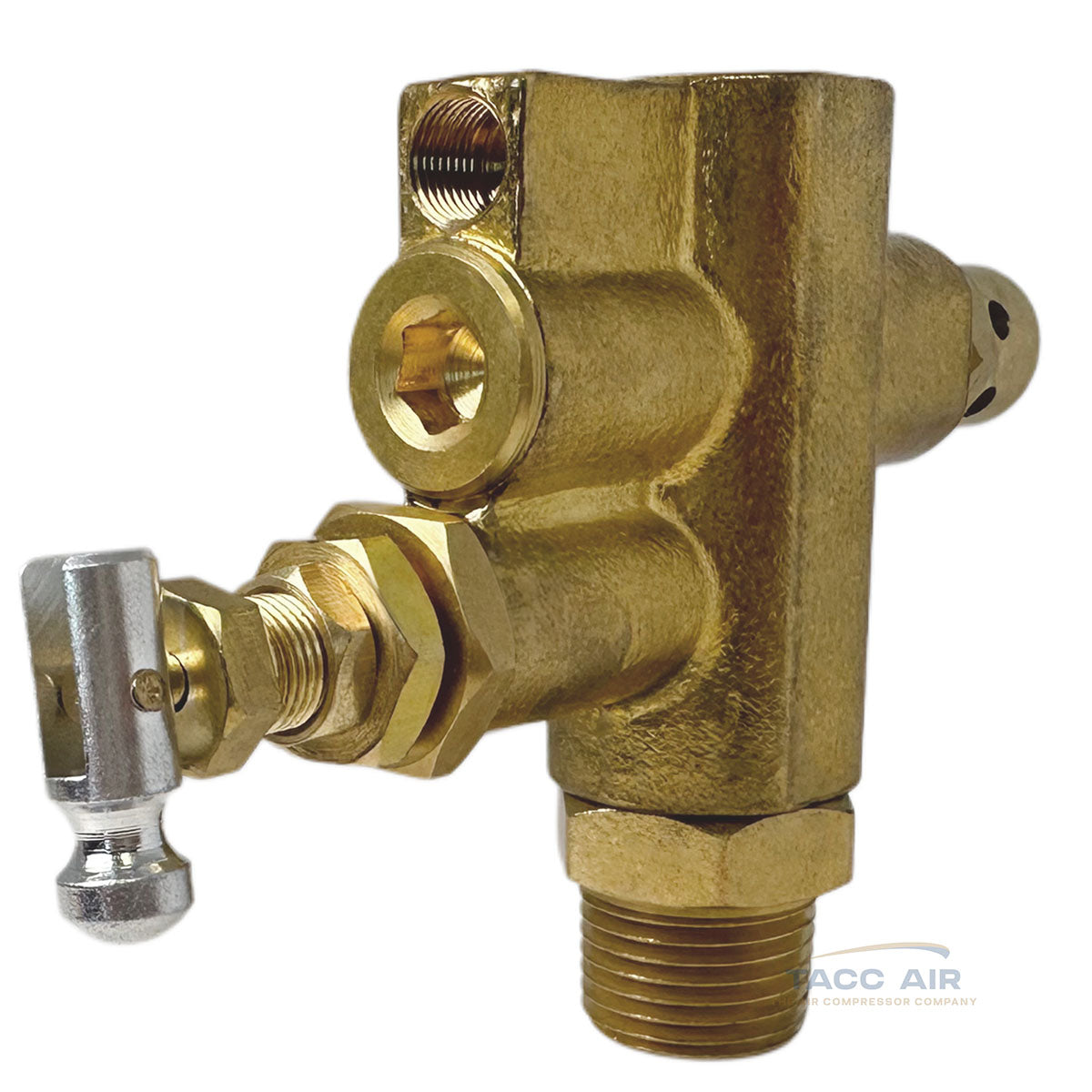

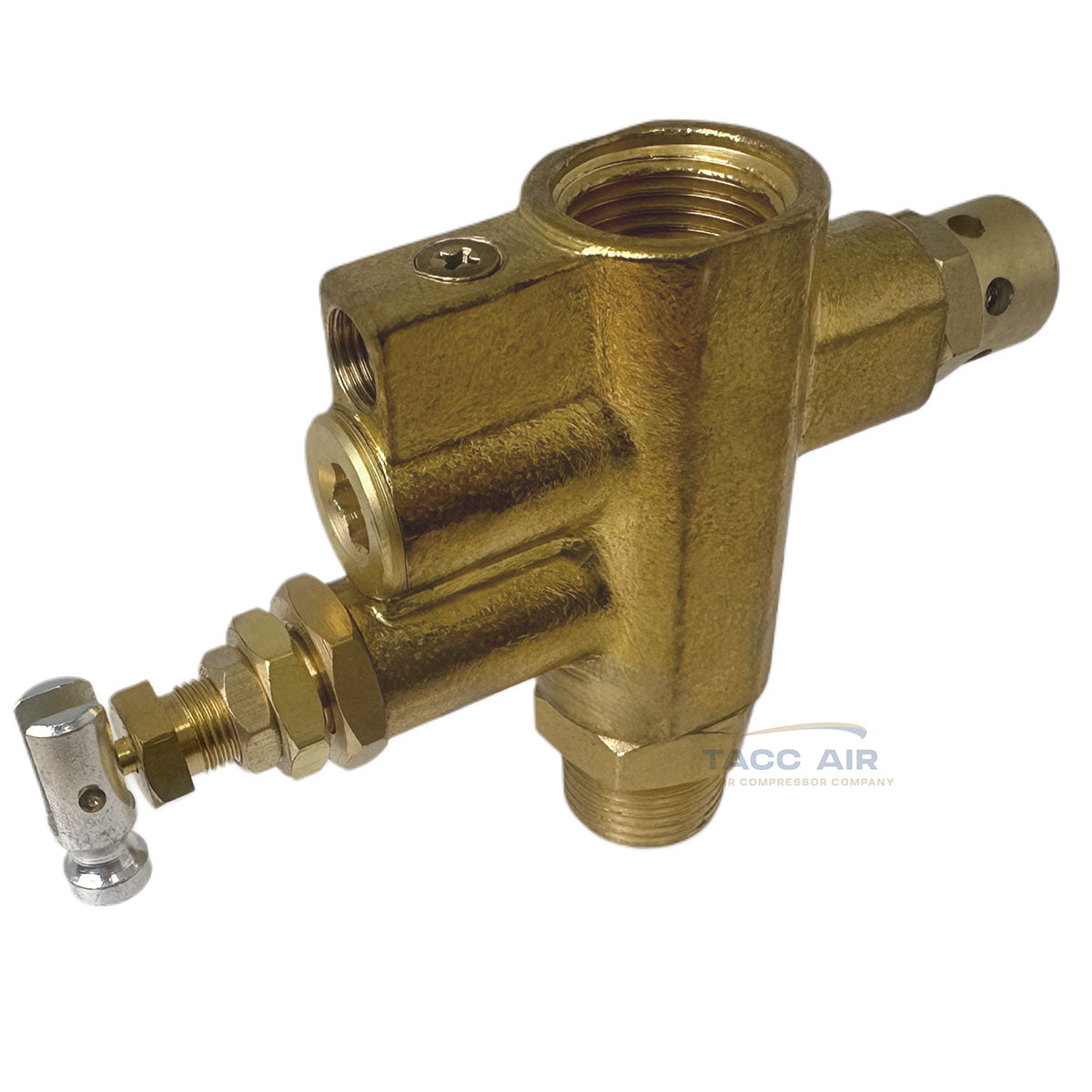

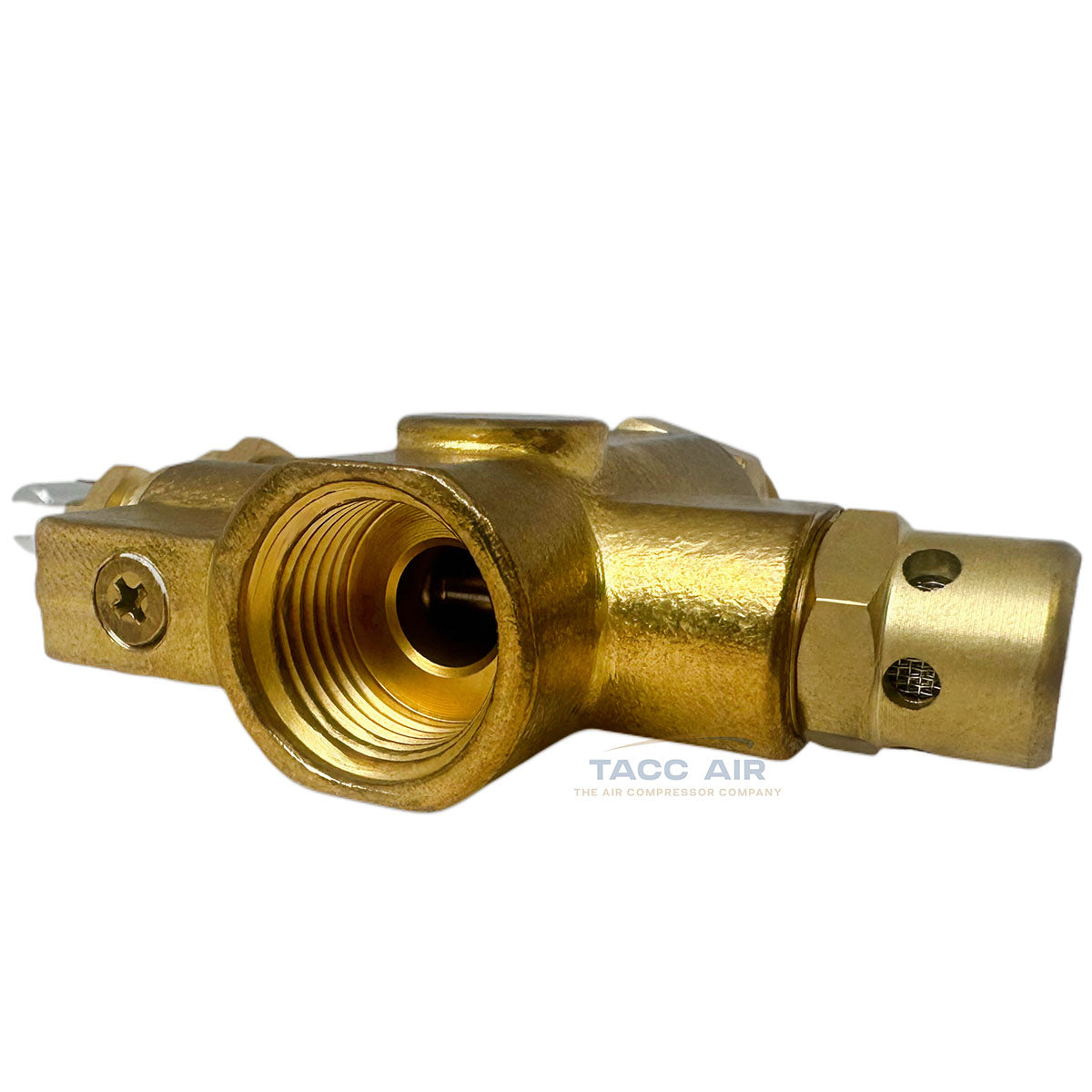

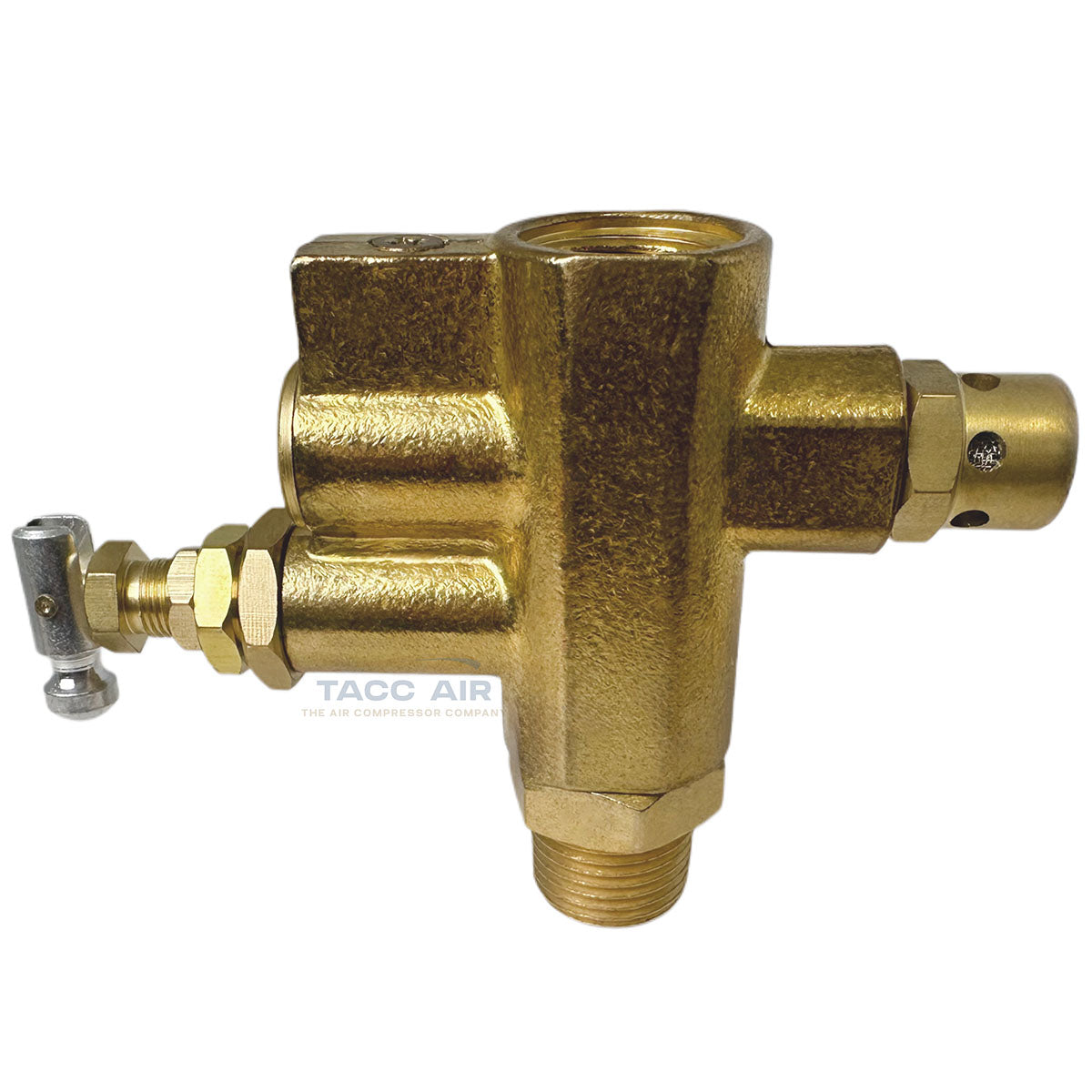

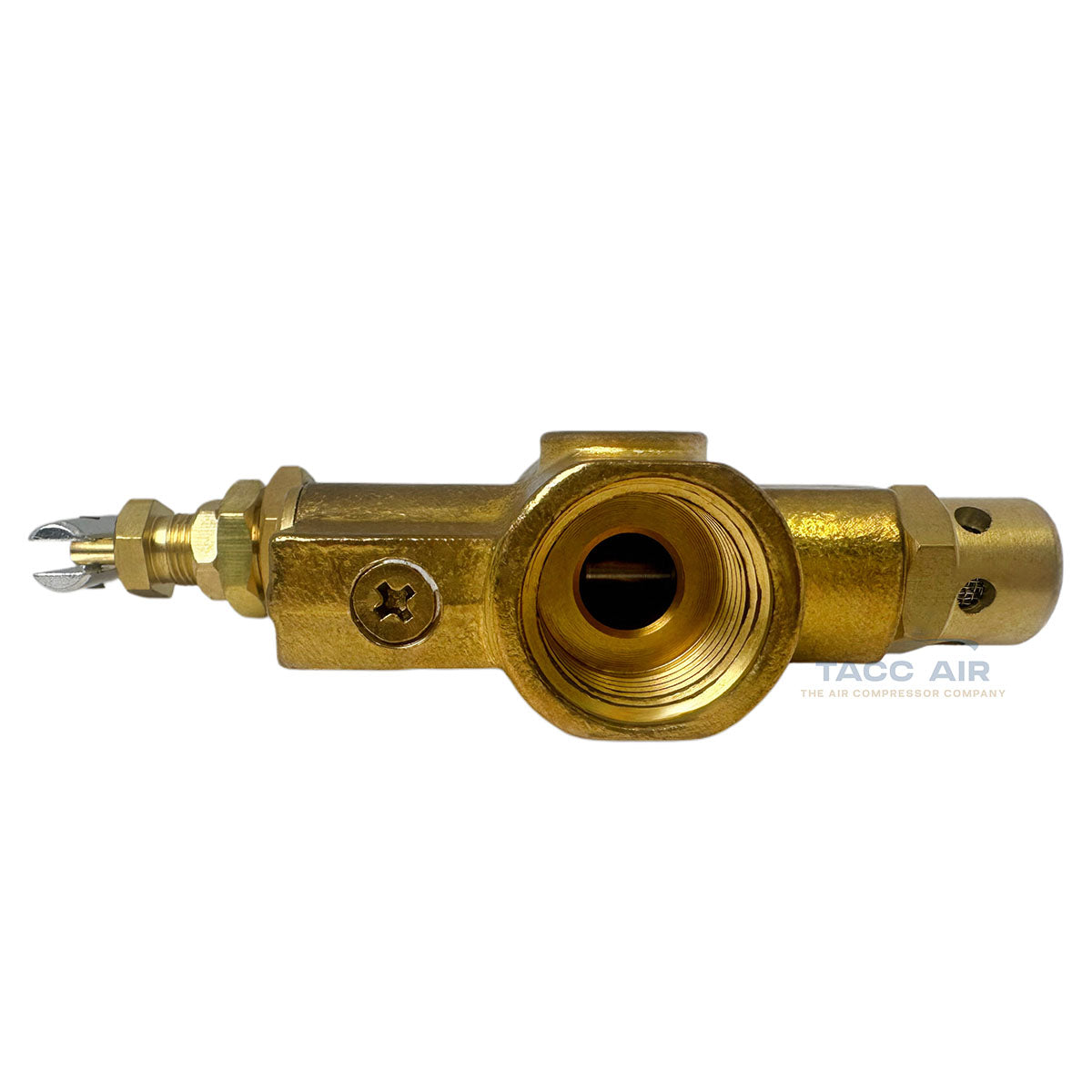

 Import Style 1/2" Female NPT x 1/2" Male NPT Air Compressor Pilot/Unloader/Check Valve Combo – 95-125 PSI

This combination pilot / unloader/ check valve is built for use with gas-powered or electric constant-run air compressors. This style and design is commonly found on gas air compressors that are imported or from manufactures that use imported components. It combines a pilot valve, discharge valve, and check valve in one.

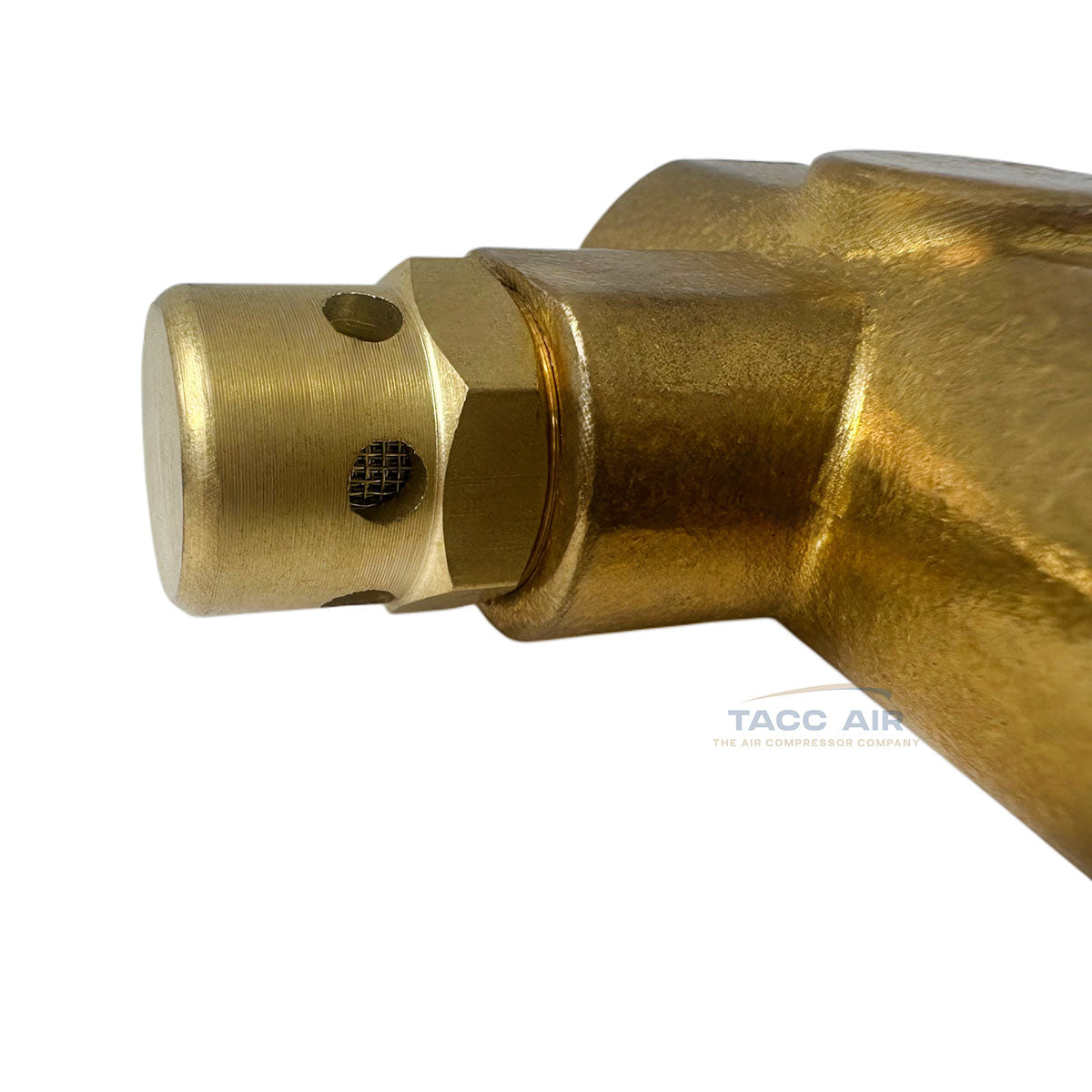

The valve includes a 1/2" female NPT top inlet, a 1/2" male NPT outlet to the tank connection, and a 1/8" female NPT port on the side for a throttle or unloader control port. It’s factory set to operate between 95 and 125 PSI and features a built-in manual unloader valve. The unloader exhaust outlet also has a muffler to reduce noise during unload.

Details:

• Solid brass construction

• 1/2" male NPT outlet / tank connection ( Note 1/2" NPT measures approximately 3/4" in diameter)

• 1/2"" female NPT air inlet ( Note 1/2" NPT measures approximately 3/4" in diameter)

• 1/8" NPT port for throttle or unloader control (1/8" NPT measures approximately 3/8" in diameter)

• Set for 95 PSI on / 125 PSI off

• Manual unloader valve option

• Rated for up to 25 CFM
