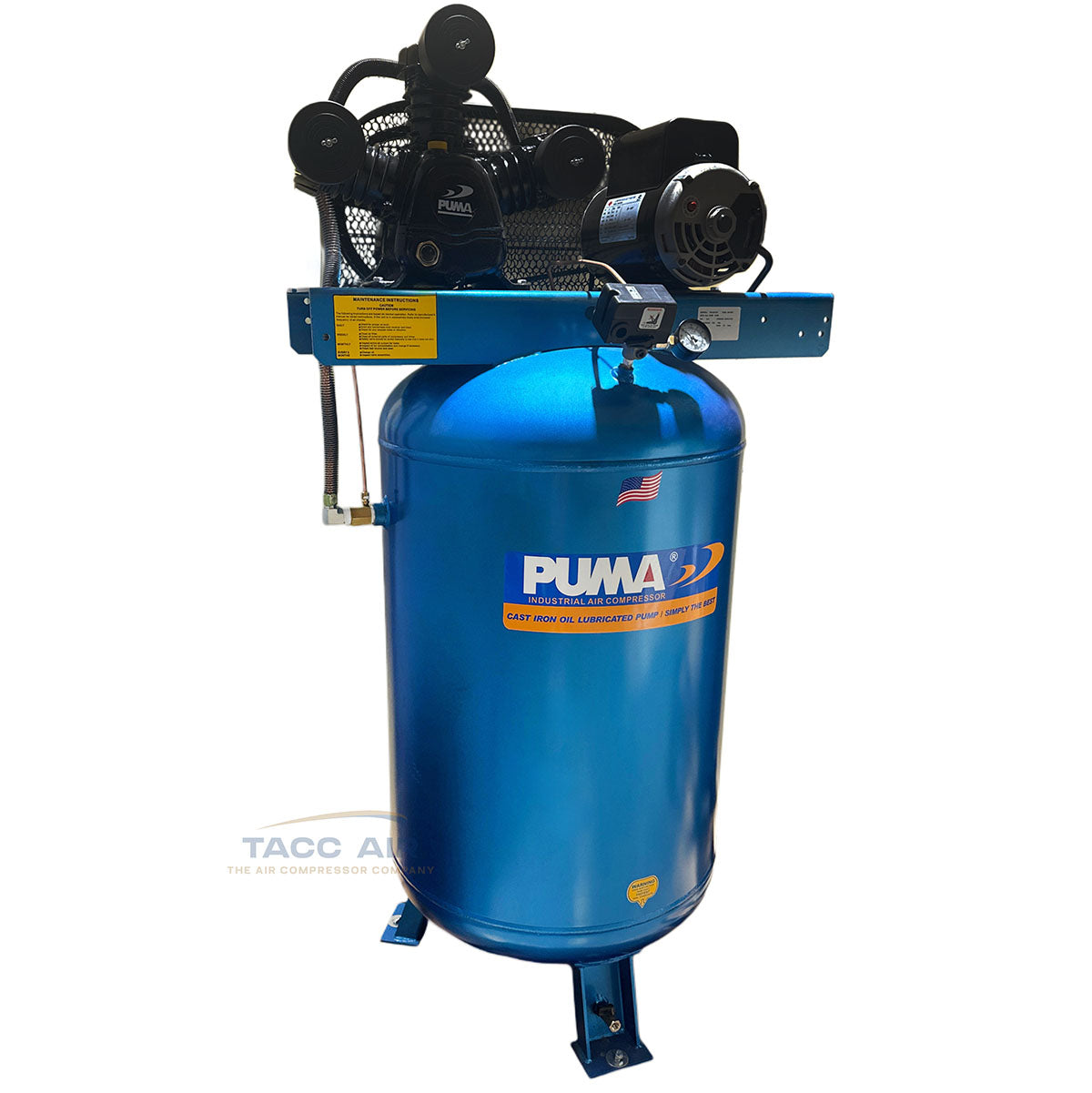

PK-6572V Puma 72 Gallon 5HP Single Stage Vertical Air Compressor 1PH 230V

Puma PK-6572V 5HP 72-Gallon Single-Stage Vertical Air Compressor – 1 Phase, 220–240V

The Puma PK-6572V is a robust, shop-grade air compressor designed for both professional and serious DIY applications. With a 72-gallon vertical tank, a durable 5HP motor, and a industrial grade cast iron single-stage pump, this unit delivers reliable performance for a variety of air tools and equipment.

Key Features:

5HP Motor: Operates at 3450 RPM with built-in overload protection. Runs on single-phase 220–240V power and does not require an external magnetic starter.

Cast Iron 3-Cylinder Pump: Designed for longevity and efficiency, running at just over 1200 RPM for cooler operation, quieter performance, and extended service life.

High CFM Output: Delivers 15.5 CFM at 90 PSI with 20 Displacement CFM, making it suitable for impact wrenches, spray guns, nailers, small sandblasters and other shop tools.

72-Gallon Vertical Tank: Maximizes floor space while providing sufficient air storage for continuous tool operation. Fitted with an easy-access manual drain.

Specifications:

• Motor: 5HP, 1 Phase, 220–240V, 23 Amp

• Pump RPM: 1230 RPM

• Motor RPM: 3450 RPM

• CFM:  15.5 CFM @ 90 PSI / 17 CFM@ 40 PSI ( 20 Displacement CFM)

• Max Pressure: 135 PSI

• Tank Size: 72-Gallon Vertical

• Dimensions: Approx. 63” H x 33.5” W x 23” D

• Weight: Approx. 305 Lbs

• Warranty: 1-Year Manufacturer Warranty

Built for consistent shop use, the Puma PK-6060V combines efficiency, durability, and practical design in a reliable vertical compressor package. Whether you're outfitting a garage or expanding your workspace, this unit provides the power and volume needed to keep your tools running strong.
