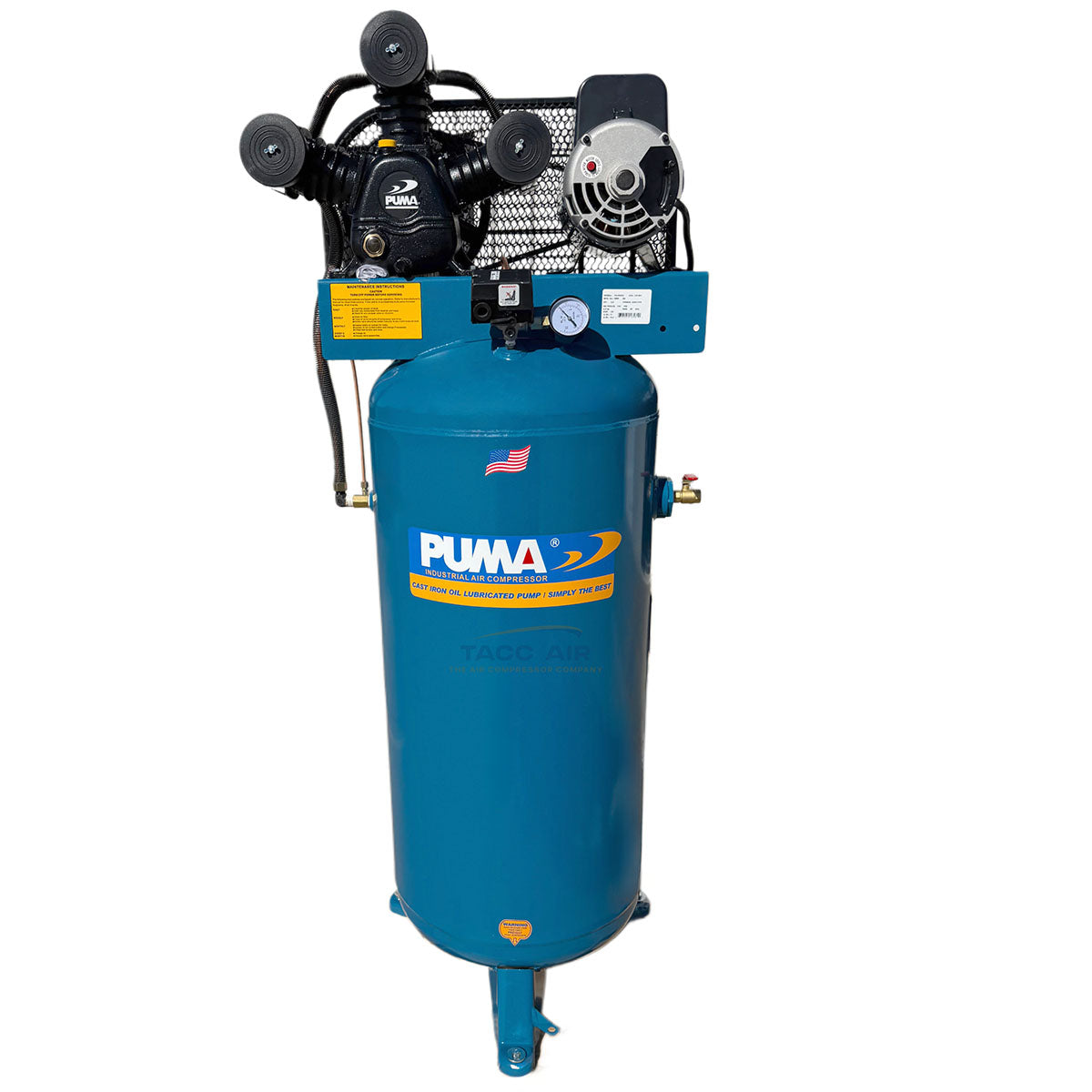

Puma PK-6560V 5HP 60 Gallon 3 cylinder Single stage Air Compressor 220-240 Volt

Puma PK-6560V 5HP 60-Gallon Single-Stage Vertical Air Compressor – 1 Phase, 220–240V

The Puma PK-6560V is a heavy-duty, shop-grade air compressor built for professional and serious DIY environments. With a 60-gallon vertical tank, durable 5HP motor, and cast-iron single-stage pump, this unit handles high-volume air tool use with ease.

Key Features:

• 5HP Motor: Operates on single-phase 220–240V power (23 Amps) and includes built-in overload protection.

• Cast Iron Single-Stage Pump: Robust cast-iron construction for long life and reliability. Runs at a low 1180 RPM for cooler operation and reduced noise.

• High CFM Output: Rated at 15.5 CFM at 90 PSI, providing ample air delivery for impact wrenches, spray guns, nailers, and other shop tools.

• 60-Gallon Vertical Tank: Maximizes air storage while occupying minimal floor space. Includes an easy-access manual drain for maintenance.

• Max Working Pressure: Up to 135 PSI for consistent, reliable performance under load.

Specifications:

• Motor: 5HP, 1 Phase, 220–240V, 23 Amp

• Pump RPM: 1180 RPM

• CFM: 15.5 CFM @ 90 PSI (Displacement CFM 20)

• Max Pressure: 135 PSI

• Tank Size: 60-Gallon Vertical

• Weight: Approx. 325 Lbs

• Warranty: 1-Year Manufacturer Warranty

Dimensions:
Height: 68.25"
Width: 30"
Depth: 20"
