Prevost 2" PPS1 9C50 Aluminum Elbow Union For PPS Compressed Air Piping System

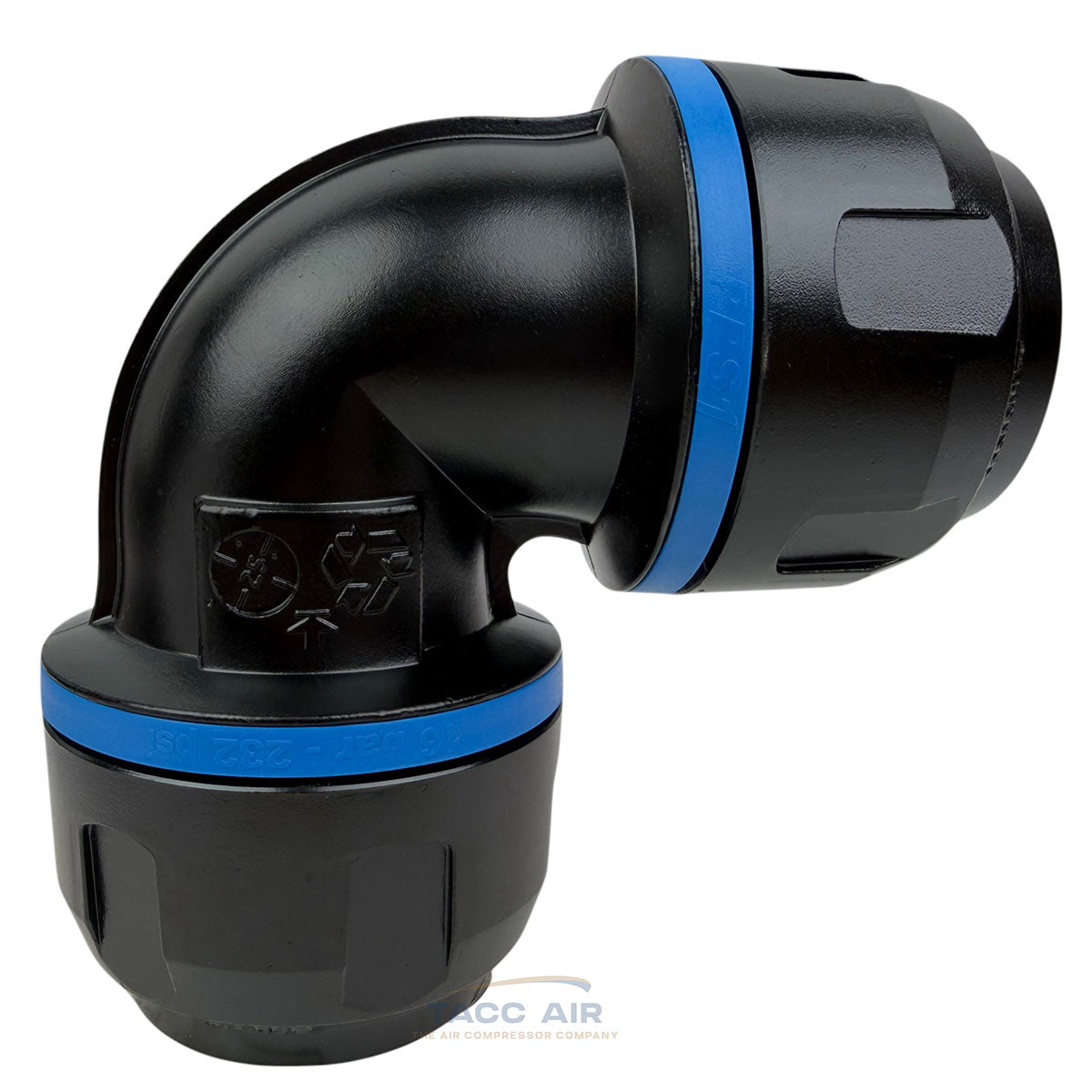

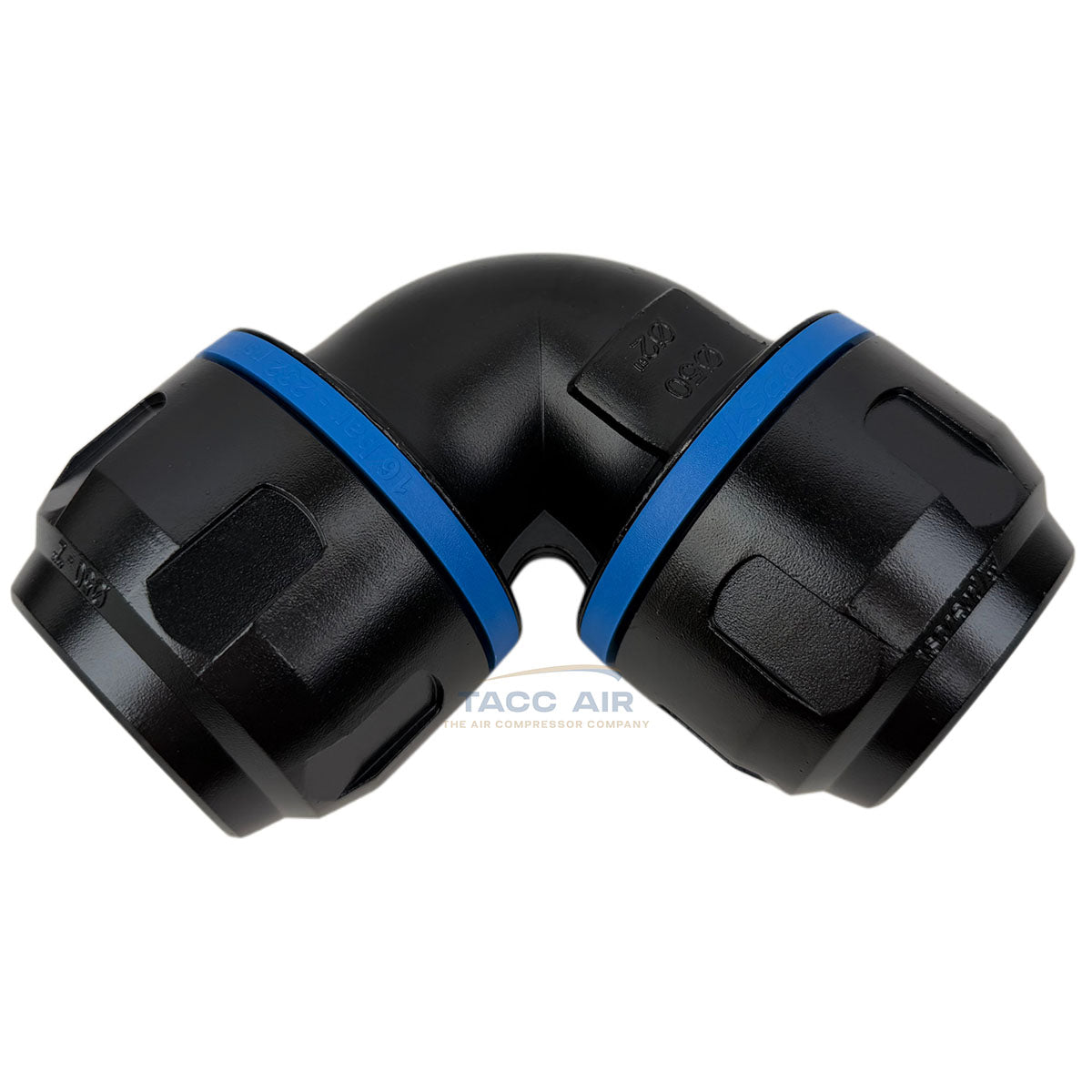

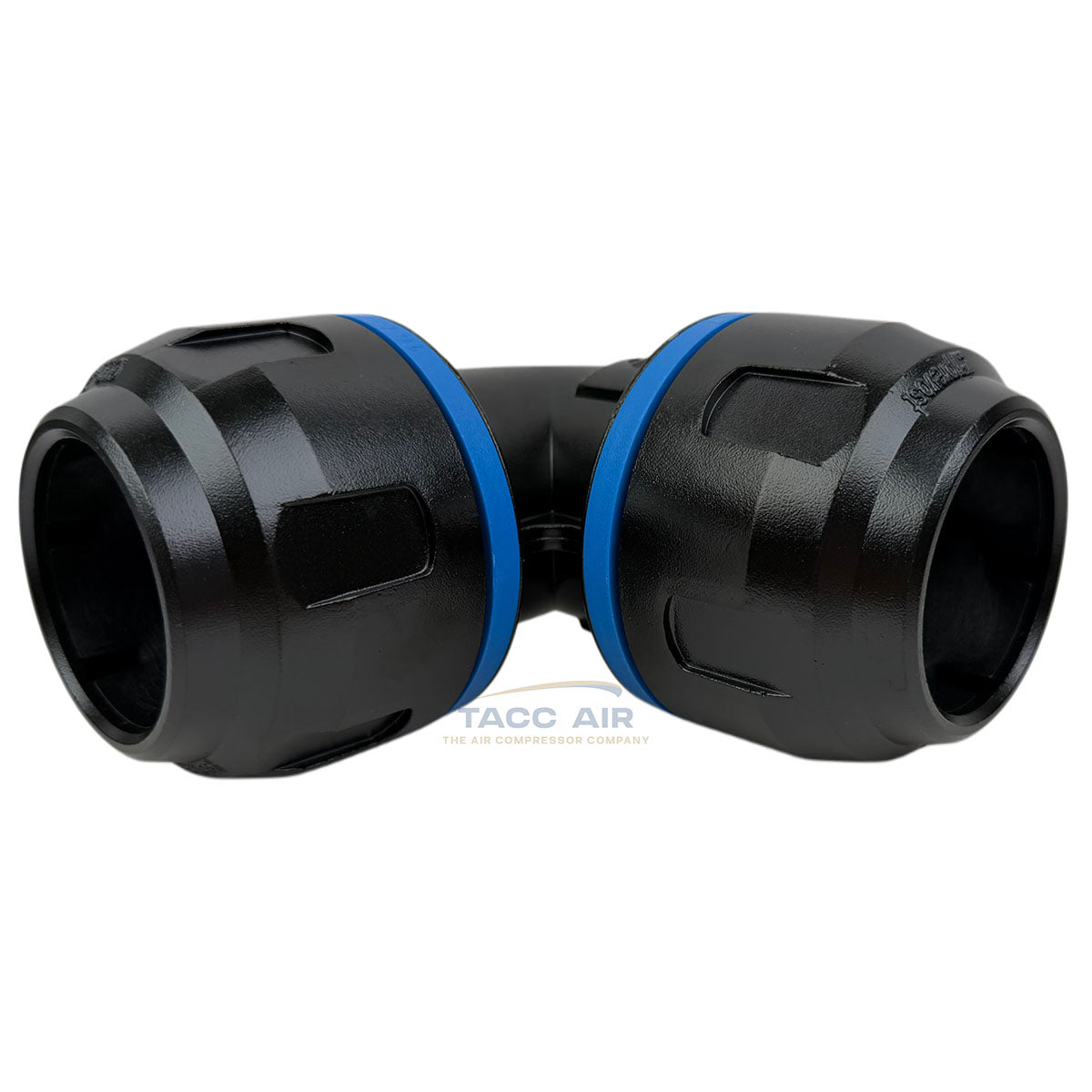

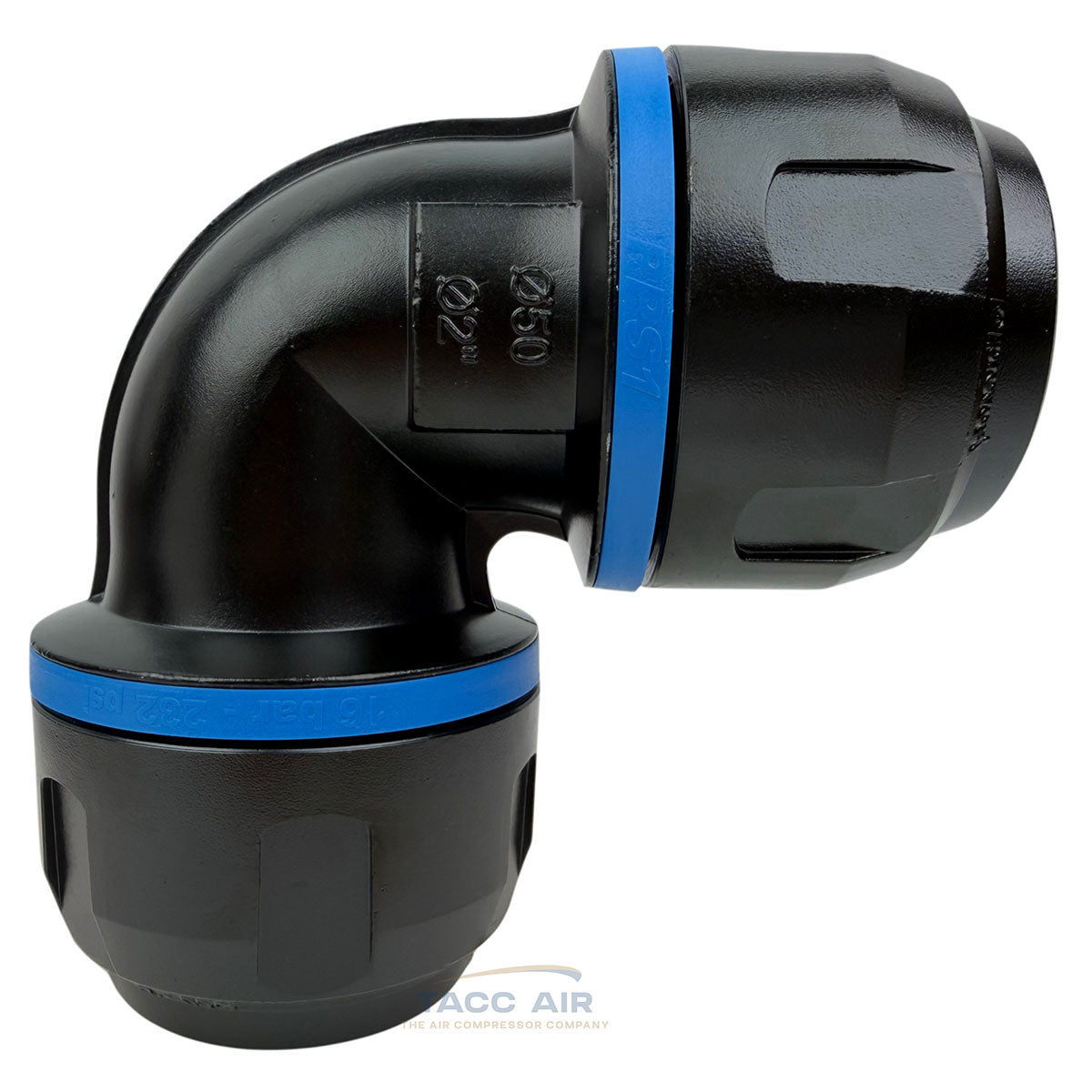

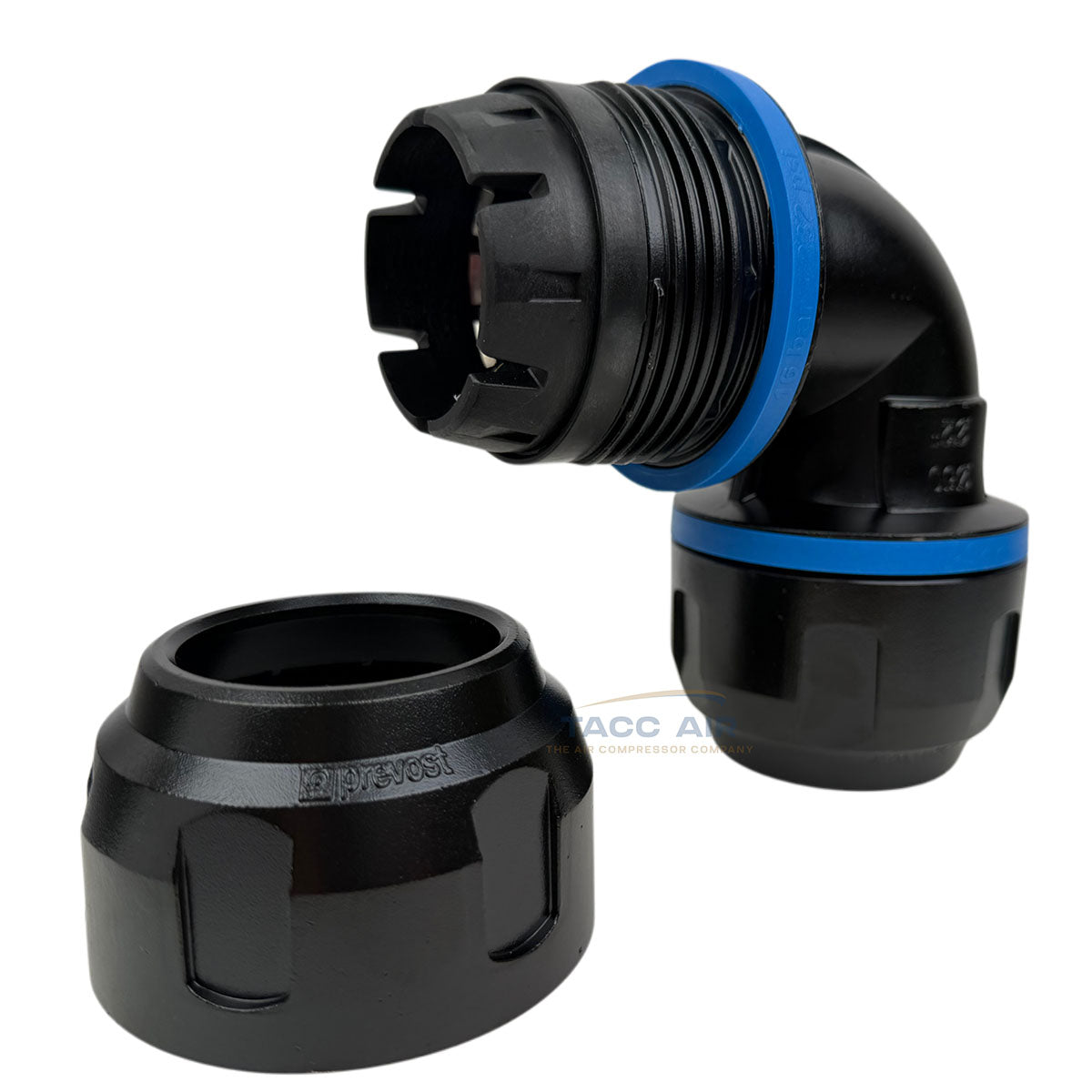

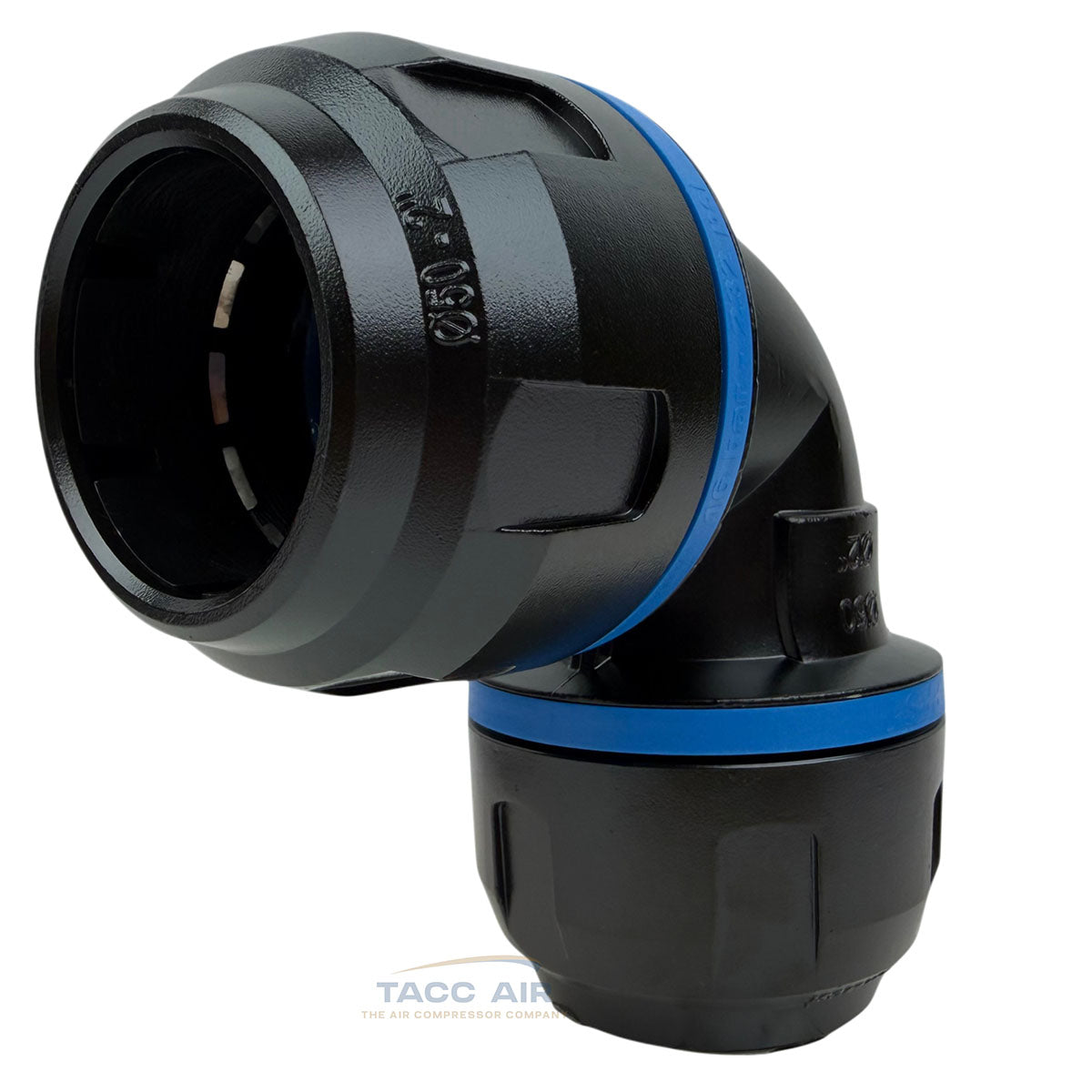

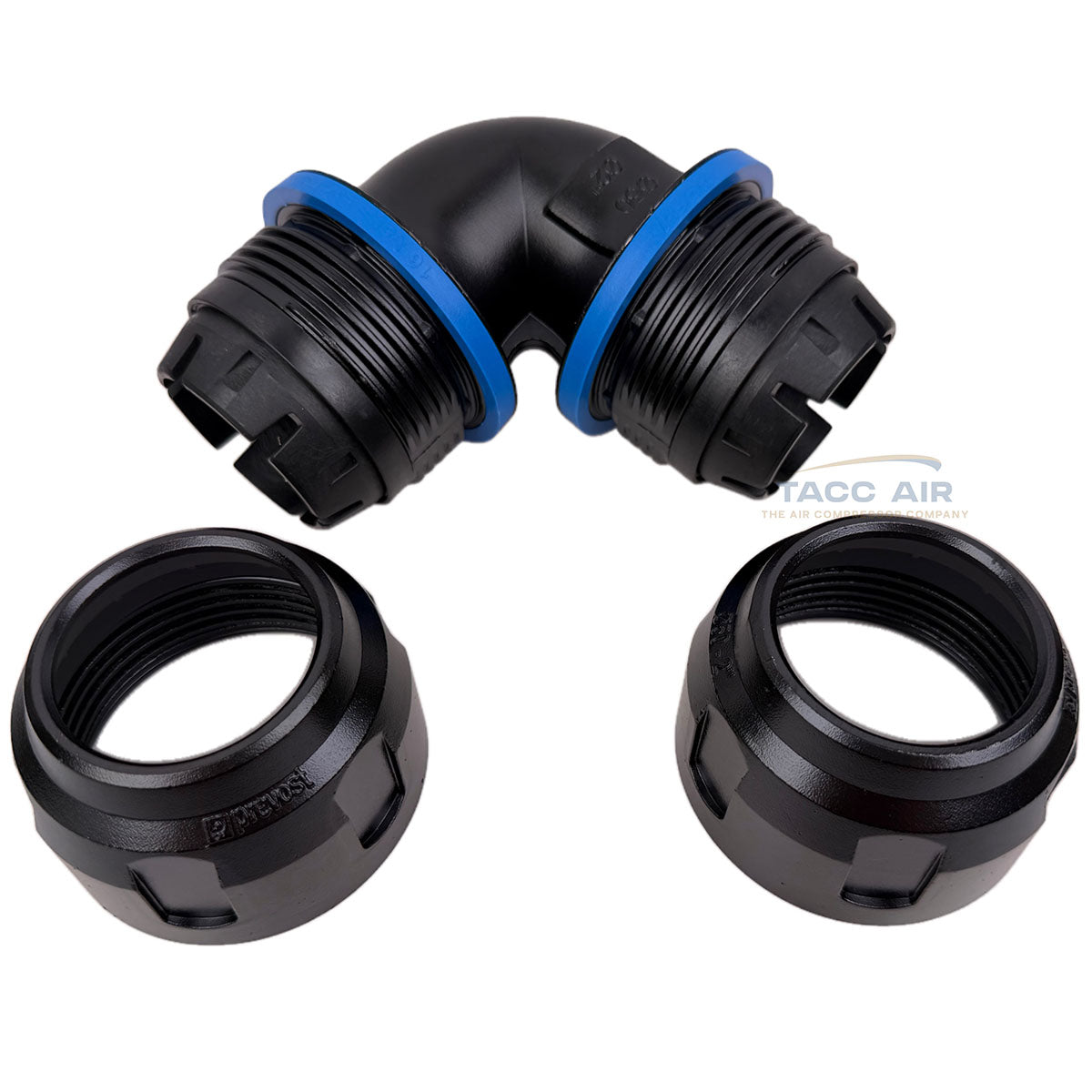

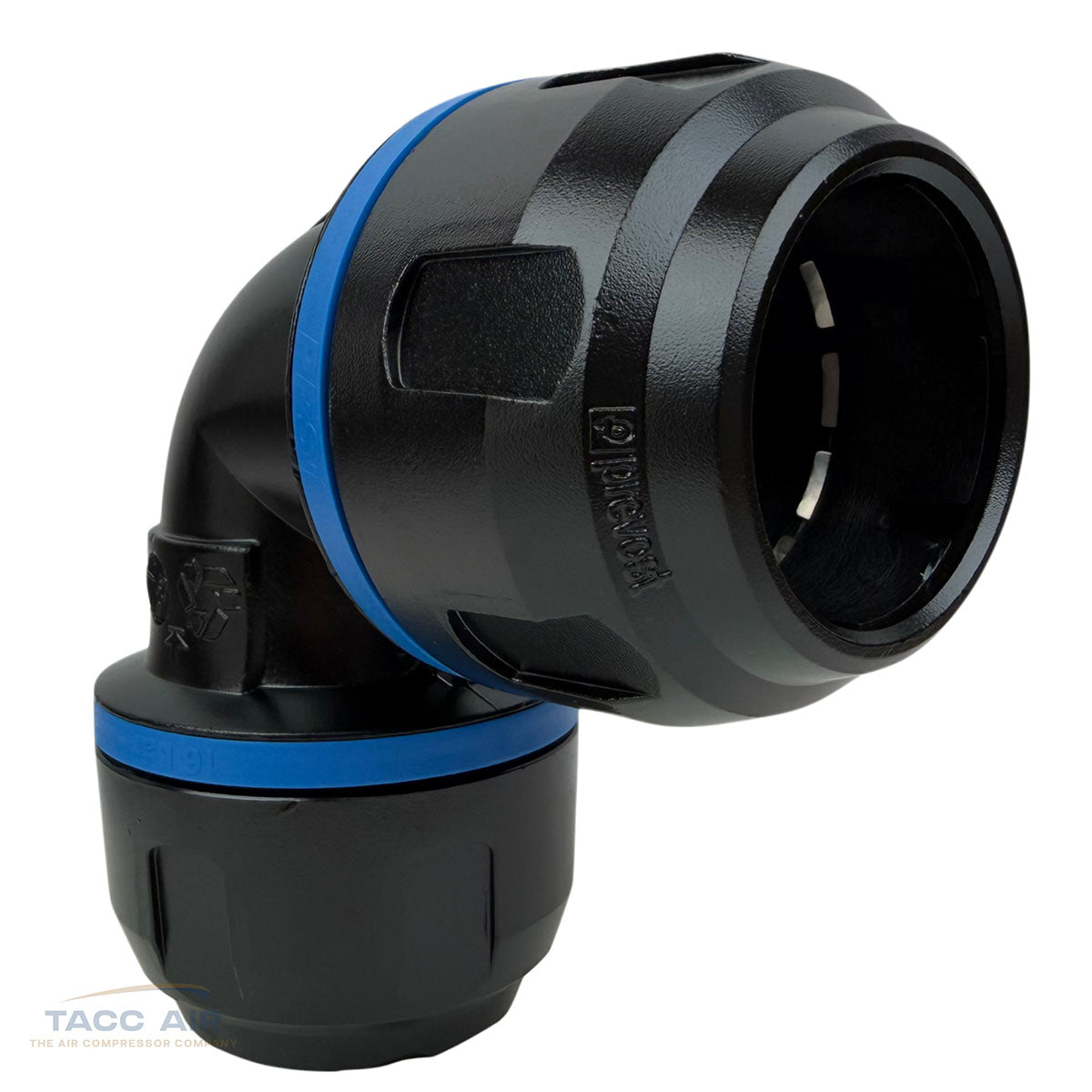

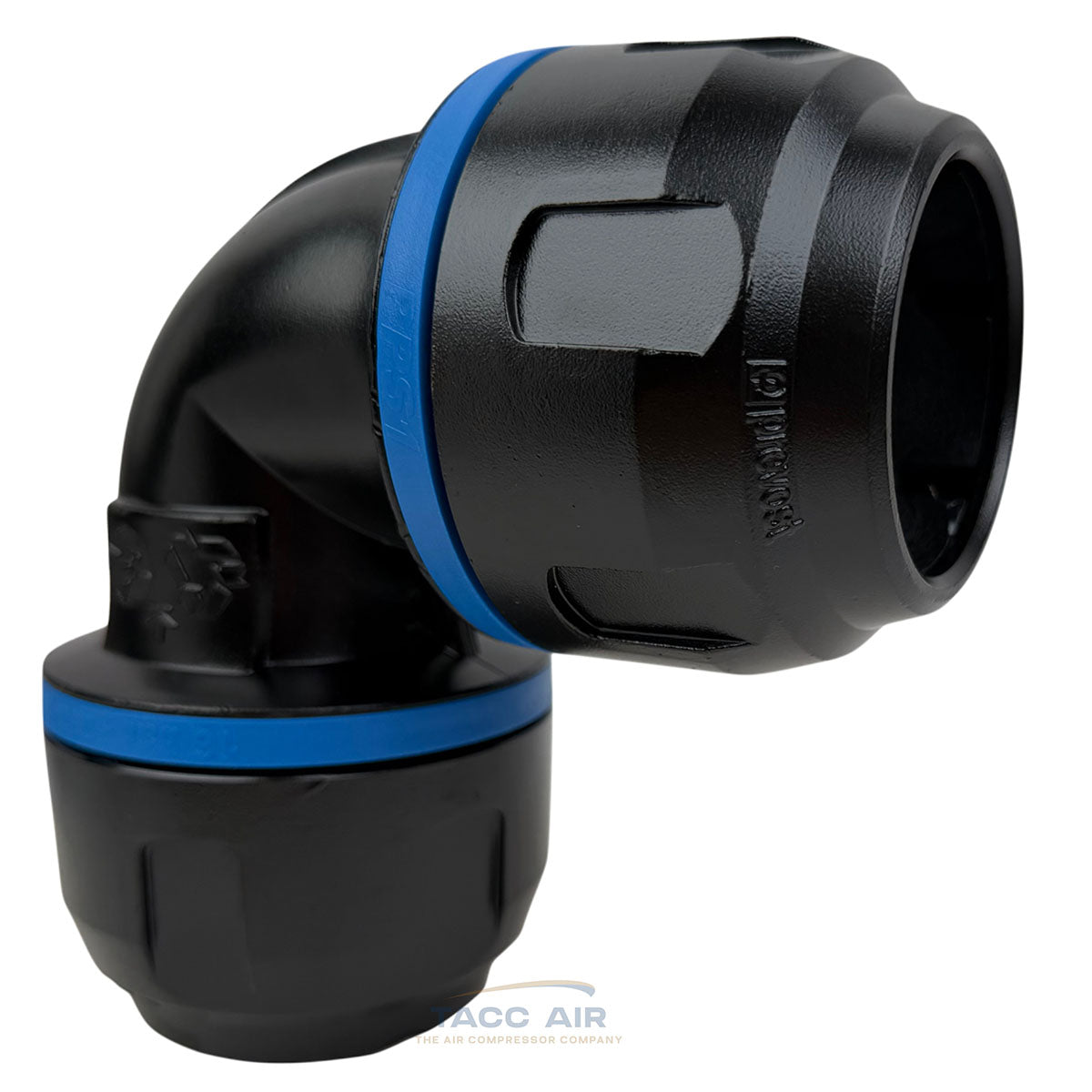

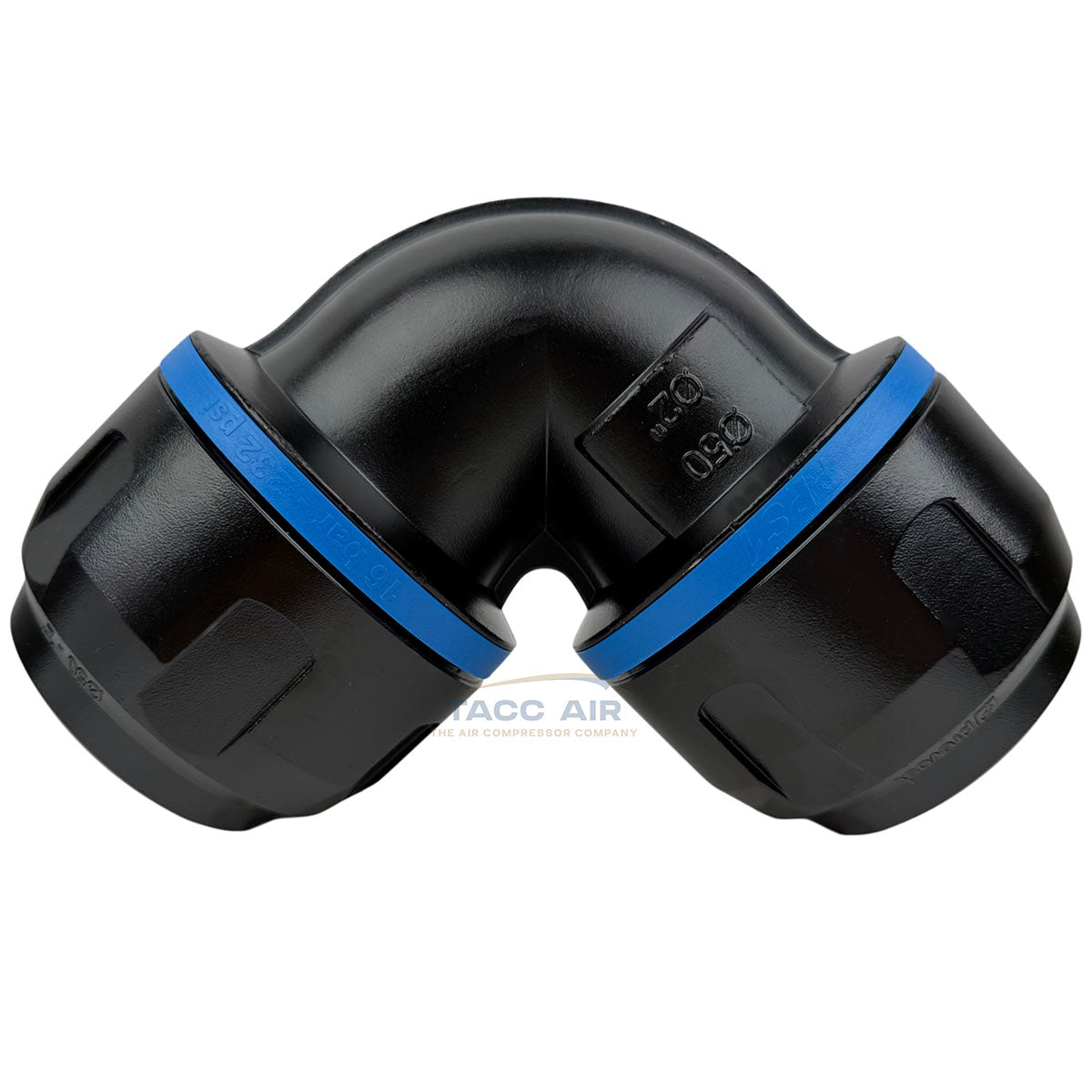

Prevost PPS1 9C50 Aluminum 90° Equal Union Elbow For 2" OD Pipe

The Prevost PPS1 9C50 90° Equal Union Elbow is a premium aluminum fitting designed to create a 90-degree directional change in 2" OD Prevost PPS aluminum compressed air piping systems. Engineered for industrial compressed air applications, this elbow provides a secure, leak-free connection while allowing efficient routing of air lines around equipment, walls, ceilings, and other obstacles. Its lightweight aluminum construction offers excellent corrosion resistance, long service life, and simplified installation.

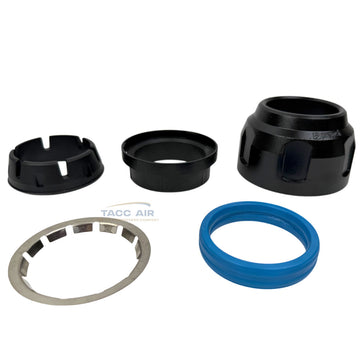

One of the standout features of the Prevost PPS system is its proprietary double-seal O-ring design. Unlike a standard O-ring, this specially molded one-piece seal features two sealing lips that create dual sealing surfaces within the fitting. This innovative design significantly reduces the possibility of air leaks, helping maintain system efficiency while minimizing energy loss and operating costs.

Features & Benefits

• Designed for 2" (50 mm) OD Prevost PPS aluminum pipe
• Creates a smooth 90-degree directional change in piping systems
• High-strength, lightweight aluminum construction
• Corrosion-resistant for long service life
• Proprietary dual-seal molded O-ring design for exceptional leak protection
• Ideal for routing compressed air systems around corners and obstacles
• Engineered for compressed air, vacuum, and inert gas applications
• Maintains optimal airflow with minimal pressure loss
• Fast and straightforward installation

Specifications

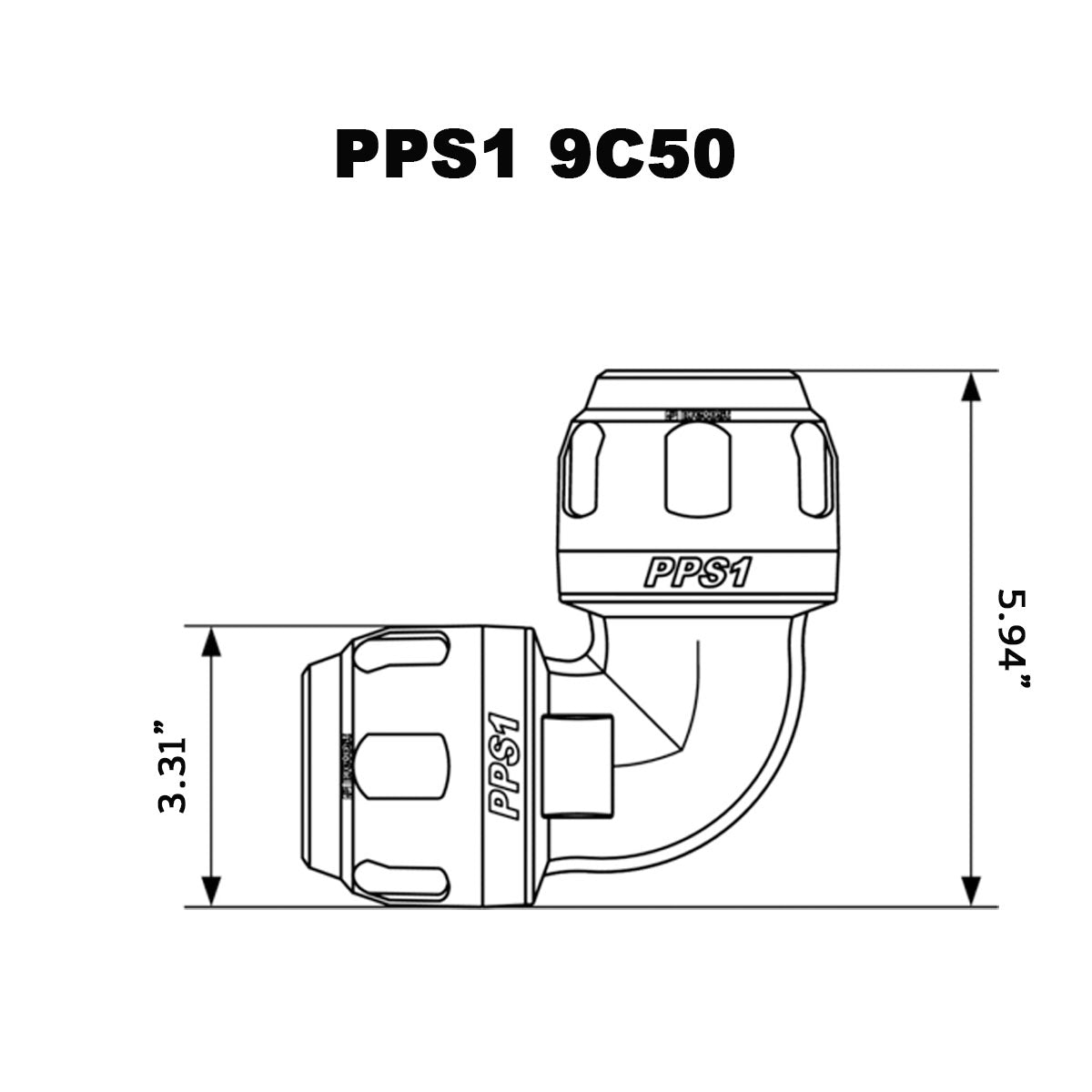

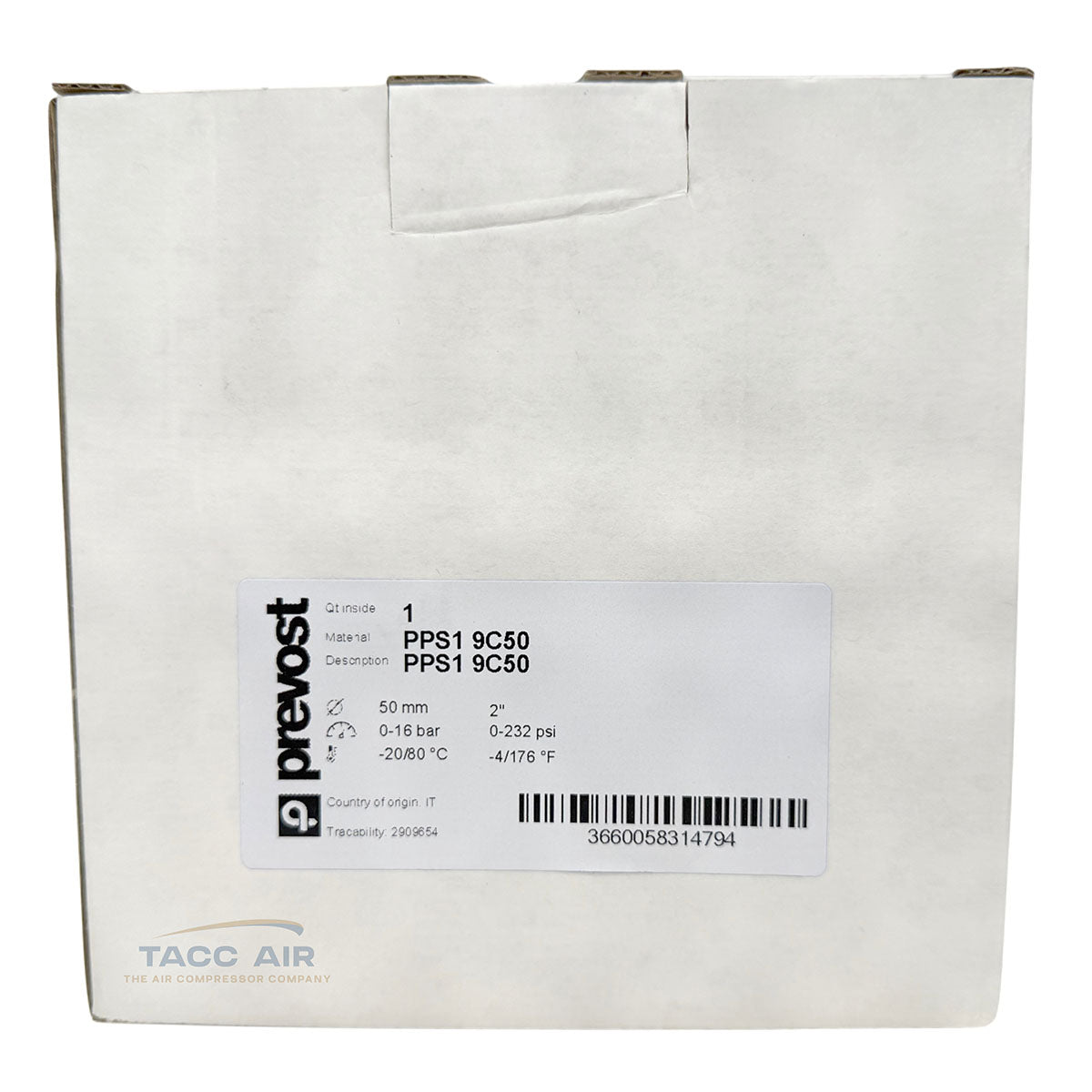

• Part Number: PPS1 9C50
• Type: 90° Equal Union Elbow
• Pipe Size: 2" OD (50 mm)
• Material: Aluminum
• Maximum Working Pressure: 232 PSI (16 Bar)
• Operating Temperature Range: -4°F to 176°F (-20°C to 80°C)
• Weight: 2.01 lbs (.913 kg)

Built for Reliable Performance

Manufactured as part of the renowned Prevost PPS aluminum piping system, the PPS1 9C50 90° Equal Union Elbow is designed to deliver dependable performance in demanding industrial environments. The combination of corrosion-resistant aluminum construction and innovative dual-seal O-ring technology helps ensure a durable, airtight connection that remains reliable for years of service while providing efficient system routing.

Note: This fitting is specifically designed for use with Prevost PPS aluminum compressed air piping systems and is not compatible or warrantied with other piping systems.

Installation Note

Proper installation of the Prevost PPS1 9C50 90° Equal Union Elbow requires specialized tools, including the PPS1 CLE50 Spanner Wrench, PPS CLESTD Neutral Hook Spanner, assembly gel, and a torque wrench. These fittings must be tightened to specific torque values to ensure a secure, leak-free connection and prevent damage to the fitting or seal. For complete installation procedures, required torque specifications, and best practices, please refer to the official Prevost PPS piping installation instructions.
