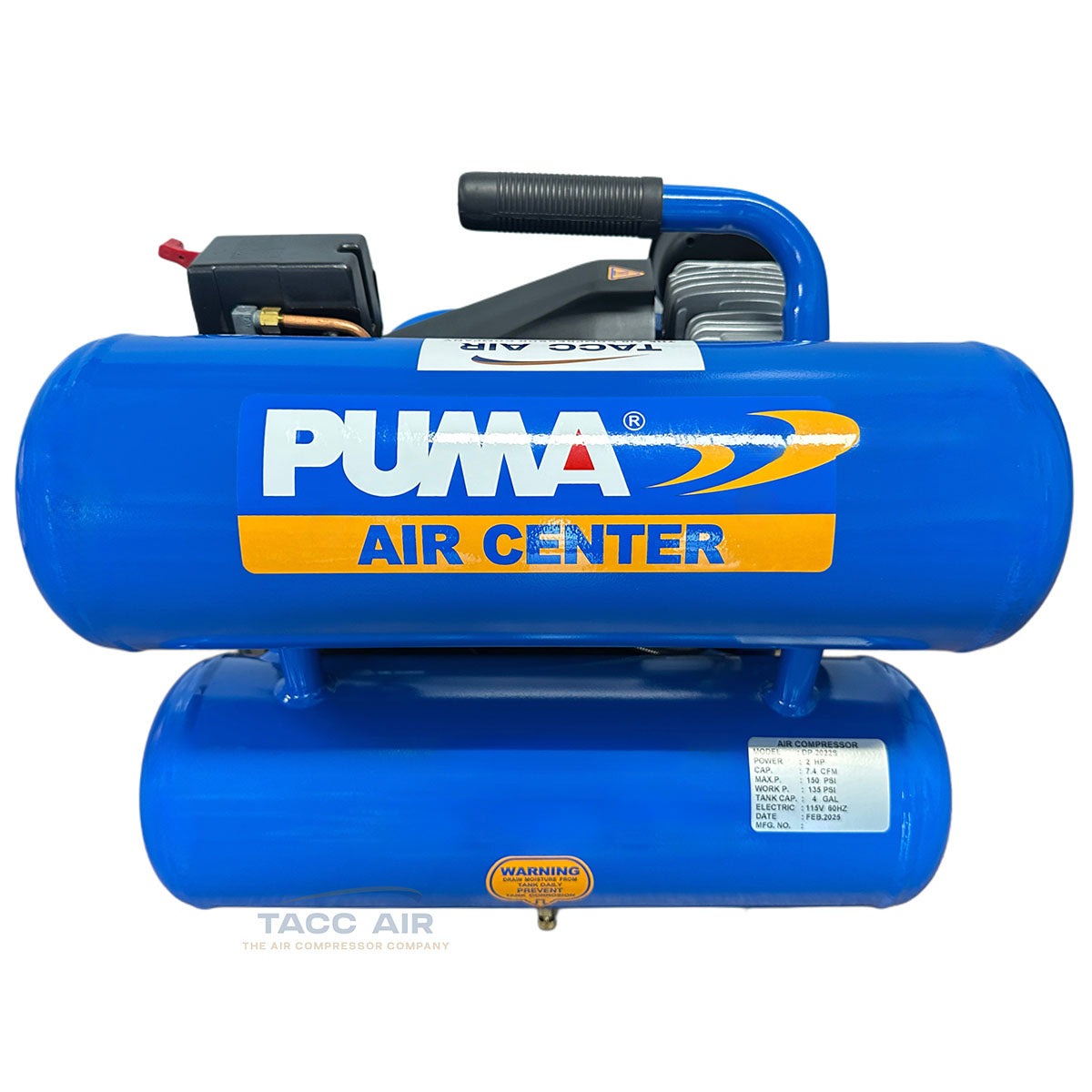

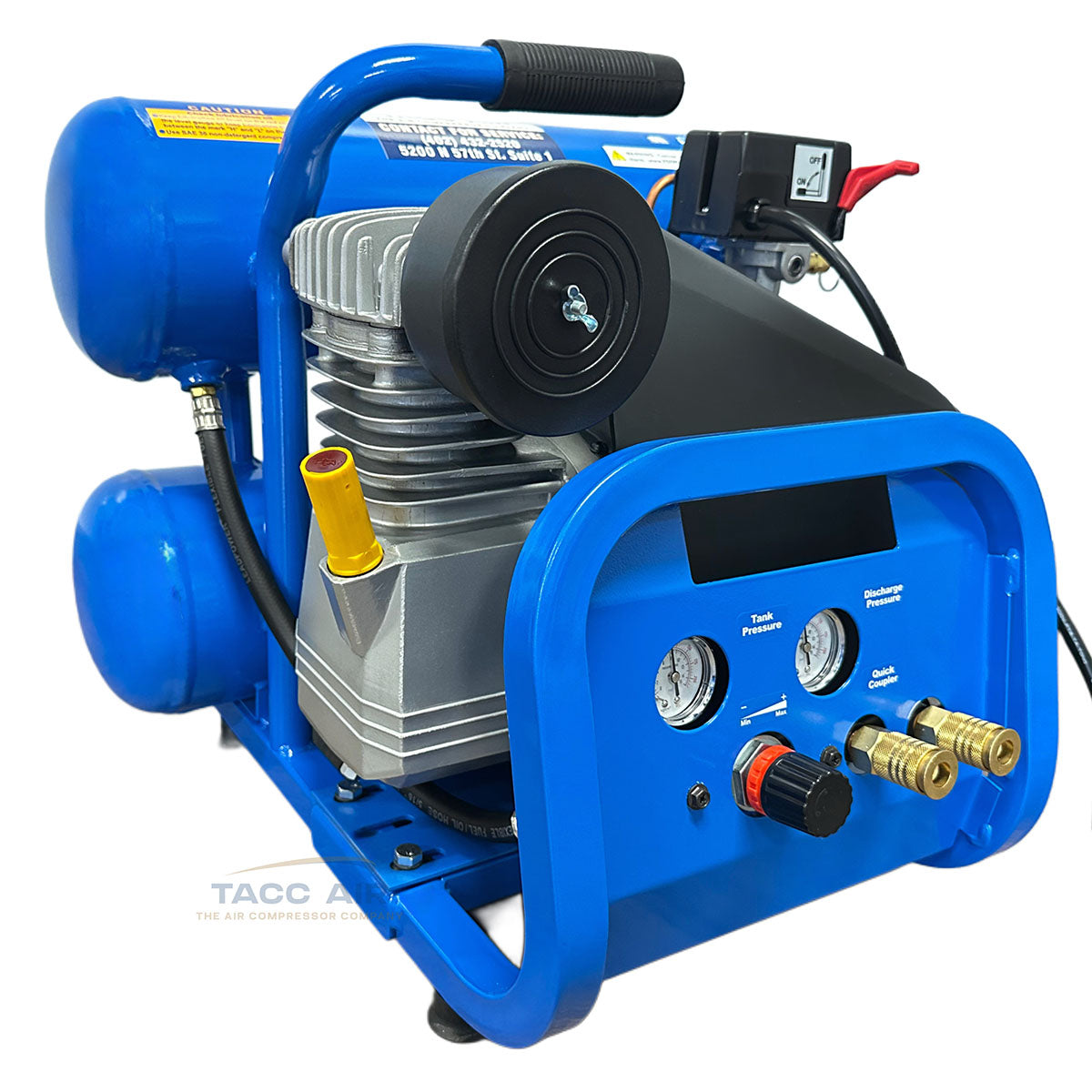

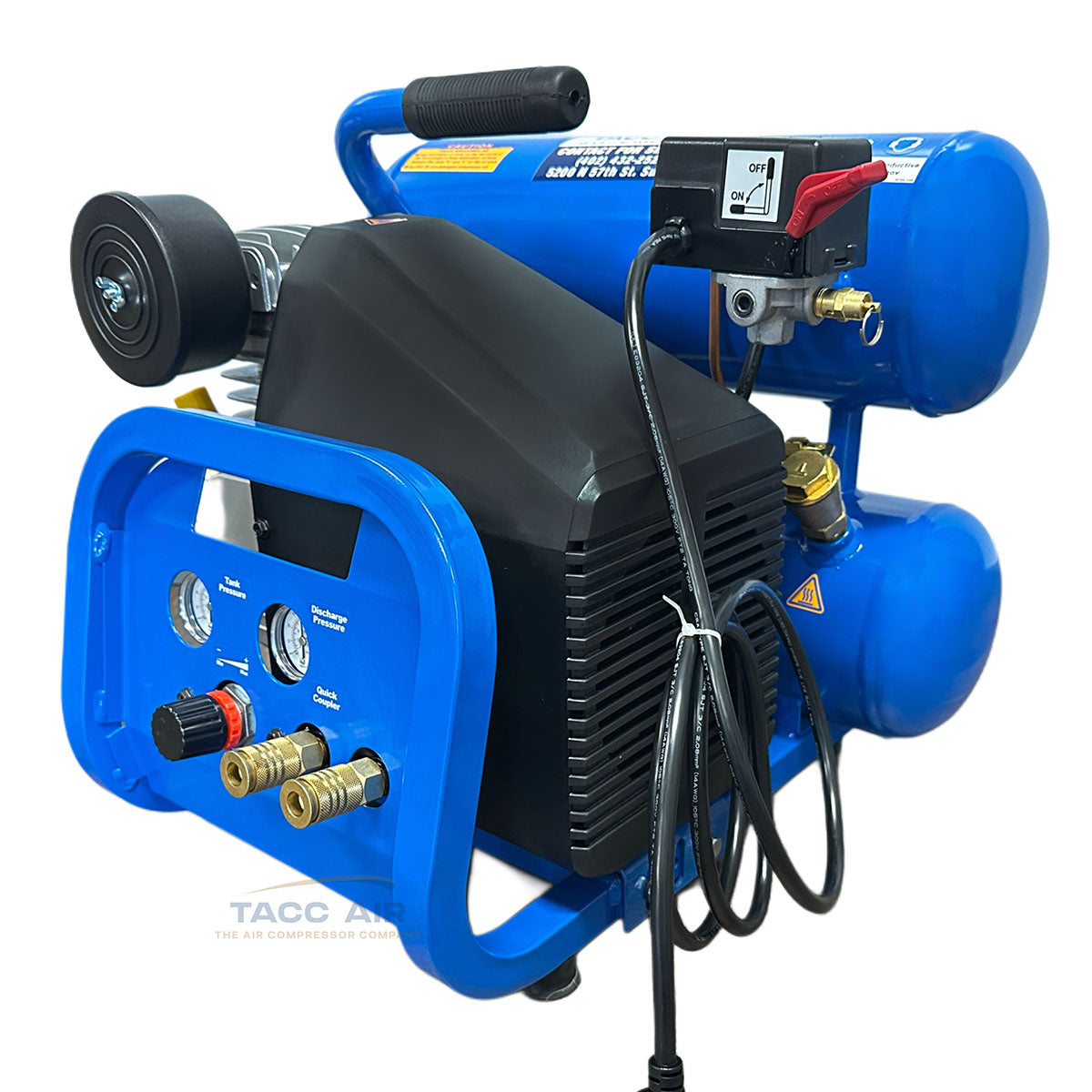

Puma 2HP 4-Gallon Twin Stack Construction Carry Type Compressor DP2022S

Puma DP2022S 2 HP 4-Gallon Twin Stack Portable Air Compressor

The Puma DP2022S is a compact, job-site-ready air compressor built for contractors and professionals who need dependable air power in a portable design. With its oil-lubricated pump, twin 2-gallon tanks, and durable construction, this unit delivers reliable performance for nailers, staplers, and other pneumatic tools.

Features

Compact and Portable Design
Twin-stack configuration provides excellent stability and easy transport between job sites.

Durable Oil-Lubricated Pump
Cast-iron cylinder sleeve with aluminum pump body ensures cooler operation, longer life, and consistent performance under load.

Powerful Output
Displacement rated at 7.4 CFM, producing 6.0 CFM @ 40 PSI and 4.6 CFM @ 90 PSI, with a maximum working pressure of 135 PSI—ideal for finish work and general pneumatic use.

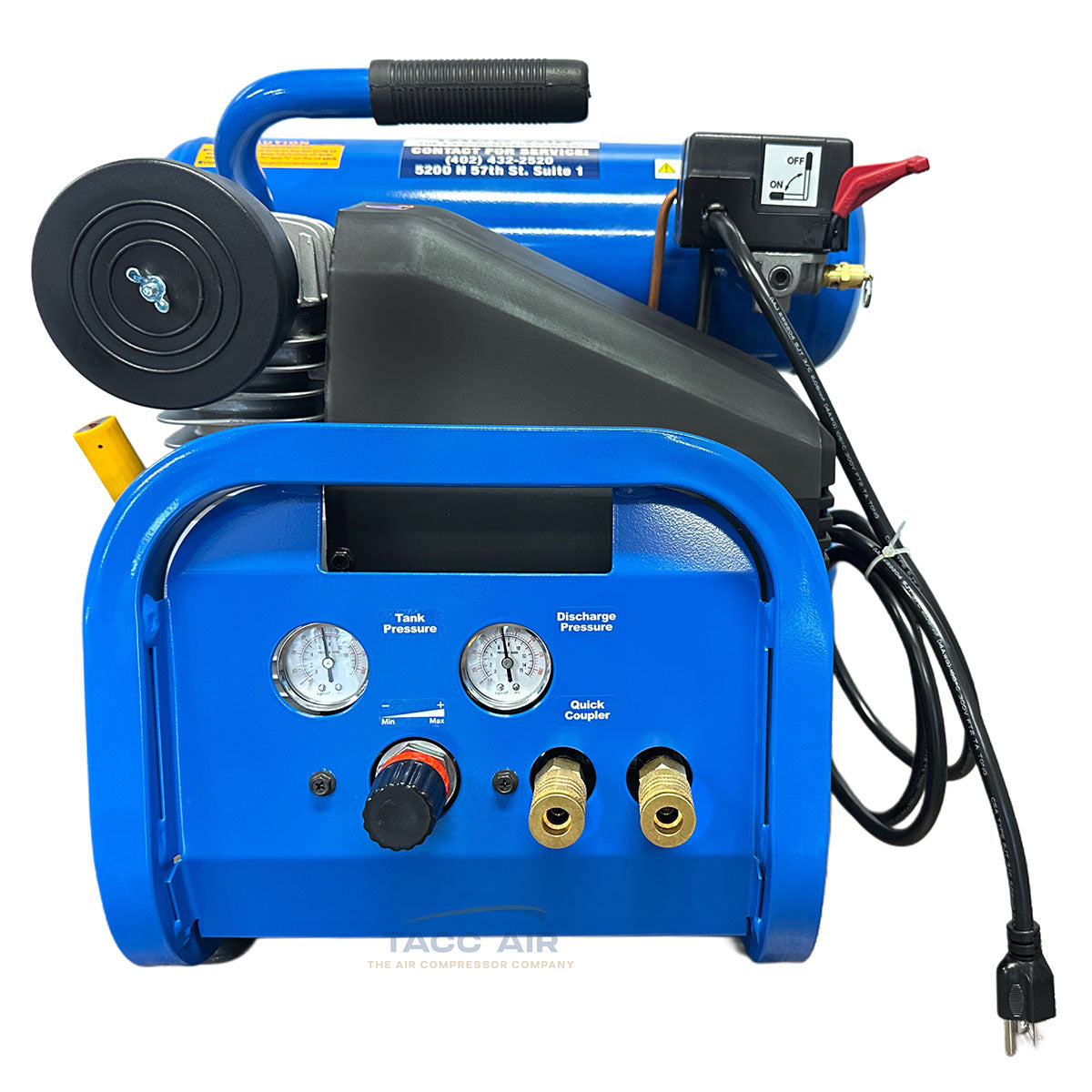

Dual Quick-Connect Outlets
Allows two tools to run at once for increased productivity on the job.

Reliable Motor Protection
Features a 115V single-phase induction motor with built-in overload protection for safe, trouble-free operation.

Low Maintenance
Easy-access oil fill and dipstick, plus replaceable intake filter element for simple upkeep.

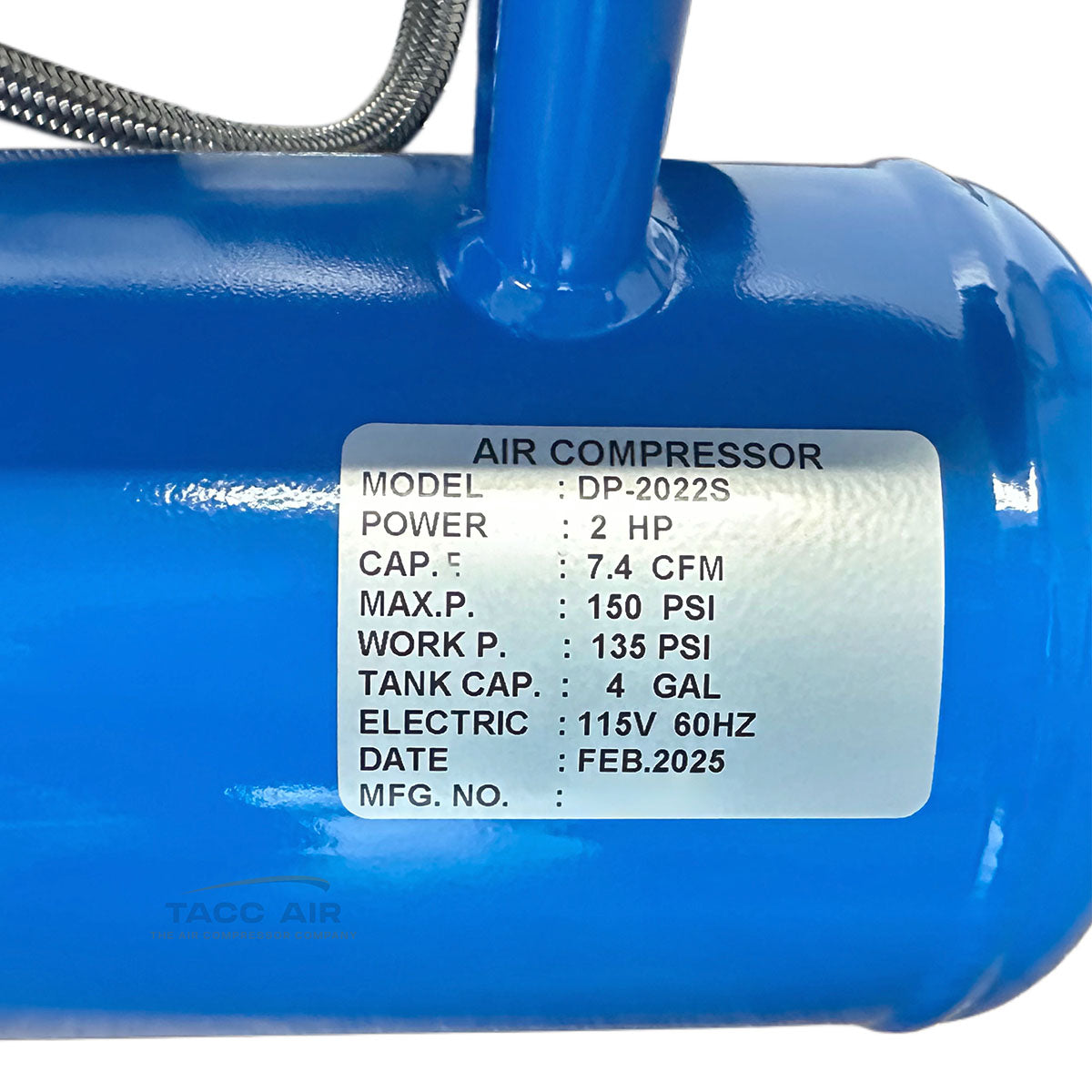

Specifications

Motor: 2 HP, Single Phase
Displacement CFM: 7.4
Delivered CFM: 6.0 @ 40 PSI / 4.6 @ 90 PSI
Voltage: 115V (15A)
Tank Capacity: 4 Gallons (Twin 2-Gallon Tanks)
Pump Type: Oil-Lubricated, Cast Iron Cylinder Sleeve
Max Pressure: 135 PSI
Drive Type: Direct Drive
Weight: Approx. 70 Lbs
Outlets: Dual Quick-Connect Couplers
Portability: Compact Twin-Stack with Carry Handle
Noise Level: Lower RPM operation for quieter performance

Built to Perform

If you’re looking for a durable, portable air compressor that delivers reliable performance for everyday contractor or shop use, the Puma DP2022S is a proven choice. Its solid construction, efficient design, and trusted Puma quality make it a standout option in its class.
