3 HP Air Compressor Pump Single Stage 2 Cylinder V Style 12.7 CFM Replacement

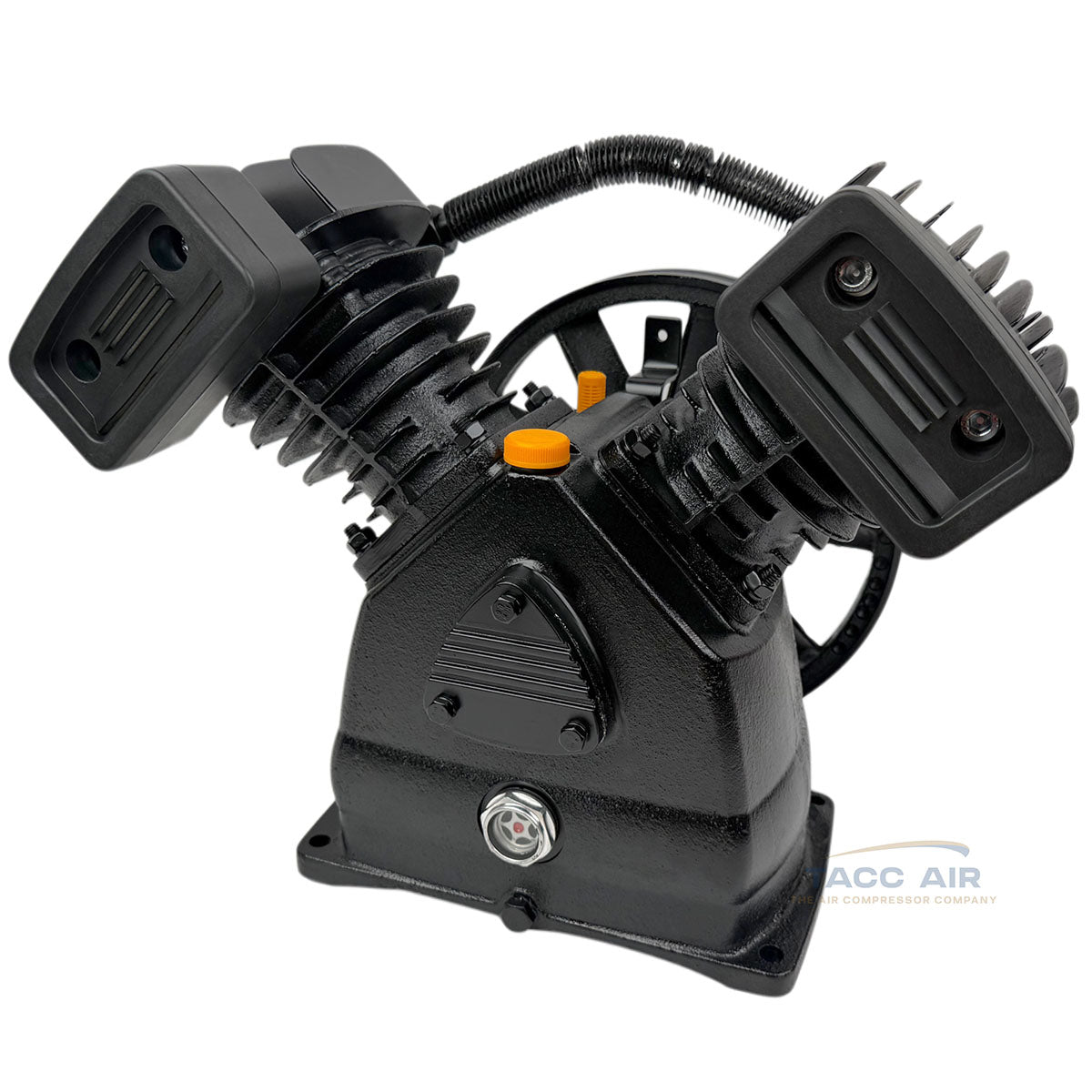

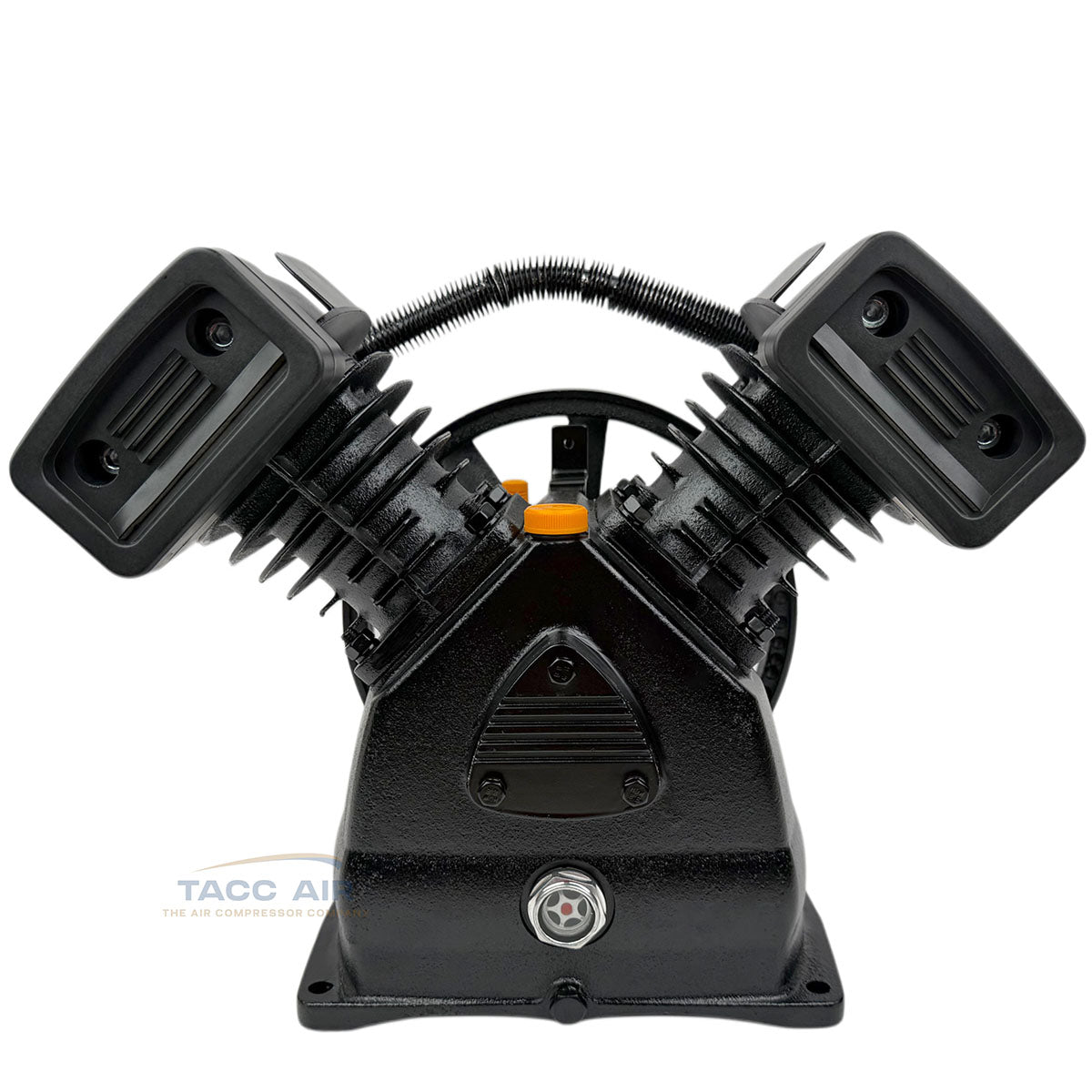

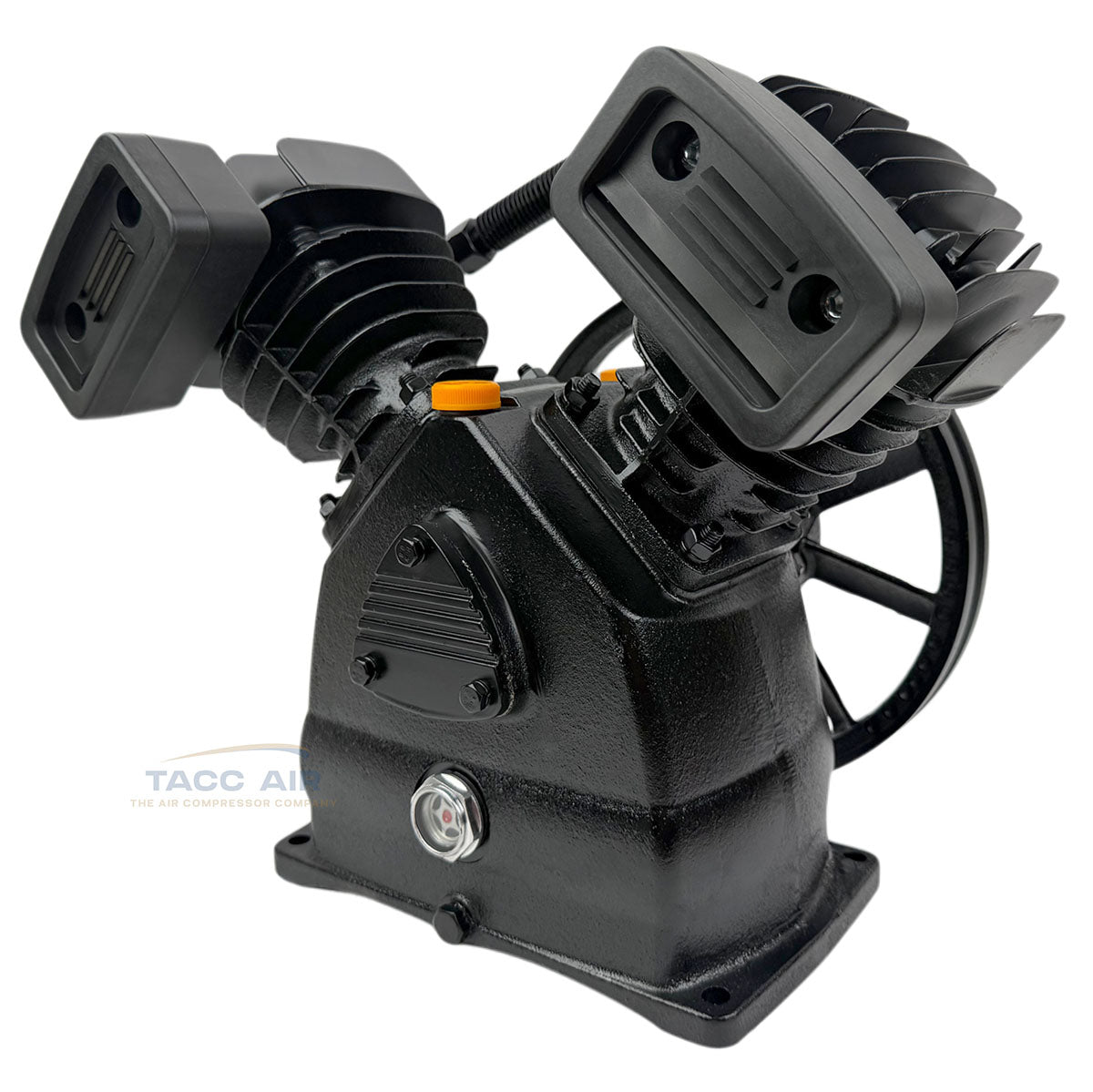

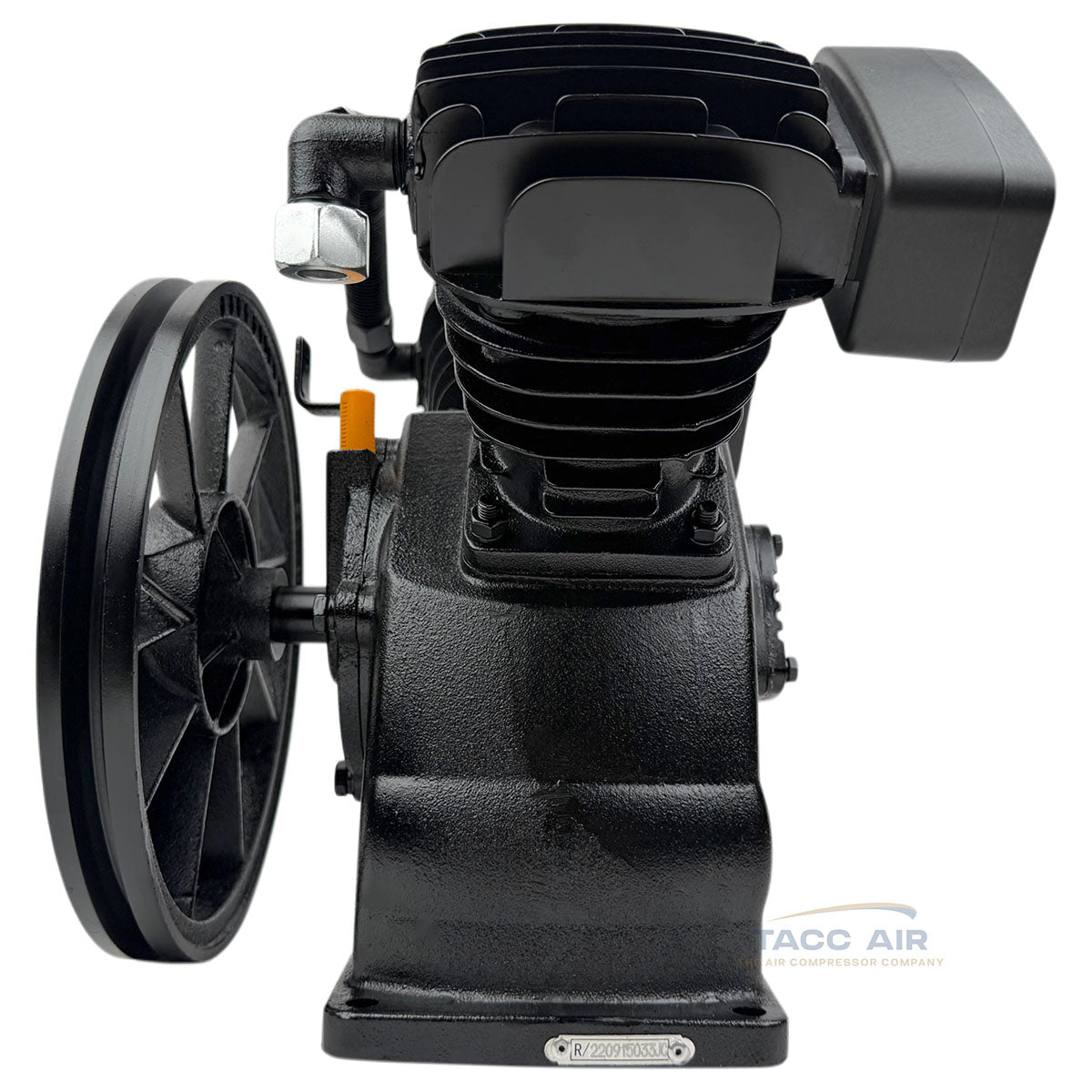

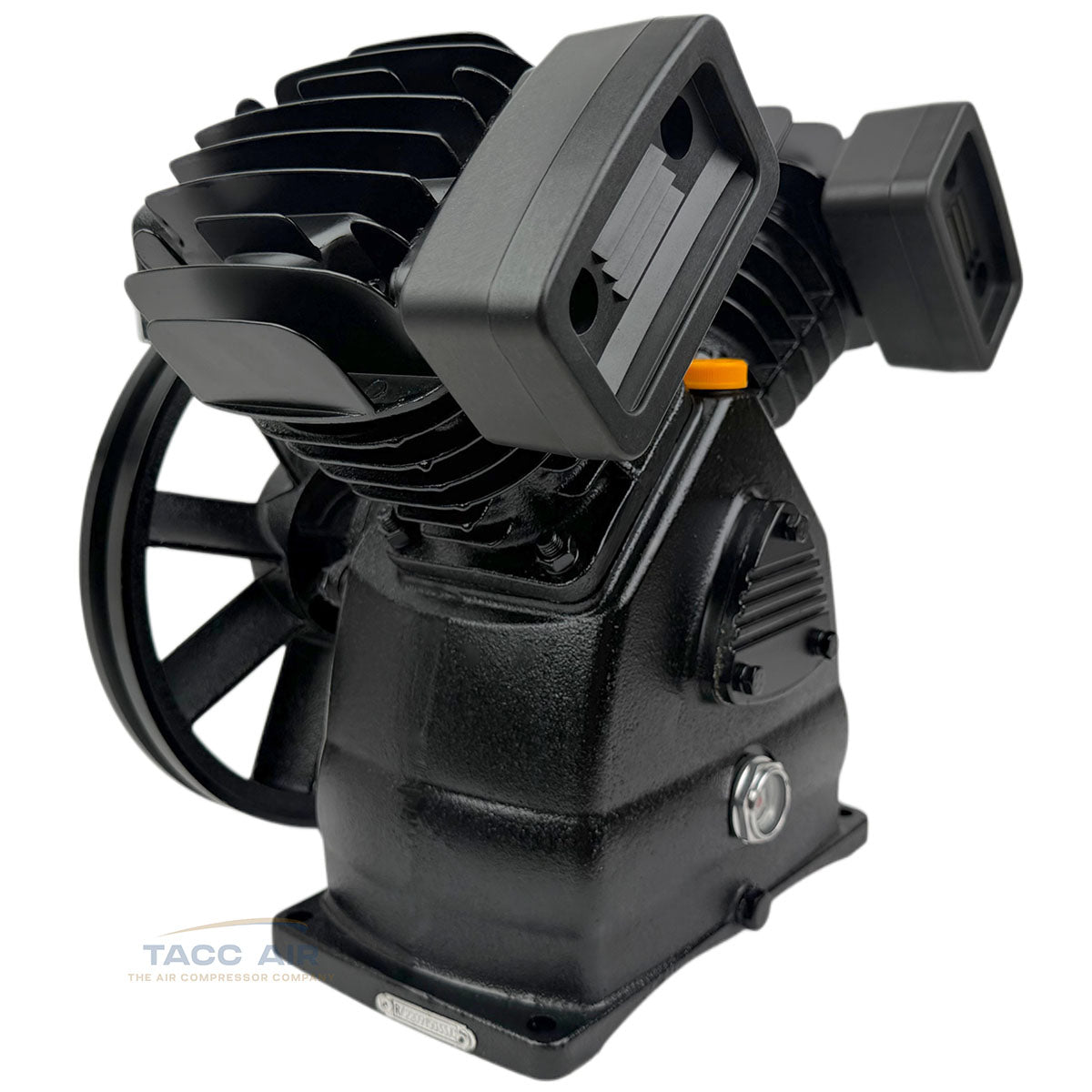

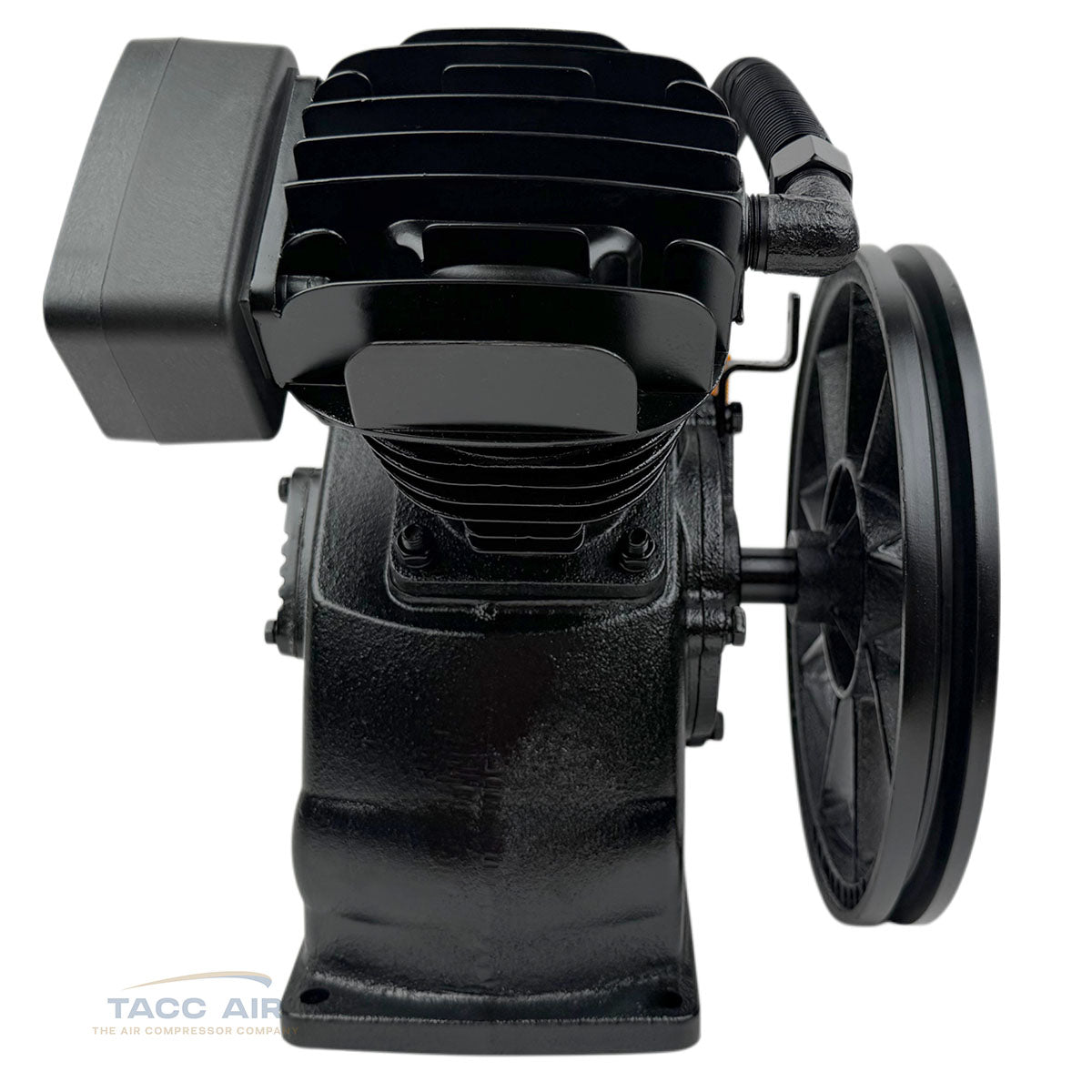

3 HP Single Stage Cast Iron Air Compressor Pump – 12.7 CFM V-Twin Replacement Pump

Bring your air compressor back to life with this heavy-duty 3 HP V-Twin single-stage replacement pump. Built with durable cast iron cylinders and a cast iron crankcase, this pump is designed to provide years of dependable service in home garages, farms, automotive shops, and light industrial applications.

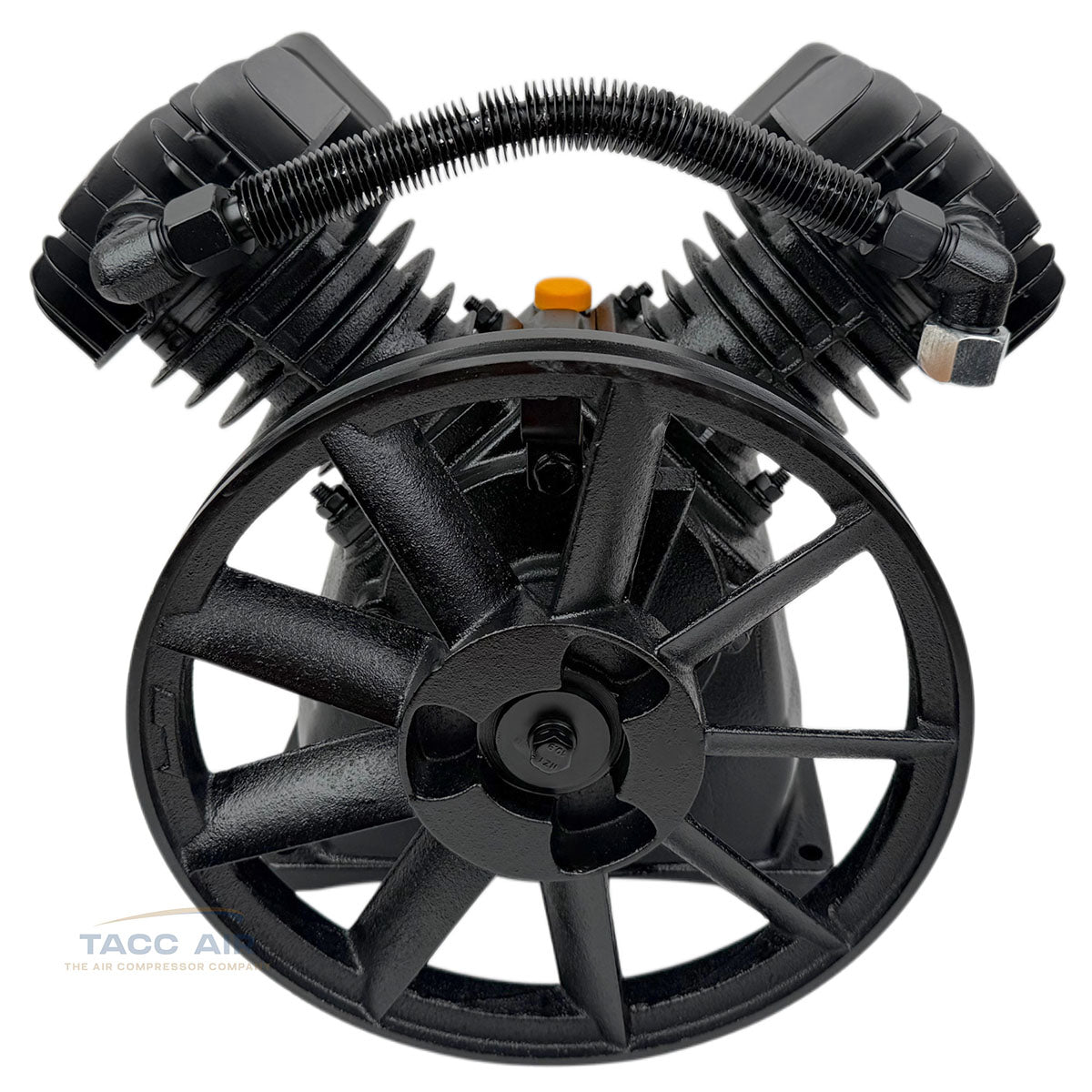

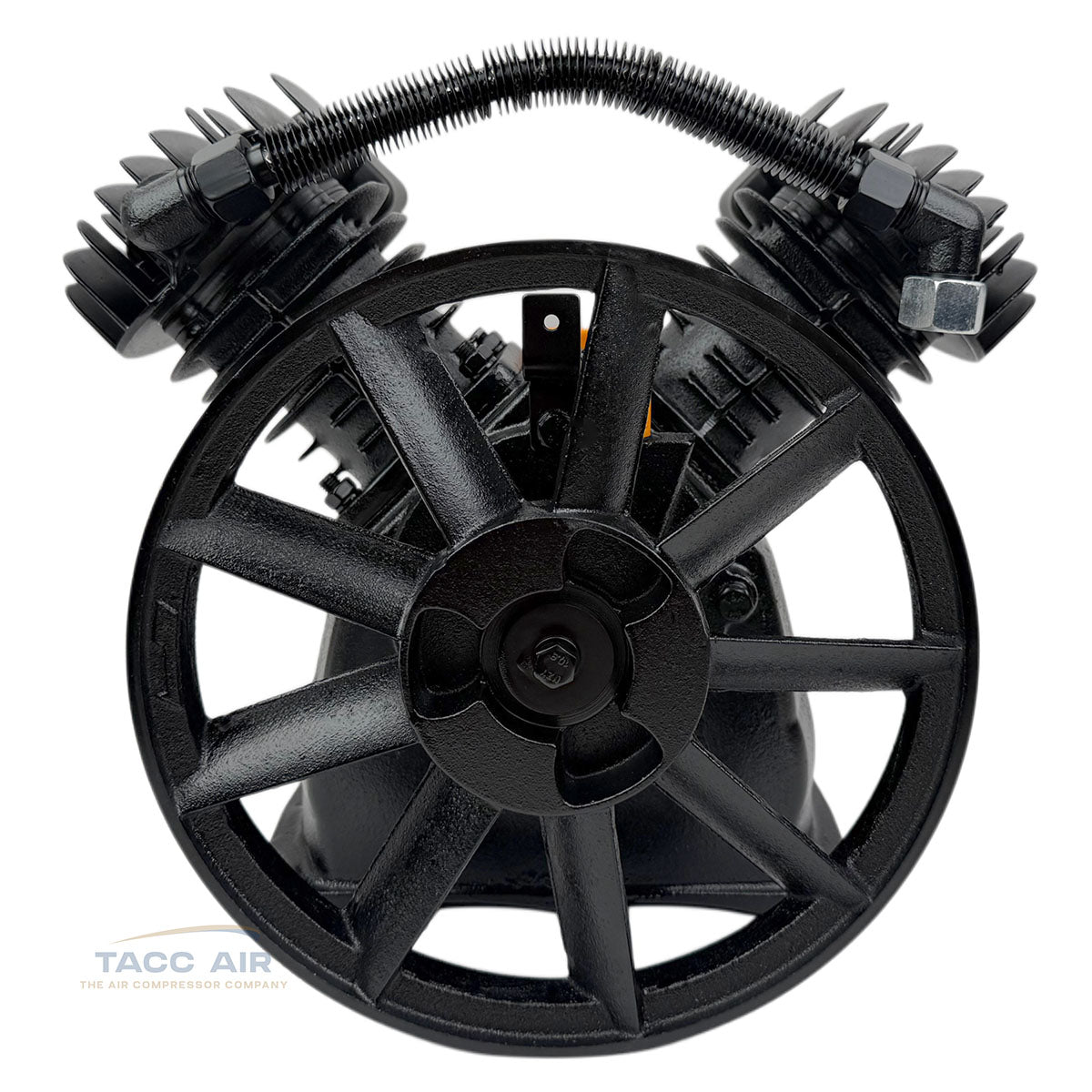

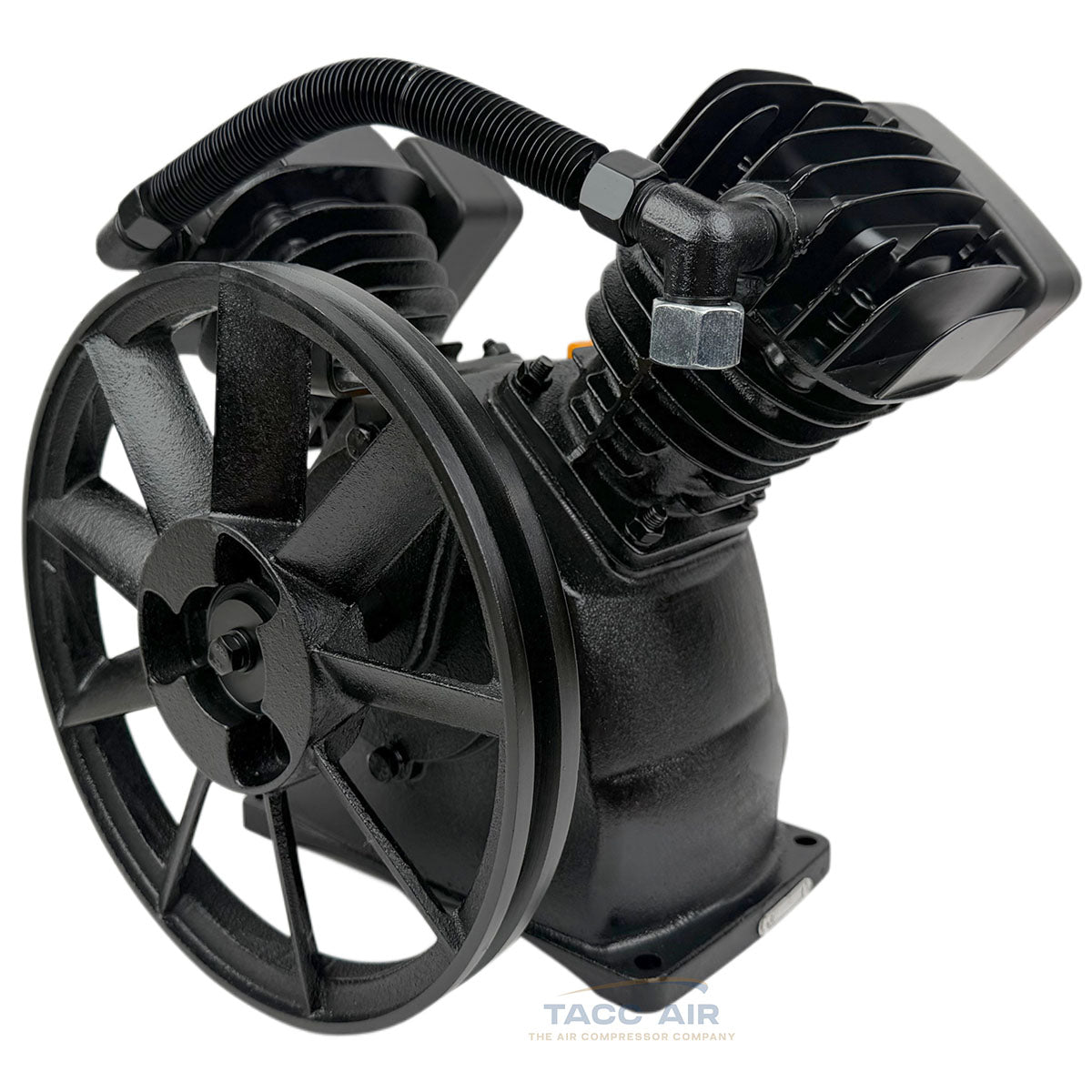

Delivering up to 12.7 CFM at 1180 RPM, this replacement pump is ideal for many belt-driven air compressors with tanks up to 60 gallons. It comes complete with the flywheel, dual intake filters, and an oil sight glass, so it's ready to install.

For proper operation, this pump should be paired with a true 3 HP, 230-volt electric motor (approximately 15 amps or higher). Standard 120-volt motors do not produce enough horsepower to operate this pump correctly.

Whether you're replacing a failed pump or restoring an older compressor, this V-style twin-cylinder pump offers reliable performance and excellent airflow at an affordable price.

Features

• Heavy-duty cast iron cylinders and crankcase for maximum durability

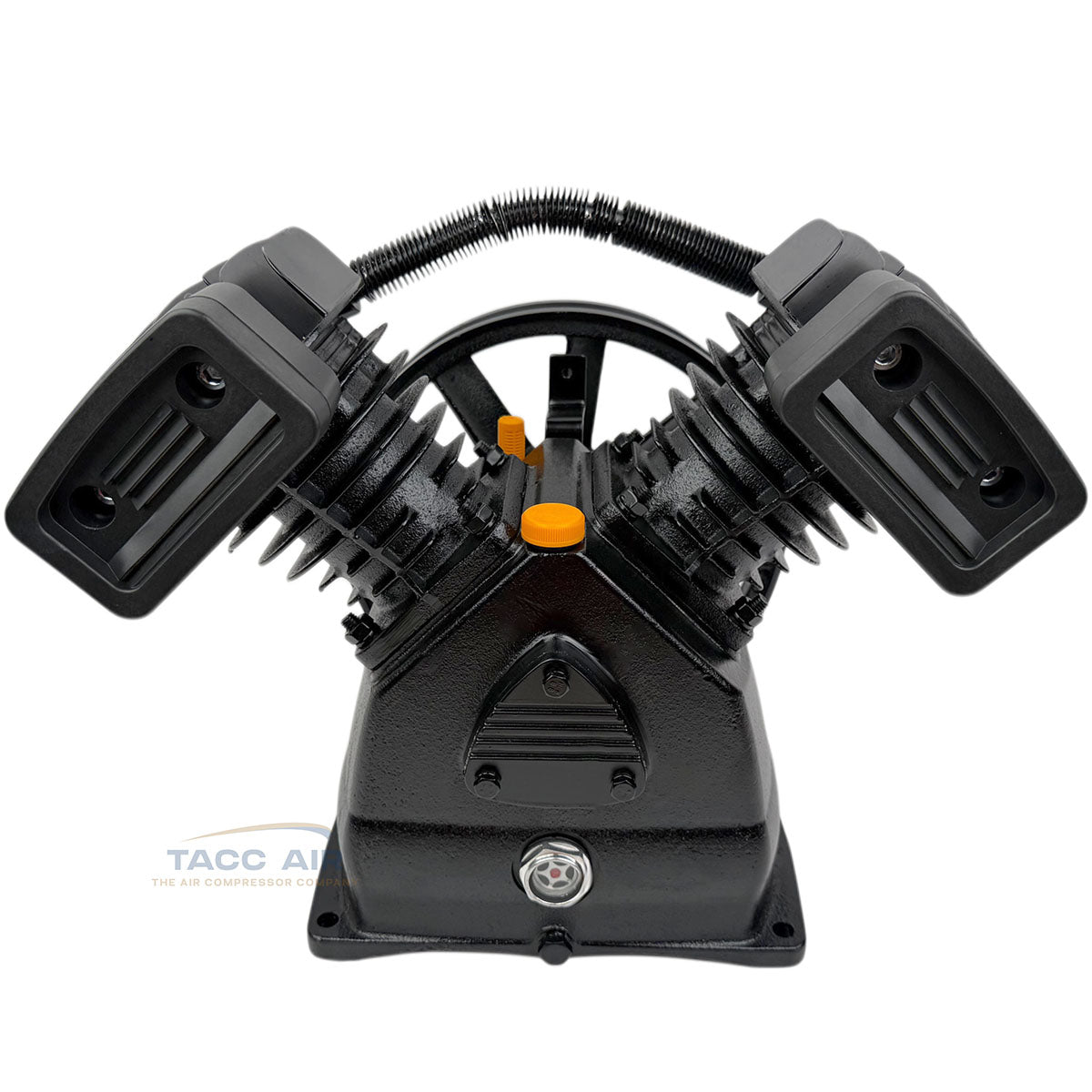

• V-style twin-cylinder, single-stage design for optimal cooling
• Produces up to 12.7 CFM at 1180 RPM

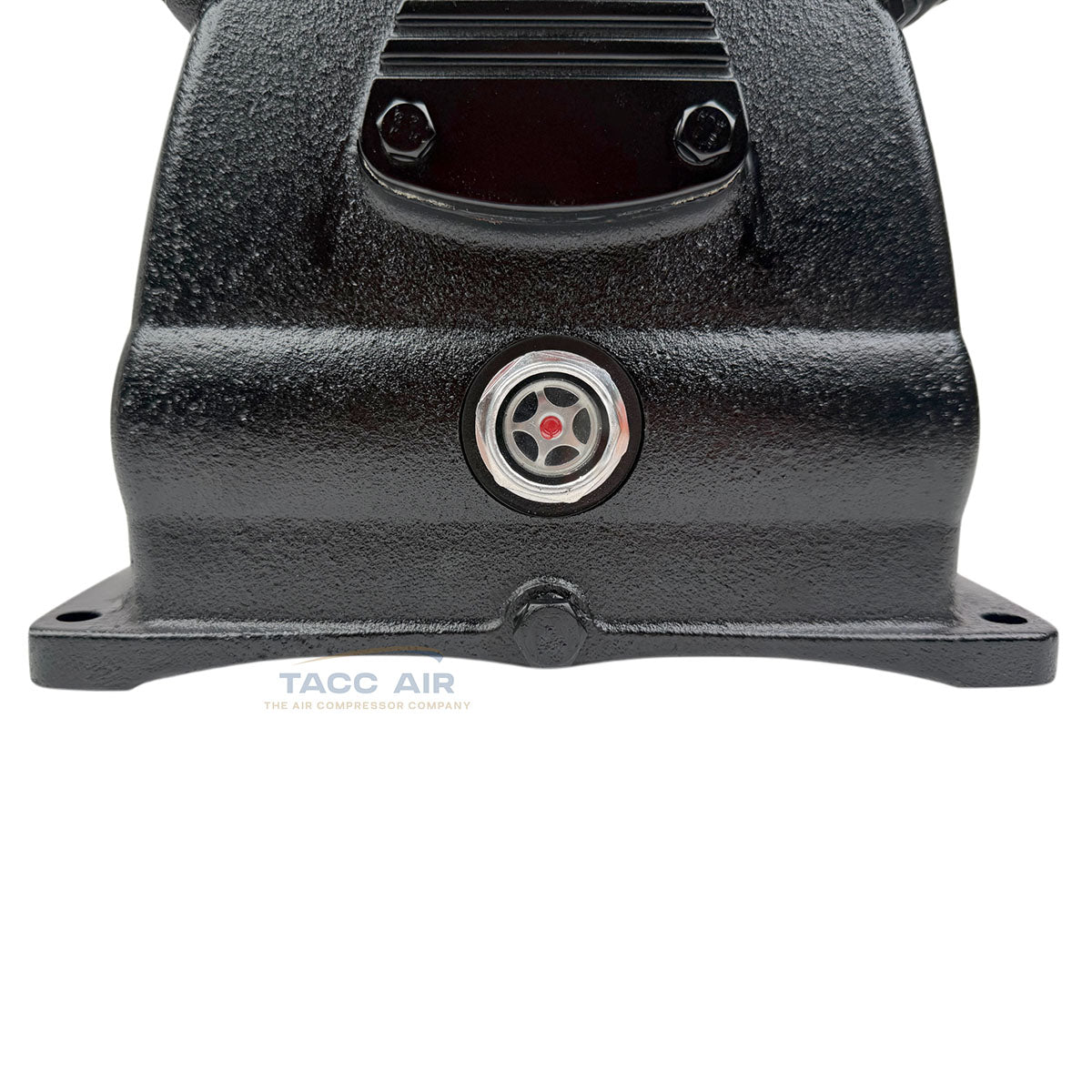

• Oil sight glass for quick and easy oil level checks
• Includes flywheel and two intake air filters
• Ideal replacement for many belt-driven air compressors up to 60 gallons
• Built for dependable performance in residential, commercial, agricultural, and automotive applications

Specifications

• Pump Type: Single Stage
• Cylinder Configuration: V-Twin, Two Cylinder
• Recommended Motor: True 3 HP (230 Volt / Approximately 15 Amp)
• Maximum Pump Speed: 1180 RPM
• Air Delivery: 12.7 CFM @ 1180 RPM (Minimum Recomended RPM 800)

• Flywheel Diameter: 10.5"
• Mounting Bolt Pattern: 8.5" x 4.875"
• Overall Width: 15.5" (widest point)
• Overall Depth: 10" (including flywheel)
• Overall Height: 13" (tallest point)
• Weight: 41 lbs

Before You Order

Please verify your compressor's mounting bolt pattern, pulley alignment, motor size, and available clearance before purchasing.
