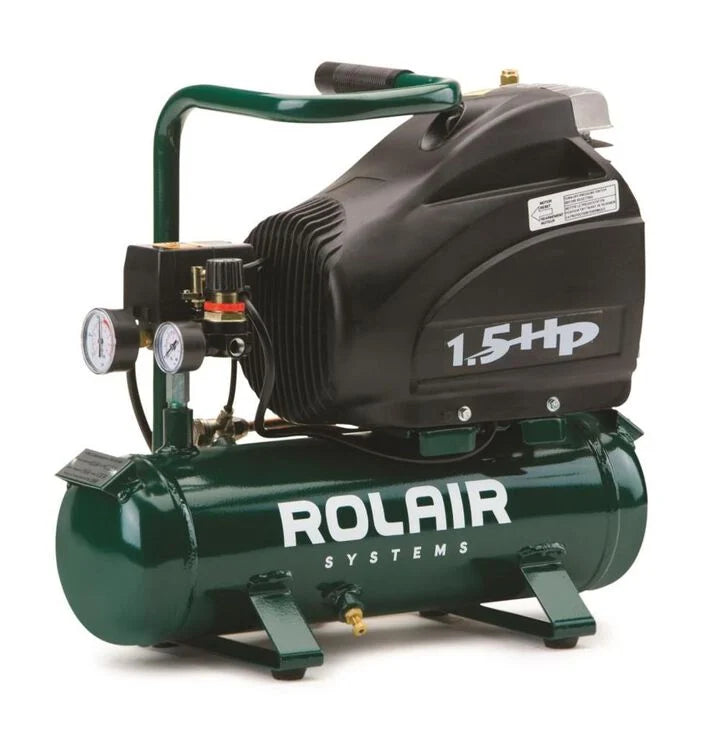

Rolair FC1500HS3 1.5HP Electric Portable Carry Type Hot Dog Tank Air Compressor

The Rolair FC1500HS3 is a lightweight contractor-grade portable air compressor designed for professionals who need dependable performance in a compact and easy-to-carry package. Featuring a low-profile hot dog tank design with a centered carrying handle, the FC1500HS3 delivers 4.0 CFM at 90 PSI while weighing only 39 lbs., making it ideal for trim carpenters, remodelers, service technicians, and contractors who frequently move from job to job. Its industrial-grade cast-iron cylinder, stainless steel reed valves, splash lubrication system, and ball bearing construction are built for long service life and reliable everyday use.

Powered by a heavy-duty 1.5 HP direct drive motor with low amp draw and manual overload protection, the FC1500HS3 is capable of powering framing nailers, finish nailers, roofing nailers, staplers, inflators, and many pneumatic tools. The compact tank design allows for easy storage in service vehicles and workshops while still providing fast recovery times and dependable airflow. Known for durability and quiet operation compared to many oil-free compressors, the FC1500HS3 is a popular choice among contractors looking for a portable compressor that is built to last.

Features & Benefits

• Heavy-duty 1.5 HP direct drive air compressor
• Delivers 4.0 CFM @ 90 PSI
• Lightweight portable hot dog tank design
• Center-mounted carry handle for easy transport
• Cast-iron cylinder for increased durability
• Stainless steel reed valves for long pump life
• Splash lubricated oil-bath pump
• Industrial-grade continuous-duty motor
• Manual overload protection with reset
• Ball bearing motor and pump construction
• Low amp draw for easier startup on standard circuits
• Pressure switch with on/off lever
• Air line regulator with outlet pressure gauge

• Intake filter/silencer for quieter operation
• Compact contractor-grade portable design

Specifications

• Horsepower: 1.5 HP
• Voltage: 115V
• Hertz: 60 Hz
• Pump/Motor RPM: 3400 RPM
• Amperage Draw: 13.5 Amps
• Tank Capacity: 2.15 Gallons
• Maximum Operating Pressure: 125 PSI
• Factory Pressure Settings: 95-125 PSI
• CFM Displaced: 7.8 CFM
• CFM Delivered @ 40 PSI: 4.24 CFM
• CFM Delivered @ 90 PSI: 4.0 CFM
• Pump-Up Time: 39 Seconds
• Recovery Time: 8 Seconds
• Number of Cylinders: 1
• Lubrication Type: Splash Lubrication
• Pump Oil Capacity: 6 oz.
• Overload Protection: Manual Reset
• Noise Level: 79 dBA
• Dimensions: 20" x 9" x 18"
• Shipping Dimensions: 21" x 10" x 21"
• Compressor Weight: 39 lbs.
• Shipping Weight: 43 lbs.
• Drive Type: Direct Drive
• Pump Type: Single Stage

Ideal Applications

• Finish nailers
• Brad nailers
• Staplers
• Framing nailers
• Roofing nailers
• Trim carpentry
• Remodeling projects
• Service and repair work
• Pneumatic tools
• Contractor and jobsite use
• Garage and workshop applications

Additional Information

The Rolair FC1500HS3 is widely appreciated for combining contractor-grade durability with excellent portability and strong airflow performance for its compact size. Many professionals prefer oil-lubricated Rolair compressors because they tend to last significantly longer and operate quieter than many lightweight oil-free compressors. Its compact footprint and lightweight design make it especially useful for contractors who regularly carry compressors into homes, onto roofs, or through tight jobsites while still needing enough airflow to keep up with demanding pneumatic tools.
