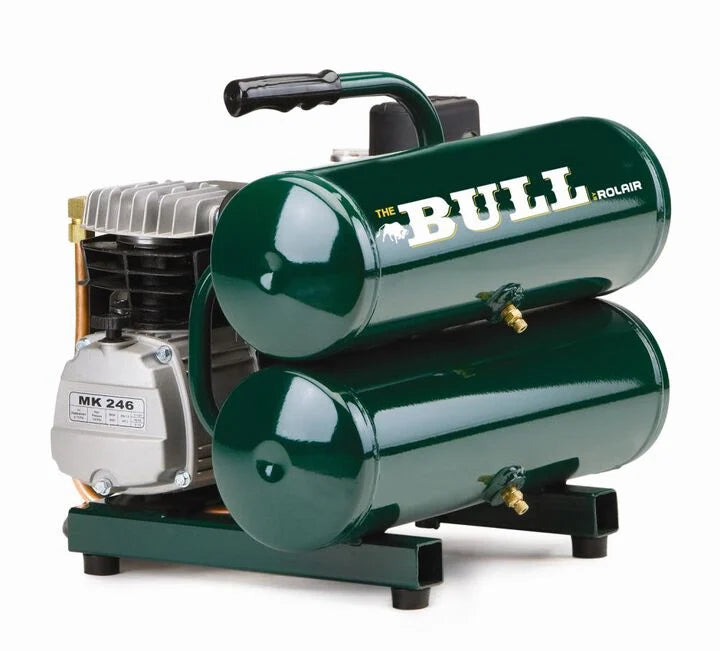

Rolair FC2002 2HP Electric Portable Twin Stack Tank Carry Type Air Compressor

The Rolair FC2002 “The Bull” is a contractor-grade 2 HP direct drive air compressor built for professionals who need dependable airflow, durability, and portability on the jobsite. Featuring a classic low-profile stack tank design, the FC2002 delivers 4.1 CFM at 90 PSI while maintaining a compact footprint that is easy to transport and store. Its heavy-duty cast-iron cylinder pump, splash lubrication system, stainless steel reed valves, and industrial-grade motor are engineered for long service life in demanding applications.

Powered by a low amp draw 115V motor with manual overload protection, the FC2002 is ideal for running framing nailers, roofing nailers, finish nailers, siding tools, and other pneumatic equipment. The oversized crankcase helps maintain oil viscosity longer while also protecting the pump during operation on uneven jobsite surfaces. With its rugged construction, reliable performance, and fast recovery time, the FC2002 has become a popular choice among contractors looking for a durable portable compressor that can withstand everyday use.

Features & Benefits

• Heavy-duty 2 HP direct drive air compressor
• Delivers 4.1 CFM @ 90 PSI
• Compact low-profile stack tank design
• Cast-iron cylinder for increased durability
• Stainless steel reed valves for long pump life
• Splash lubricated oil-bath pump
• Industrial-grade continuous-duty motor
• Manual overload protection with reset

• Low amp draw for easier startup on standard circuits
• Pressure switch with on/off lever
• Air line regulator with outlet pressure gauge
• Tank pressure gauge included
• Intake filter/silencer for quieter operation

• Contractor-grade portable design

Specifications

• Horsepower: 2 HP
• Voltage: 115V
• Hertz: 60 Hz
• Pump/Motor RPM: 3400 RPM
• Amperage Draw: 14.6 Amps
• Tank Capacity: 4.3 Gallons
• Maximum Operating Pressure: 125 PSI
• Factory Pressure Settings: 95-125 PSI
• CFM Displaced: 8.7 CFM
• CFM Delivered @ 40 PSI: 5.4 CFM
• CFM Delivered @ 90 PSI: 4.1 CFM
• Pump-Up Time: 1 Minute 10 Seconds
• Recovery Time: 15 Seconds
• Number of Cylinders: 1
• Lubrication Type: Splash Lubrication
• Pump Oil Capacity: 12 oz.
• Overload Protection: Manual Reset
• Noise Level: 79 dBA
• Dimensions: 20" x 15" x 17"
• Shipping Dimensions: 22" x 16" x 18"
• Shipping Weight: 62 lbs.
• Drive Type: Direct Drive
• Pump Type: Single Stage

Ideal Applications

• Framing nailers
• Roofing nailers
• Finish carpentry
• Trim work
• Siding installation
• Remodeling projects
• Pneumatic tools
• Contractor and jobsite use
• Garage and workshop applications
• Service and maintenance work

Additional Information

The Rolair FC2002 is known for combining contractor-grade durability with strong airflow performance in a compact portable design. Many contractors prefer oil-lubricated Rolair compressors because of their longevity and ability to handle everyday professional use compared to many lightweight oil-free compressors. The FC2002’s low-profile design also makes it easier to load into service vehicles and maneuver around jobsites while still delivering enough airflow to operate multiple nail guns and demanding pneumatic tools.
