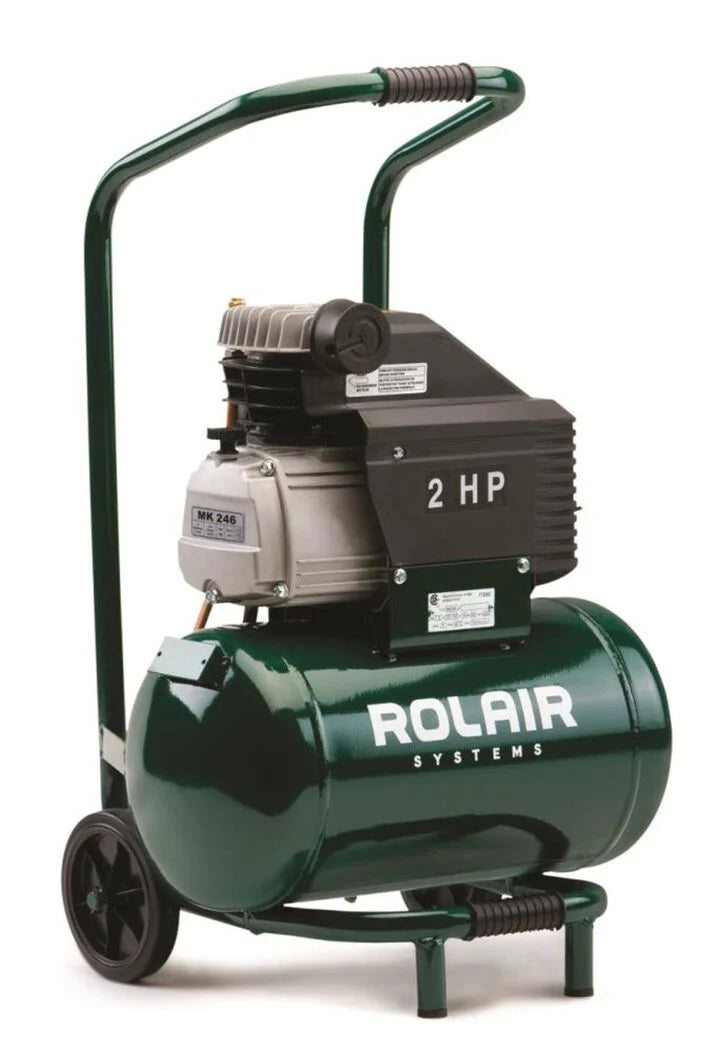

Rolair FC2002HBP6 2HP Electric Portable Wheeled Construction Duty Air Compressor

The Rolair FC2002HBP6 is a heavy-duty contractor-grade portable air compressor designed for professionals who need dependable airflow combined with easy jobsite mobility. Built around Rolair’s proven 2 HP direct drive pump system, the FC2002HBP6 delivers 4.1 CFM at 90 PSI while featuring a larger 5.3 gallon tank and integrated dolly-cart design with wheels for easier transport around jobsites, workshops, and service locations. Its industrial-grade cast-iron cylinder, stainless steel reed valves, splash lubrication system are engineered for long-lasting durability and performance.

Powered by a low amp draw 115V motor with manual overload protection, the FC2002HBP6 is capable of handling framing nailers, roofing nailers, siding tools, finish nailers, inflators, and many common pneumatic tools. The vertical wheeled design allows for improved portability without sacrificing performance, while the oversized crankcase helps maintain oil viscosity longer and protects the pump during operation on uneven surfaces. Known for reliability and contractor-grade construction, the FC2002HBP6 is an excellent choice for professionals who want a durable portable compressor with added air capacity and maneuverability.

Features & Benefits

• Heavy-duty 2 HP direct drive air compressor
• Delivers 4.1 CFM @ 90 PSI
• Extra-large 5.3 gallon tank capacity
• Portable dolly-cart design with wheels
• Cast-iron cylinder for increased durability
• Stainless steel reed valves for longer pump life
• Splash lubricated oil-bath pump
• Industrial-grade continuous-duty motor
• Manual overload protection with reset

• Low amp draw for easier startup on standard circuits
• Pressure switch with on/off lever
• Air line regulator with outlet pressure gauge

• Intake filter/silencer for quieter operation

• Contractor-grade portable design

Specifications

• Horsepower: 2 HP
• Voltage: 115V
• Hertz: 60 Hz
• Pump/Motor RPM: 3400 RPM
• Amperage Draw: 14.6 Amps
• Tank Capacity: 5.3 Gallons
• Maximum Operating Pressure: 125 PSI
• Factory Pressure Settings: 95-125 PSI
• CFM Displaced: 8.7 CFM
• CFM Delivered @ 40 PSI: 5.4 CFM
• CFM Delivered @ 90 PSI: 4.1 CFM
• Pump-Up Time: 1 Minute 25 Seconds
• Recovery Time: 19 Seconds
• Number of Cylinders: 1
• Lubrication Type: Splash Lubrication
• Pump Oil Capacity: 12 oz.
• Overload Protection: Manual Reset
• Noise Level: 79 dBA
• Dimensions: 16" x 14" x 31"
• Shipping Dimensions: 20" x 17" x 33"
• Shipping Weight: 63 lbs.
• Drive Type: Direct Drive
• Pump Type: Single Stage

Ideal Applications

• Framing nailers
• Roofing nailers
• Finish carpentry
• Trim work
• Siding installation
• Remodeling projects
• Pneumatic tools
• Contractor and jobsite use
• Garage and workshop applications
• Service and maintenance work
• Mobile repair applications

Additional Information

The Rolair FC2002HBP6 combines the proven performance of the popular FC2002 platform with improved portability and additional air storage capacity. Contractors often prefer this model because the wheeled design makes it easier to maneuver around jobsites while still maintaining the durability and reliability Rolair compressors are known for. Its oil-lubricated pump design offers longer service life and quieter operation compared to many lightweight oil-free compressors, making it well suited for demanding everyday professional use.
