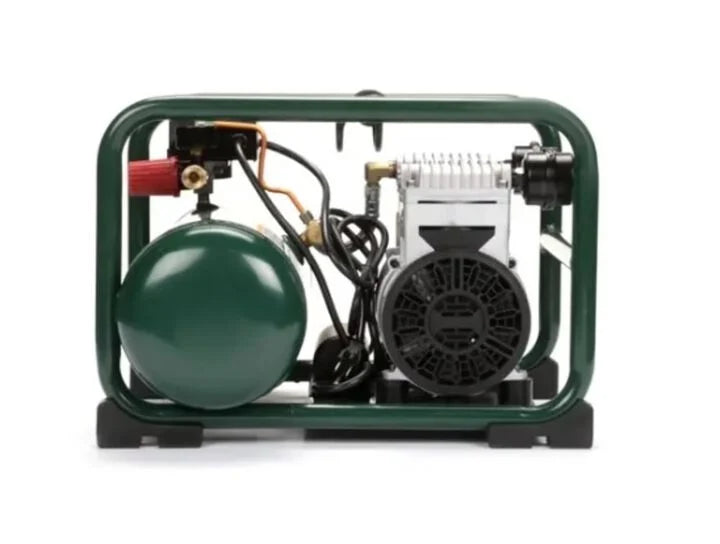

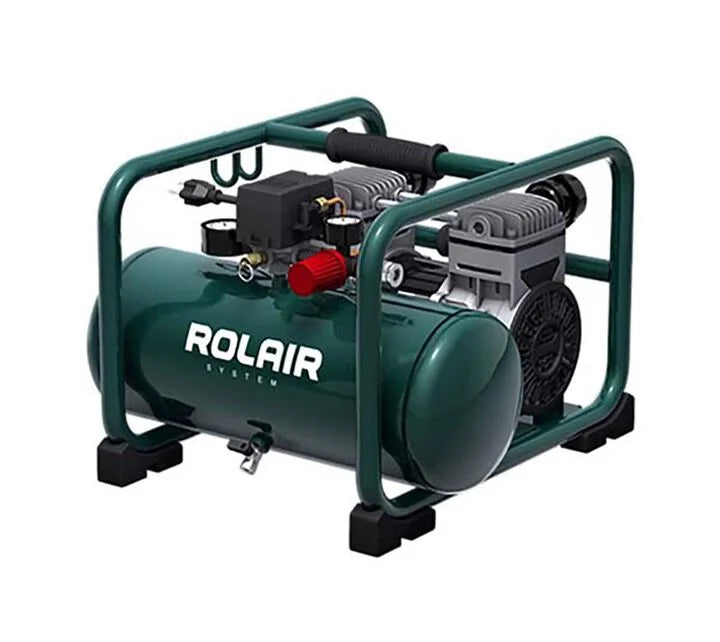

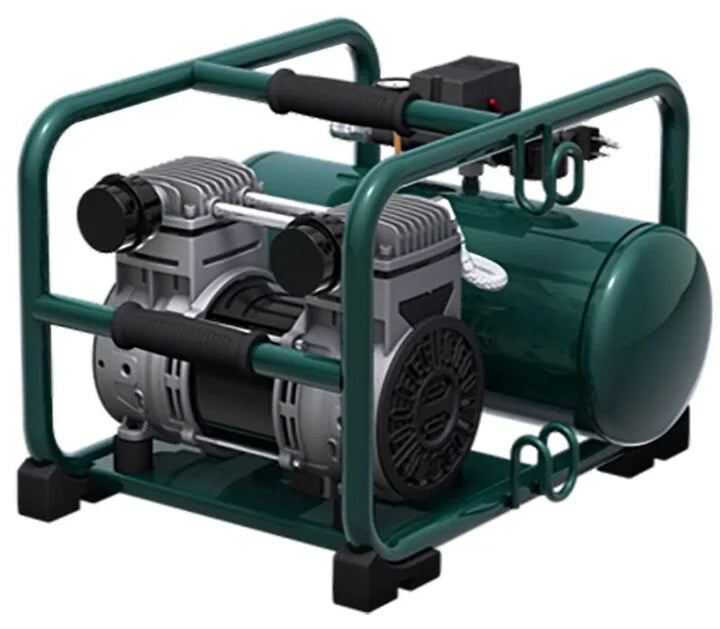

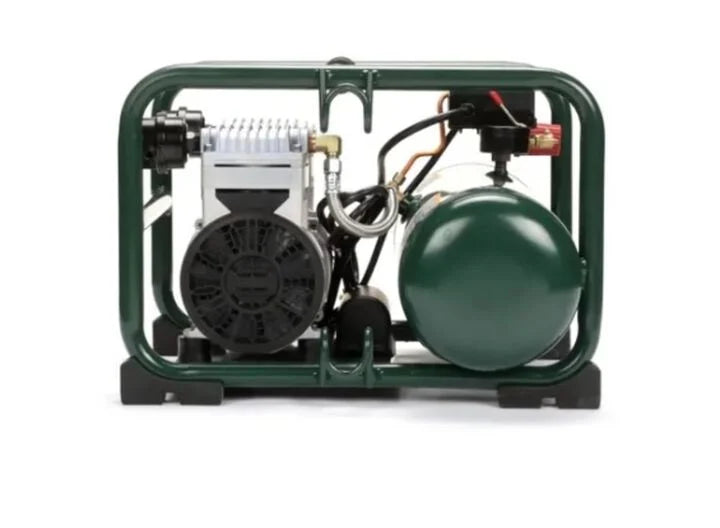

Rolair JC20 2HP Electric Portable Quiet Series Carry Type Air Compressor

The Rolair JC20 Ultra Quiet Air Compressor takes oil-free portable compressors to the next level by combining high airflow performance with extremely quiet operation. Powered by a heavy-duty 2 HP low RPM motor, the JC20 delivers an impressive 4.5 CFM at 90 PSI while operating at only 70 dBA, making it ideal for indoor jobsites, finish work, remodeling, garages, and environments where noise reduction is important. Its two-cylinder oil-free pump is engineered for durability and efficiency with cast aluminum cylinders, stainless steel reed valves, and ball bearings for long service life and minimal maintenance.

Designed with contractors in mind, the JC20 features a rugged roll-cage frame that protects the motor and pump during transport and jobsite use. The integrated cord wrap, upward-facing gauges, dual intake filters, and quarter-turn drain valve provide convenience and easy operation. With a lightweight portable design and fast recovery times, the JC20 is an excellent choice for trim carpentry, light framing, roofing, service work, pneumatic tools, and general shop applications.

Features & Benefits

• Ultra quiet operation at only 70 dBA
• High-output 2 HP oil-free direct drive compressor
• Delivers 4.5 CFM @ 90 PSI
• Low RPM motor for quieter operation and increased durability
• Oil-free pump design for maintenance-free operation
• Two-cylinder pump for improved airflow and performance
• Cast aluminum cylinders for durability and reduced weight
• Stainless steel reed valves for long service life
• Heavy-duty contractor-grade roll-cage frame
• Integrated cord wrap for easy storage
• Upward-facing gauges for better visibility
• Quarter-turn ball valve drain
• Dual intake filters for cleaner air intake
• Start/stop pressure switch
• Air regulator and pressure gauge included

• Lightweight portable design

Specifications

• Horsepower: 2 HP
• Voltage: 115V
• Hertz: 60 Hz
• Motor RPM: 1700 RPM
• Amperage Draw: 12 Amps
• Tank Capacity: 3 Gallons
• Maximum Pressure: 150 PSI
• Factory Pressure Settings: 120-150 PSI
• CFM Displaced: 8.7 CFM
• CFM Delivered @ 40 PSI: 5.5 CFM
• CFM Delivered @ 90 PSI: 4.5 CFM
• Pump-Up Time: 60 Seconds
• Recovery Time: 16 Seconds
• Number of Cylinders: 2
• Lubrication Type: Oil-Free
• Overload Protection: Automatic Thermal Protection
• Noise Level: 70 dBA
• Dimensions: 20" x 20" x 15"
• Shipping Dimensions: 21" x 21" x 16"
• Weight: Approximately 68-75 lbs.
• Drive Type: Direct Drive
• Pump Type: Single Stage

Ideal Applications

• Finish carpentry
• Trim nailers
• Framing nailers
• Roofing nailers
• Remodeling work
• Service vehicles
• Garage and workshop use
• Indoor applications where noise matters
• General pneumatic tool operation
• Home and contractor use

Additional Information

The Rolair JC20 is widely known for its combination of contractor-grade airflow and exceptionally quiet performance. Operating at only 70 decibels, it is significantly quieter than traditional pancake or hot dog compressors while still delivering enough airflow to handle most nail guns and light-duty air tools. The low RPM motor design helps reduce wear, heat, and noise while improving long-term reliability. Many contractors and homeowners choose the JC20 specifically for indoor work where excessive compressor noise can become disruptive.
