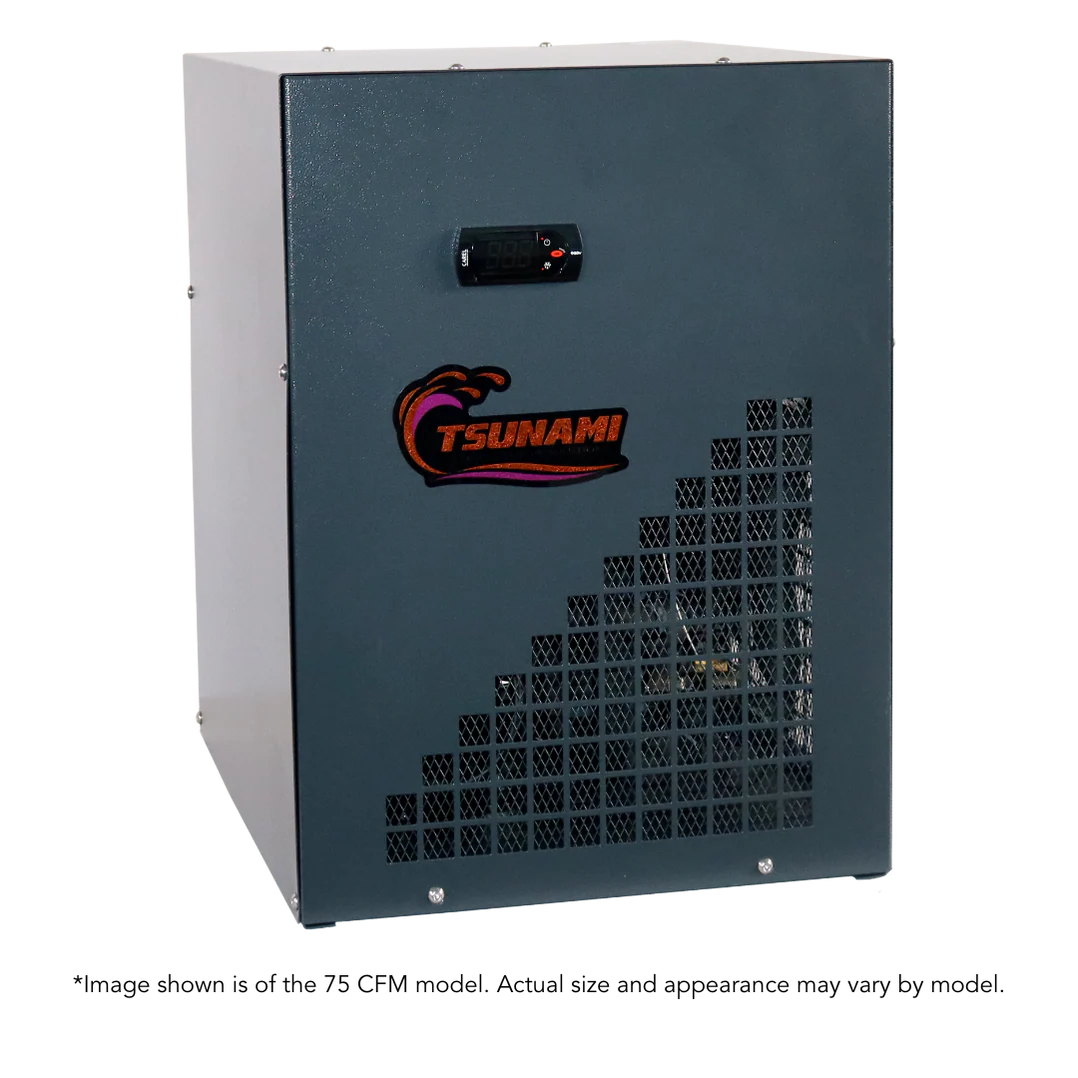

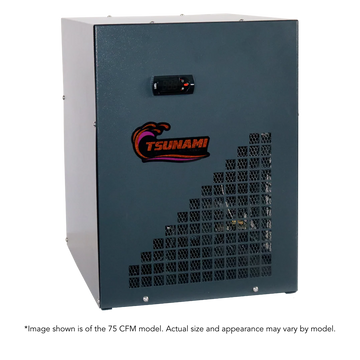

Tsunami RSD-020 20 CFM Refrigerated Compressed Air Dryer 3/4" NPT, 115 Volts AC

Tsunami RSD-020 20 CFM Refrigerated Compressed Air Dryer – 3/4" NPT, 115 VAC, R134a

The Tsunami RSD-020 Refrigerated Compressed Air Dryer is designed to provide a dependable source of dry compressed air by removing moisture from compressed air systems. With a 20 CFM flow capacity, this dryer helps protect air tools, pneumatic equipment, spray finishing systems, and other downstream components from the damaging effects of water and condensation. It is an excellent choice for automotive shops, machine shops, manufacturing facilities, woodworking, and general industrial applications.

The RSD-020 features a compact, plug-and-play design for easy installation and utilizes an energy-efficient refrigeration system to maintain a consistent pressure dew point of approximately 38°F to 50°F under normal operating conditions. A high-efficiency heat exchanger and integrated automatic condensate drain provide reliable performance while minimizing maintenance requirements. By removing moisture from the compressed air supply, the dryer helps reduce corrosion, extend equipment life, improve product quality, and minimize costly downtime.

Features

• Removes moisture from compressed air systems
• Rated for up to 20 CFM
• 3/4" NPT inlet and outlet connections (Note: 3/4" NPT measures about 1" in diameter for reference)
• Operates on 115 VAC, single-phase power
• Uses R134a refrigerant
• High-efficiency heat exchanger for effective moisture removal
• Integrated automatic condensate drain
• Compact, plug-and-play installation
• UL/CSA certified
• Low maintenance, reliable operation

Specifications

• Manufacturer: Tsunami
• Model: RSD-020
• Flow Capacity: 20 CFM
• Connection Size: 3/4" NPT
• Power: 115 VAC, Single Phase, 60 Hz
• Refrigerant: R134a
• Maximum Working Pressure: 232 PSI
• Maximum Inlet Air Temperature: 130°F
• Typical Pressure Dew Point: 38°F–50°F
• Approximate Weight: 39 lb
  • Height: 17.55 in.
  • Width: 13.11 in.
  • Depth: 15.43 in.
