Square D 9013FHG12J52M1X 95-125 PSI Air Compressor Pressure Switch Control Valve

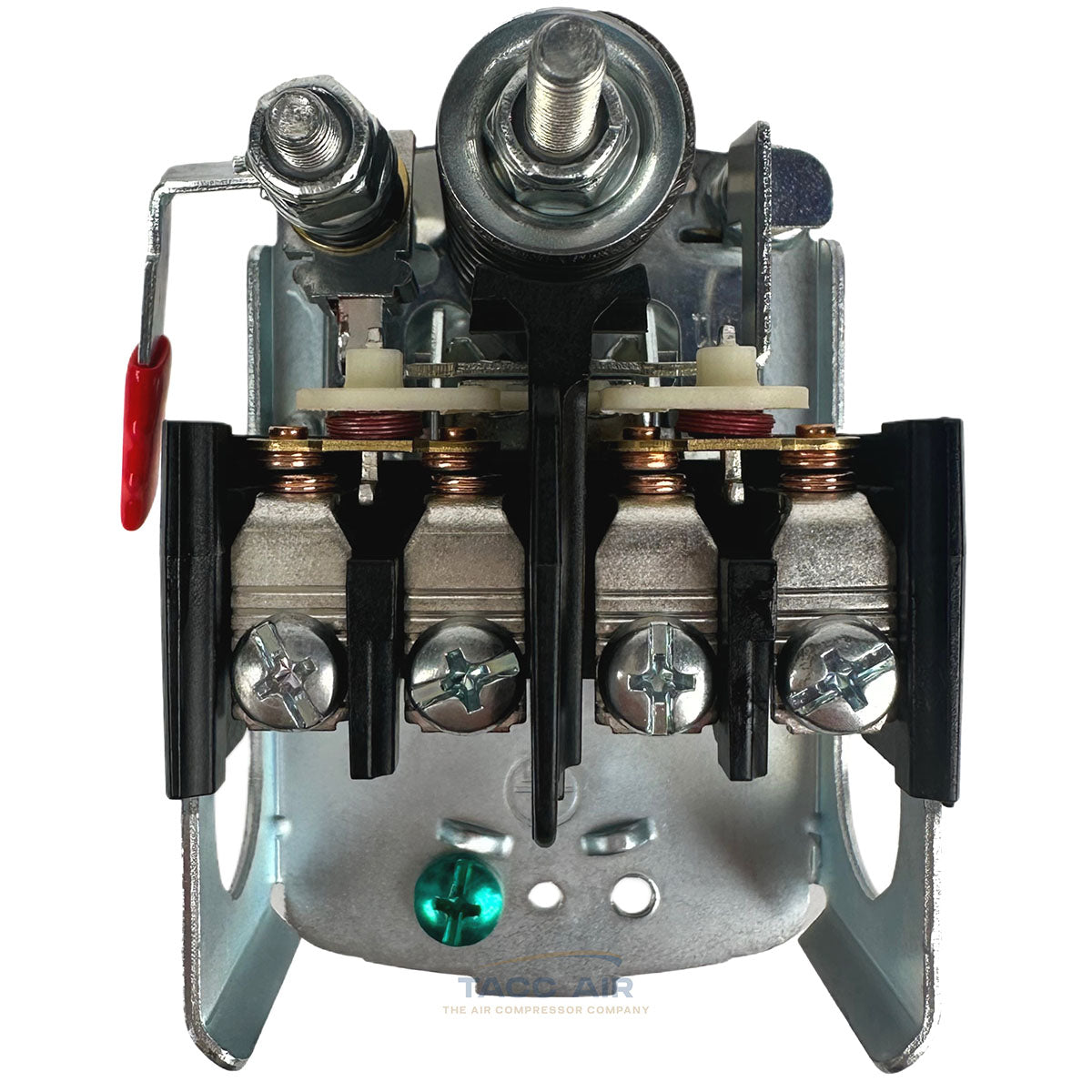

Square D Pumptrol Air Compressor Pressure Switch 9013FHG12J52M1X

 95-125 PSI

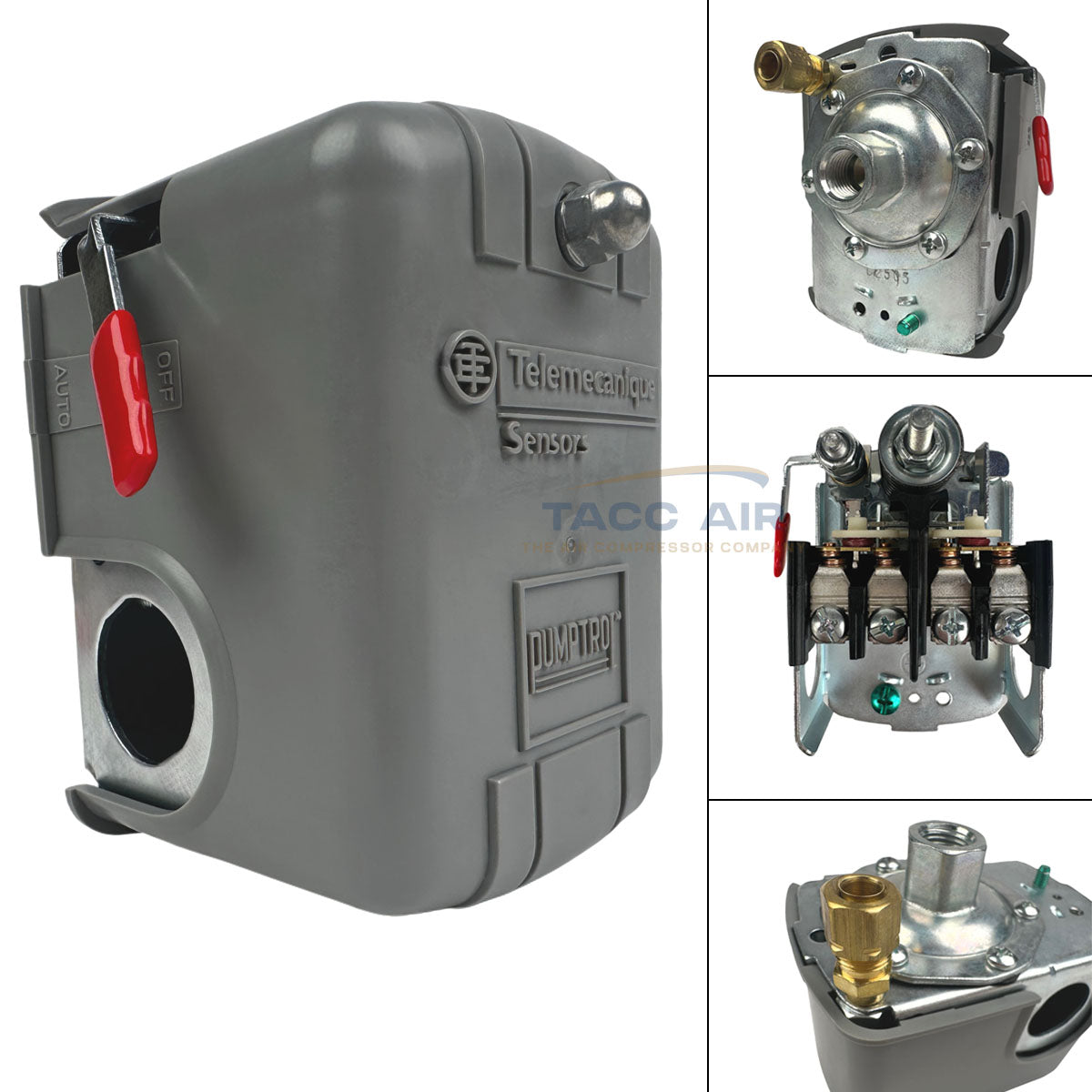

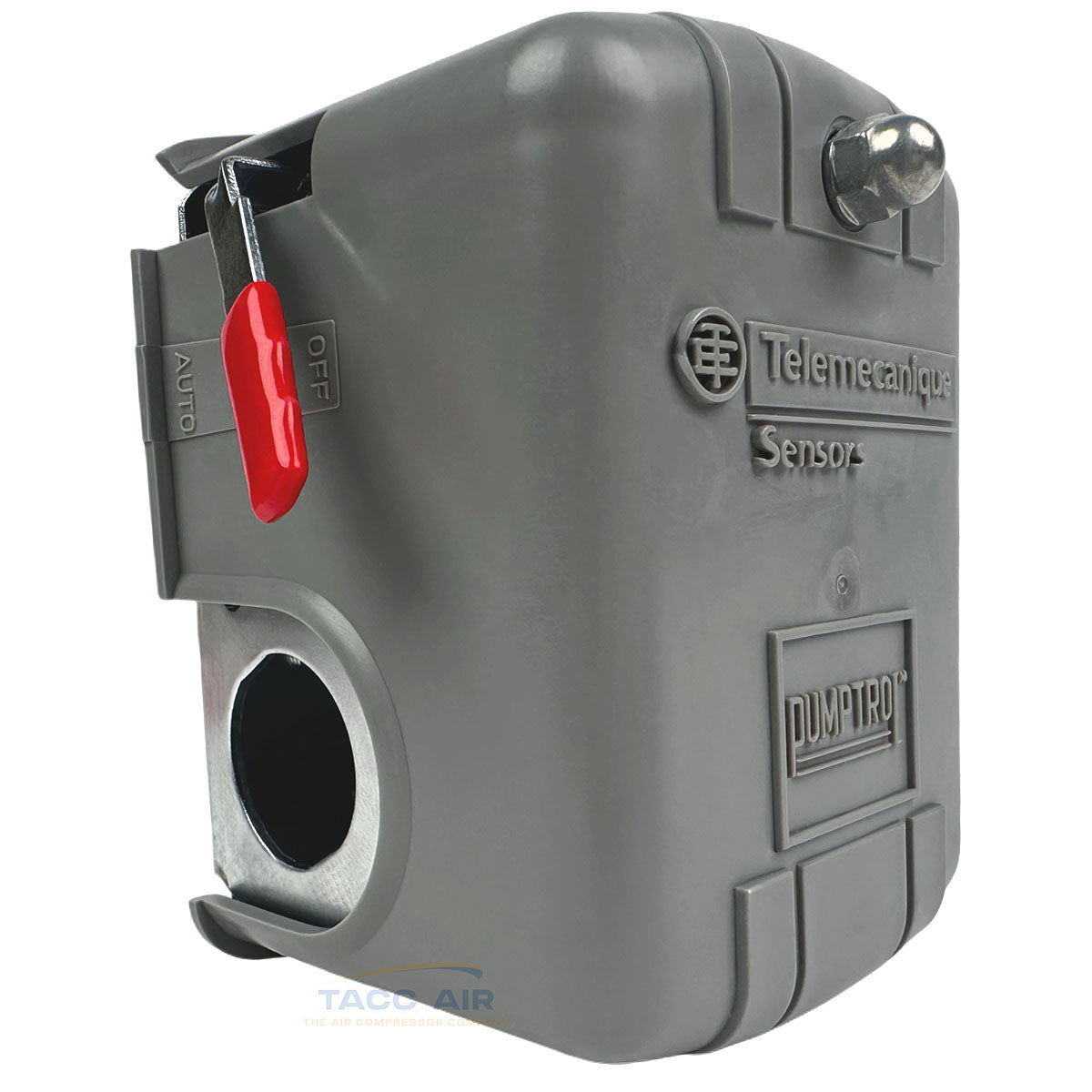

Genuine Square D Pumptrol pressure switch designed for air compressors. Factory set to turn on at 95 PSI and shut off at 125 PSI, but adjustable from 70–150 PSI. Features a metal On/Off lever and an unloader valve mounted on the bottom of the switch.

The unloader valve is used to release pressure from the compressor pump head, allowing the motor to start without load. If your compressor does not have an unloader line, simply leave the unloader connection unhooked—the switch will still work normally. The unloader only functions when air is actually routed to the valve.

Specifications:

• Brand: Square D Pumptrol

• Model: 9013FHG12J52M1X

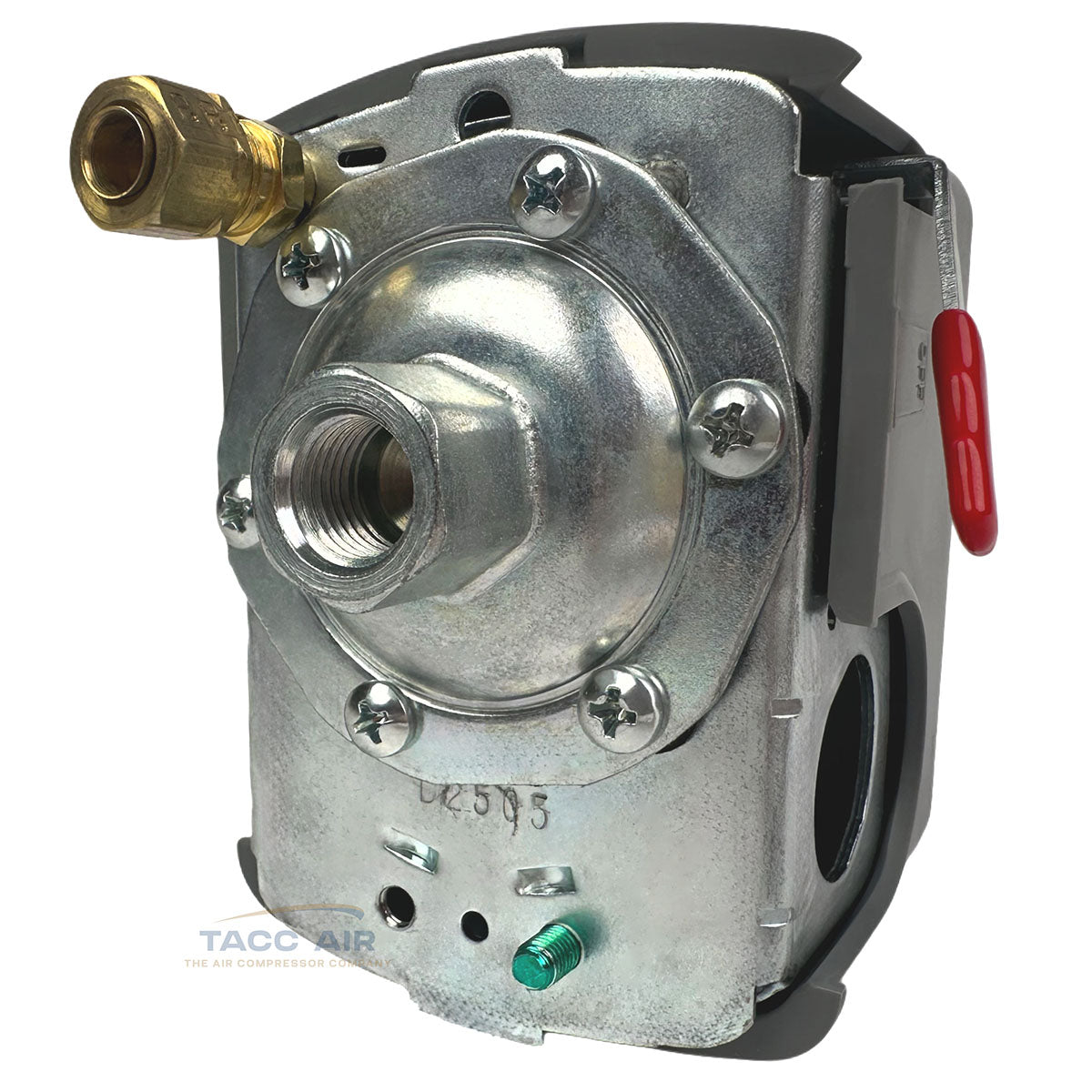

• Pressure Connection: 1/4" Female NPT (Note: 1/4" NPT measures approx. 1/2" in diameter)

• Unloader Port: 1/4" compression fitting (fits 1/4" OD copper or high-pressure tubing)

• Preset Cut-In: 95 PSI

• Preset Cut-Out: 125 PSI

• Differential: 30 PSI

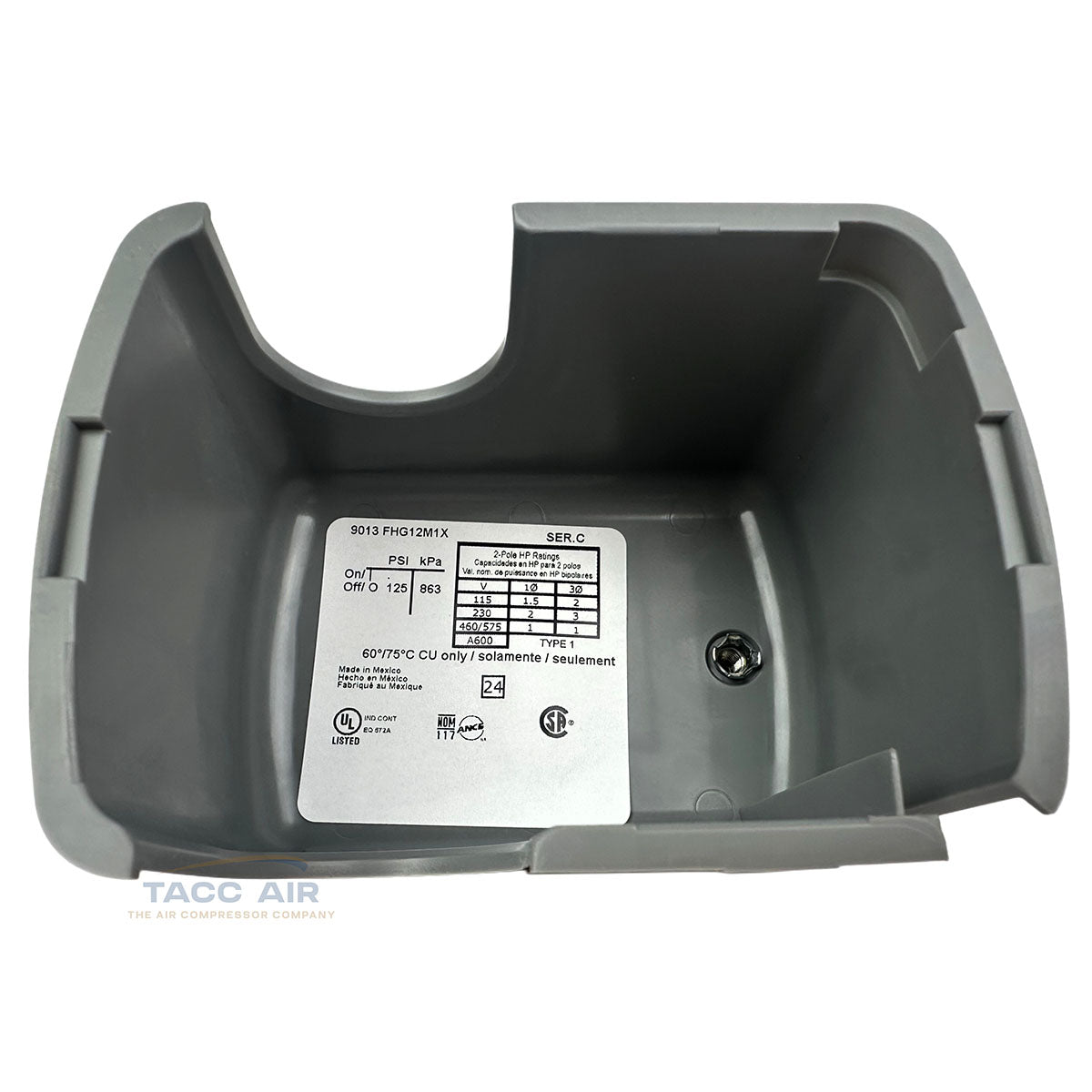

• Rated for 110–575V, up to 15 amps continuous (if used with a magnetic starter, amperage through the switch doesn’t matter)

Authentic Square D pressure switch
