Air Compressor Electronic Auto Moisture Water Tank Drain Valve Timer Solenoid

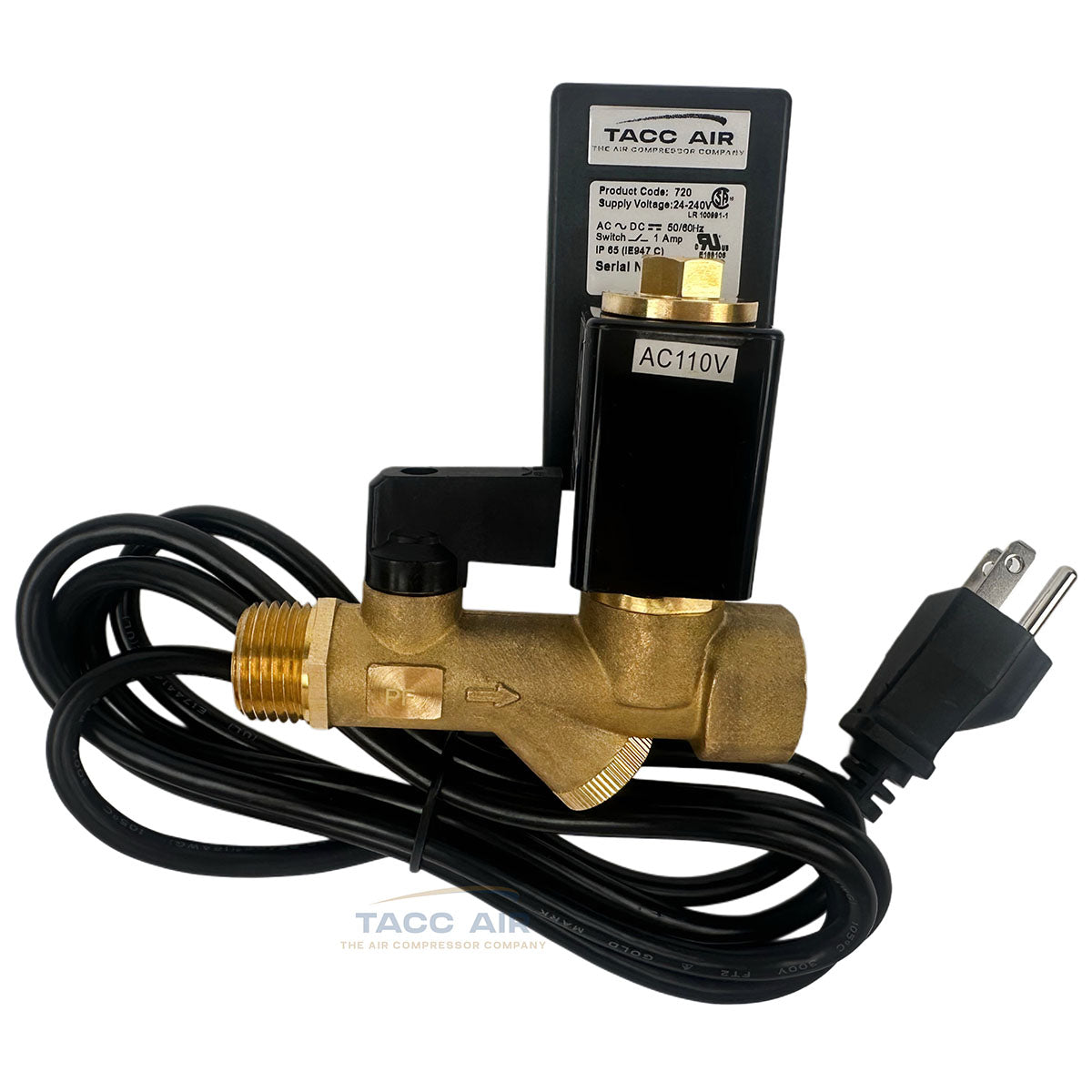

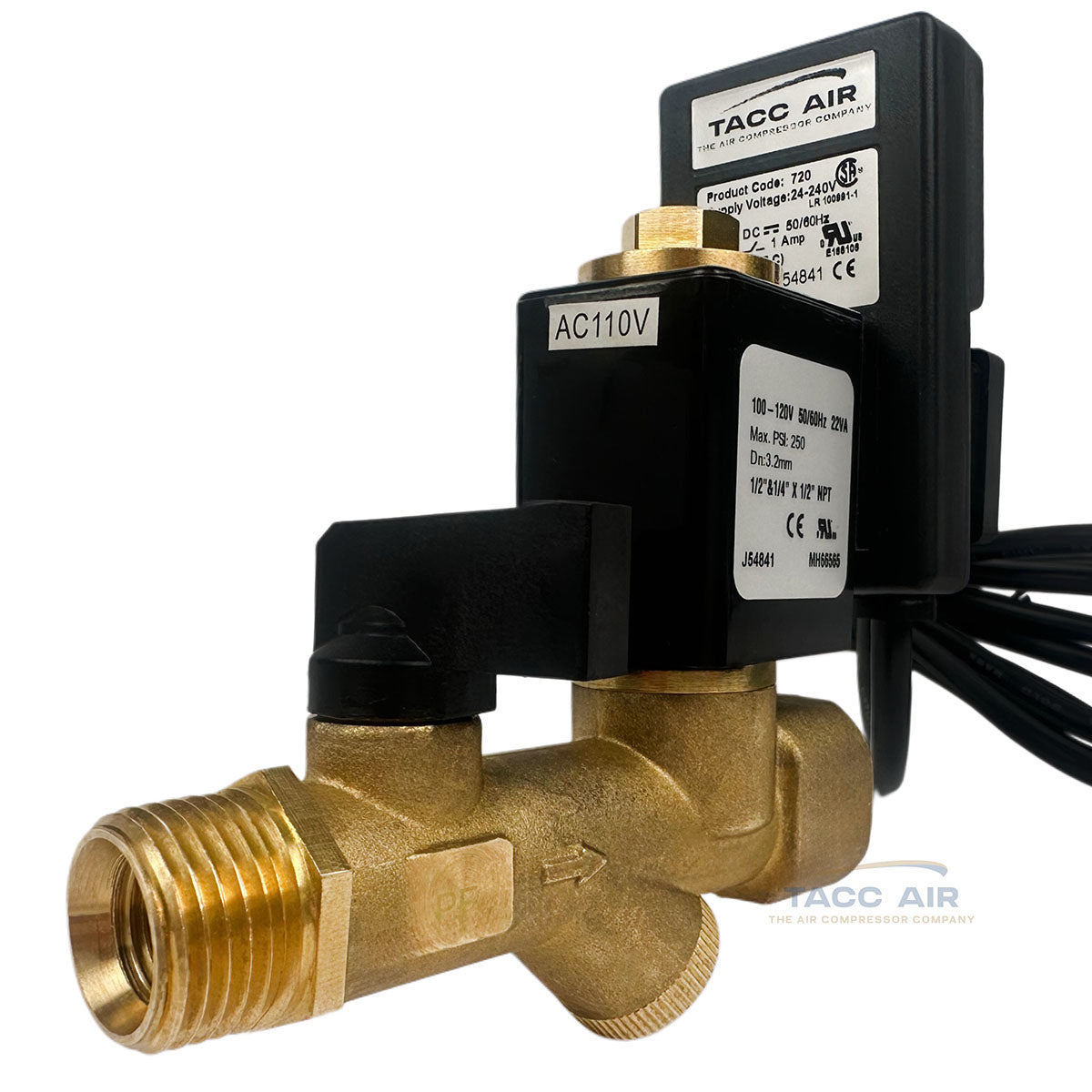

Tacc Air Model TC52 Electronic Condensate Timer Tank Drain Valve For Air Compressor Tanks And Other Compressed Air Systems

115 V, 250 PSI Rated Pressure, ISO/UL/CE/CSA Certified

The Tacc Air TC52 Electronic Timer Drain is a top quality, commercial-grade condensate / moisture drain valve engineered for air compressors and compressed air tanks. Built to withstand rigorous industrial environments, it’s backed by ISO, UL, CE, and CSA certifications—surpassing the standards of many competitors.

Key Features & Benefits

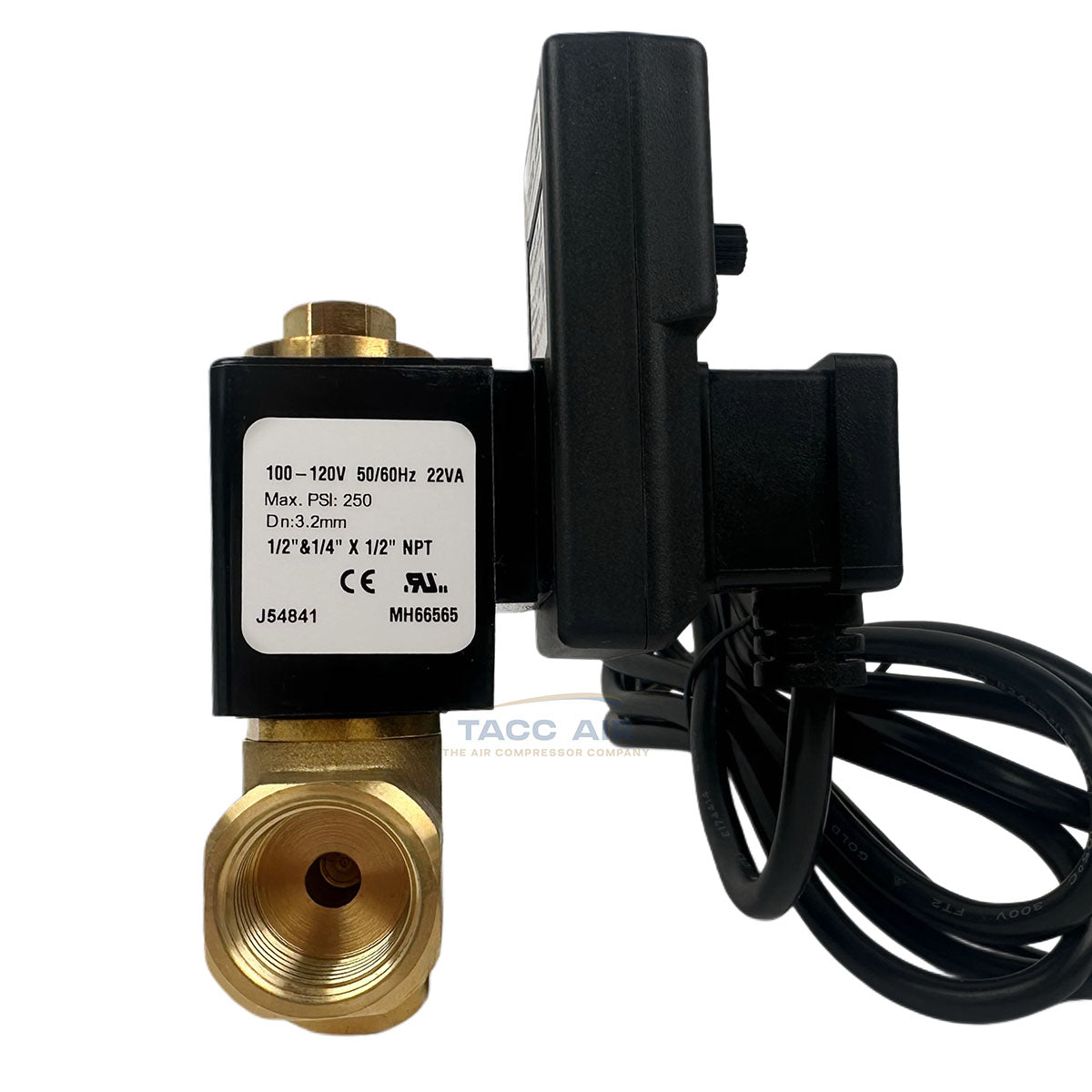

• Built tough for industry use: Max working pressure 250 PSI, 115 V AC with standard US plug, single-phase, 60 Hz.

• Versatile connection options:

  • Inlet connection options: 1/4" female NPT (1/4" NPT thread measures approx. 1/2" in diameter) or 1/2" male NPT (1/2" NPT measures approx. 3/4" in diameter)

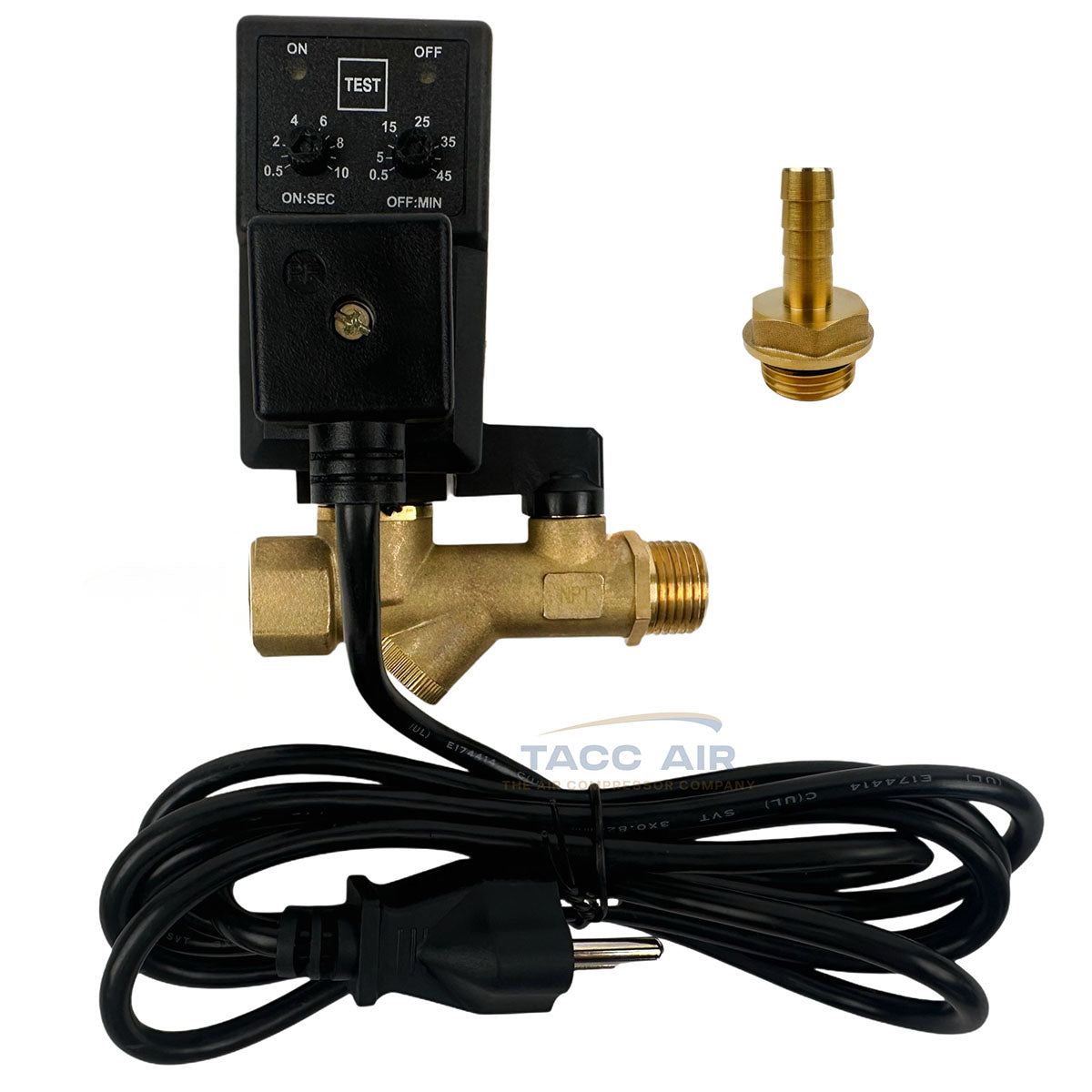

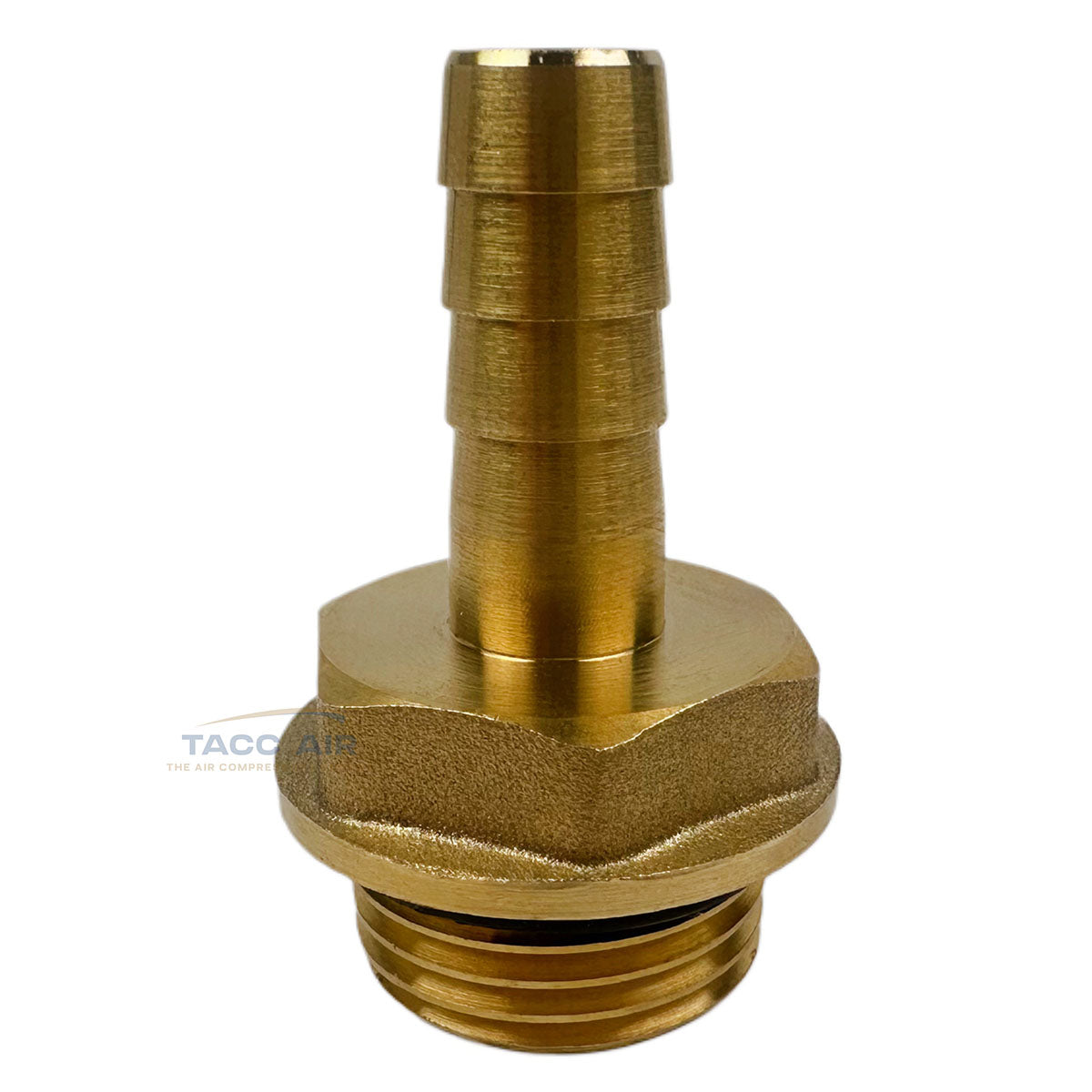

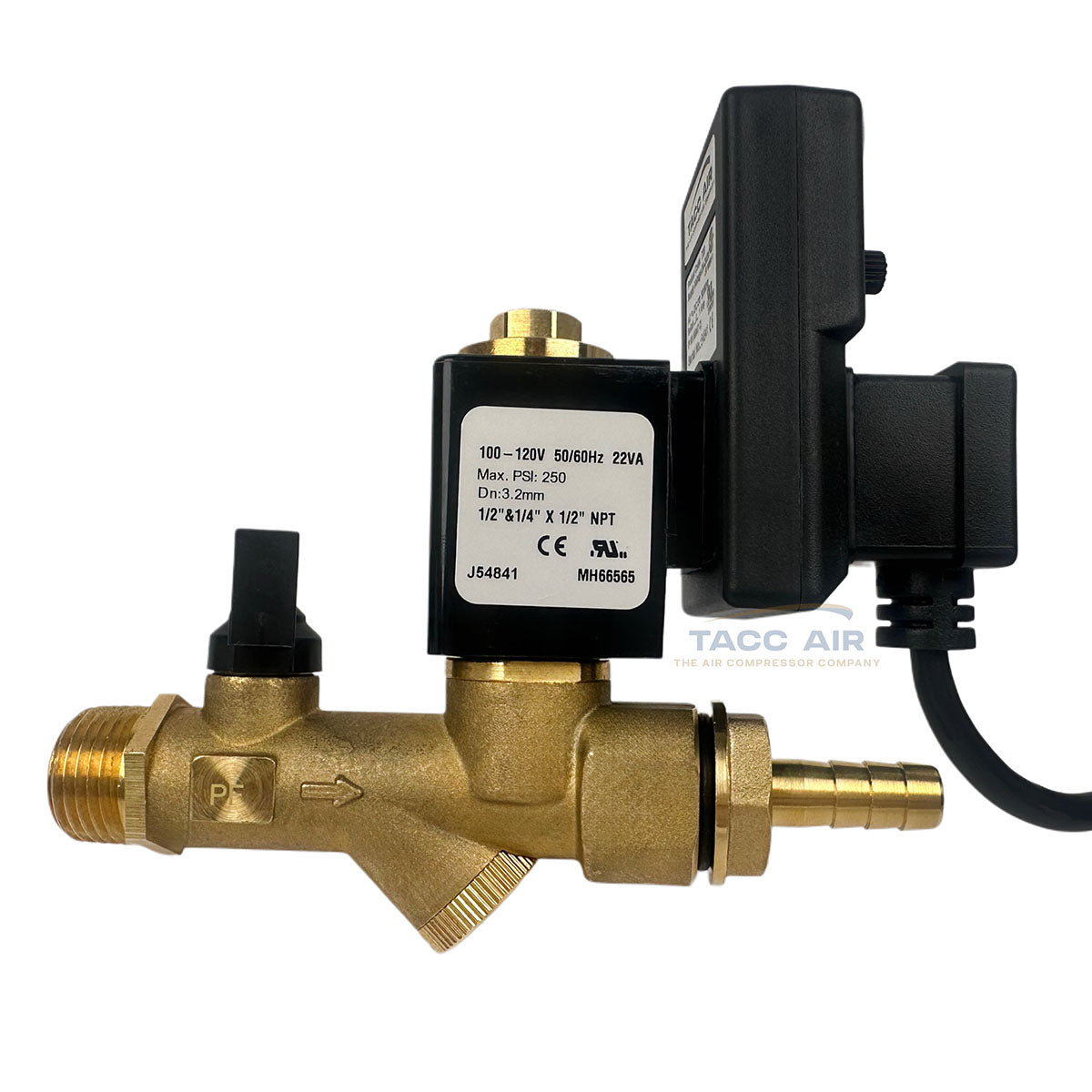

  • Outlet: 1/2" female NPT plus included 3⁄8″ hose barb if needed (fit 3⁄8″ ID hose; hose sold separately for remote drainage connection)

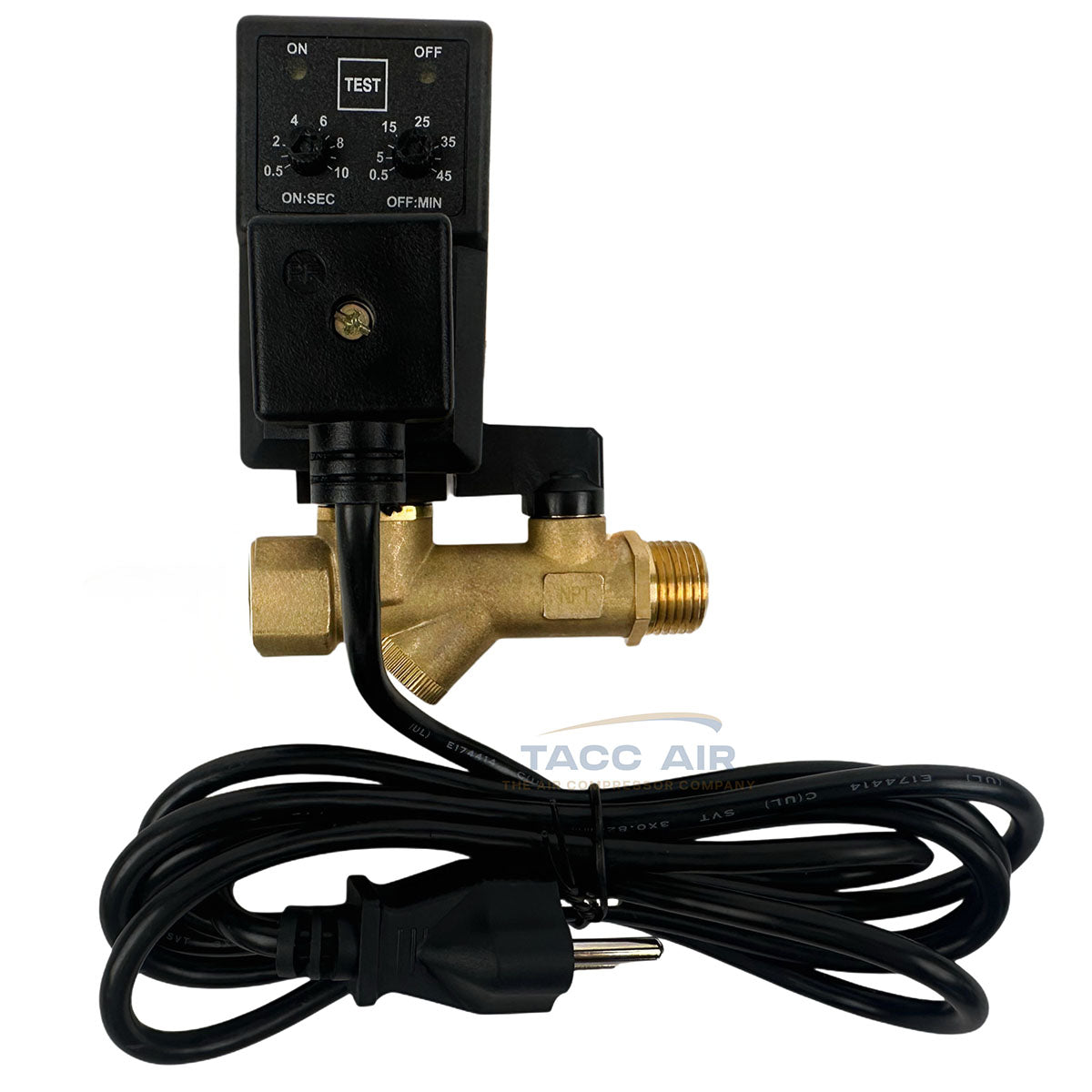

• Highly adjustable electronic timer:

  • Drain duration 0.5–10 sec, intervals from every 30 sec to 45 min (factory default ~3 sec every 45 min)

  • With the ideal moisture removal settings—only vapor or mist will discharge; longer and more frequent settings needed if steam of water is visible when drain is dis-charging.

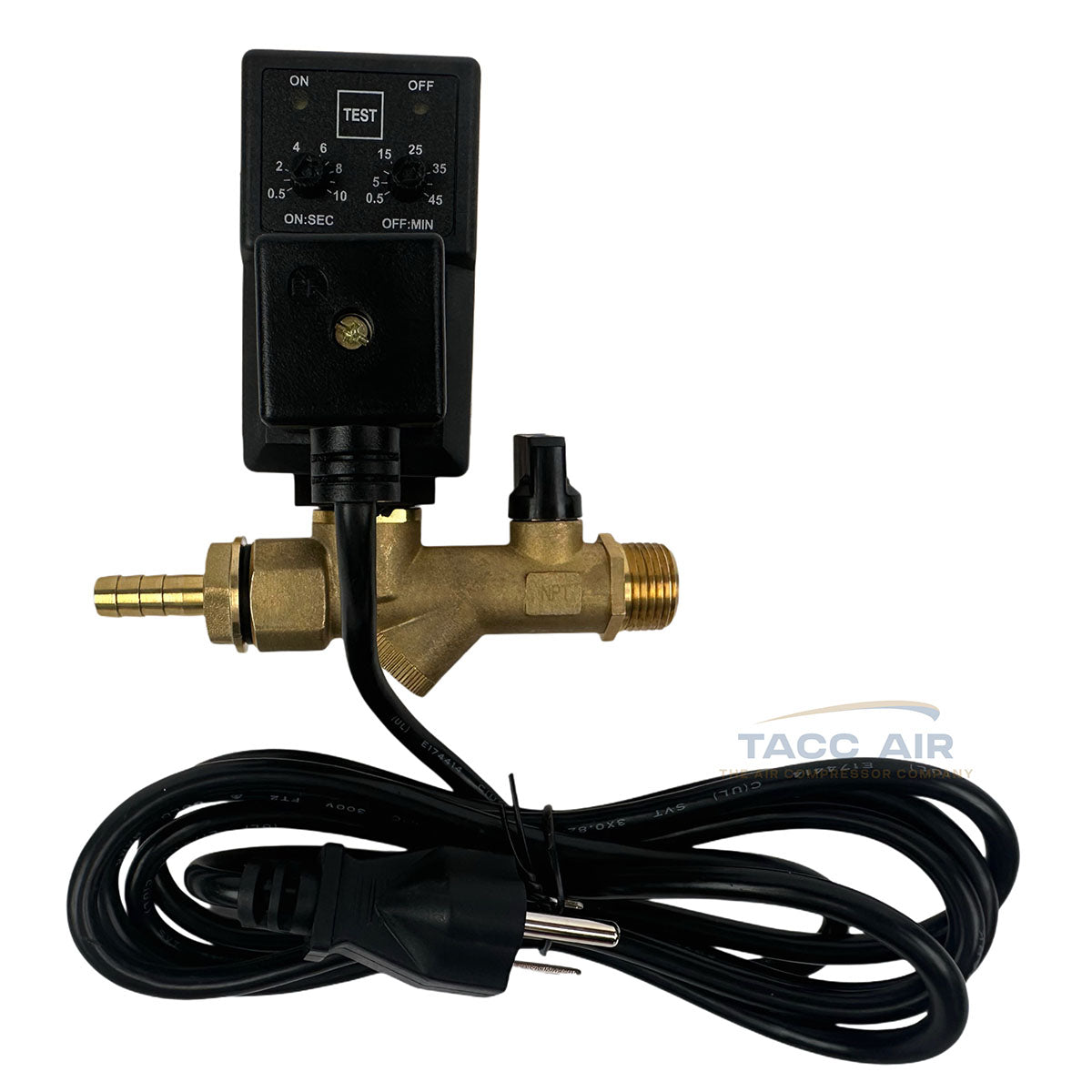

• LED status indicators:

  • Left LED = open valve (“ON”)

  • Right LED = closed valve (“OFF”)

  • Perfect for easily monitoring drain cycles in hard-to-reach installations

• Built-in Y-strainer: Protects solenoid by filtering debris—fine mesh strainer included

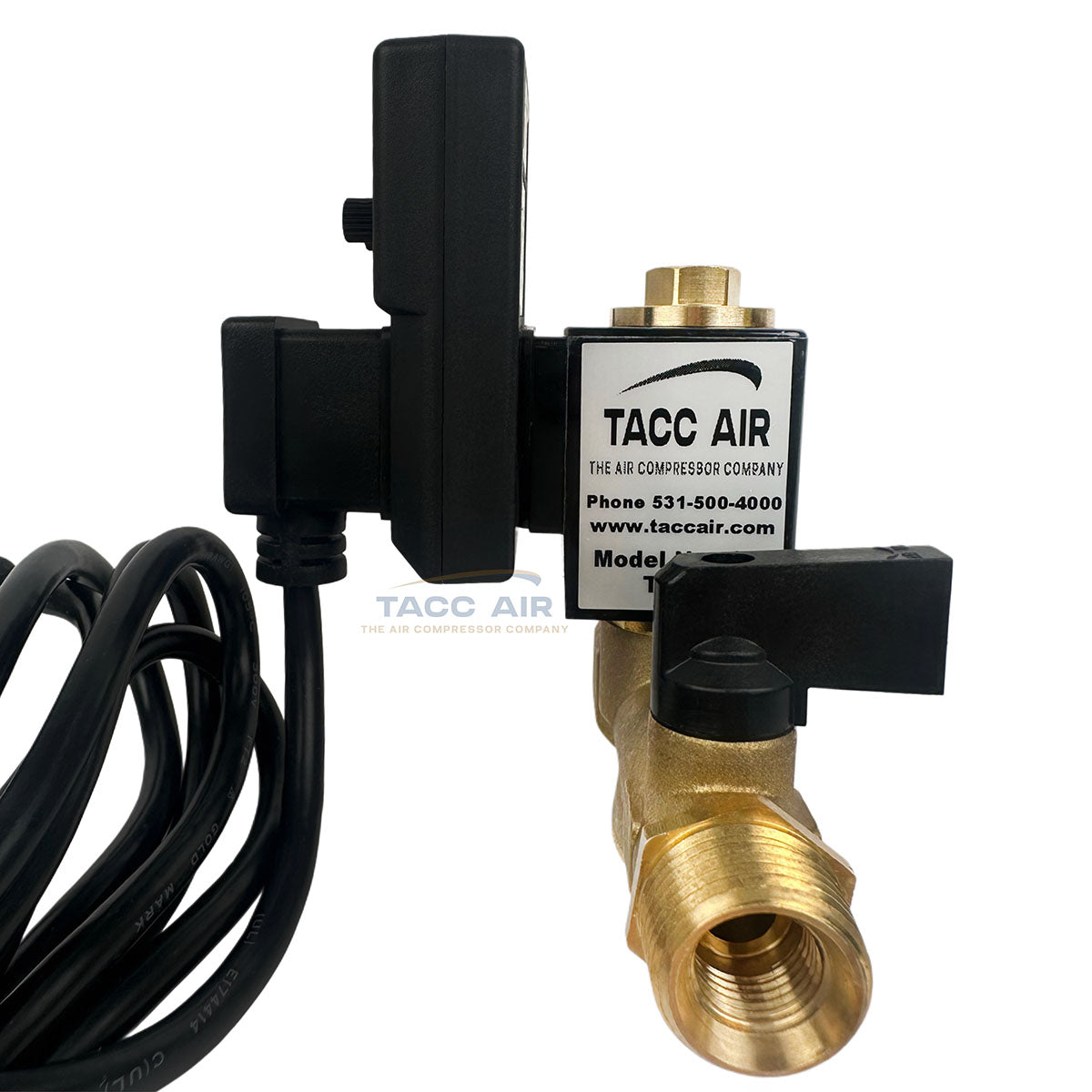

  • Maintenance tip: Clean screen every 6 months (or more often on dirty tanks)—just shut off the side ball valve, remove cap, rinse or blow out the screen, reassemble, reopen valve

• 1-year Tacc Air warranty guarantees lasting performance and support

Why Choose the TC52 Timer Drain?

• Certified reliability: ISO + UL + CE + CSA approvals meet the strictest industrial standards

• Precision condensate control: Fully adjustable timing prevents moisture buildup in compressed air systems, improving tool efficiency and reducing corrosion

• Easy installation & maintenance: Universal NPT sizing and hose barb included for installation; clear maintenance steps with LEDs and quick-clean y strainer

• Trusted by professionals: Built tough for workshop, plant, or commercial settings—minimizes downtime and maintenance
