Throttle Control Valve For Honda 5.5–6.5 HP Gas Engines Compressor TCSA-H-5565-SB

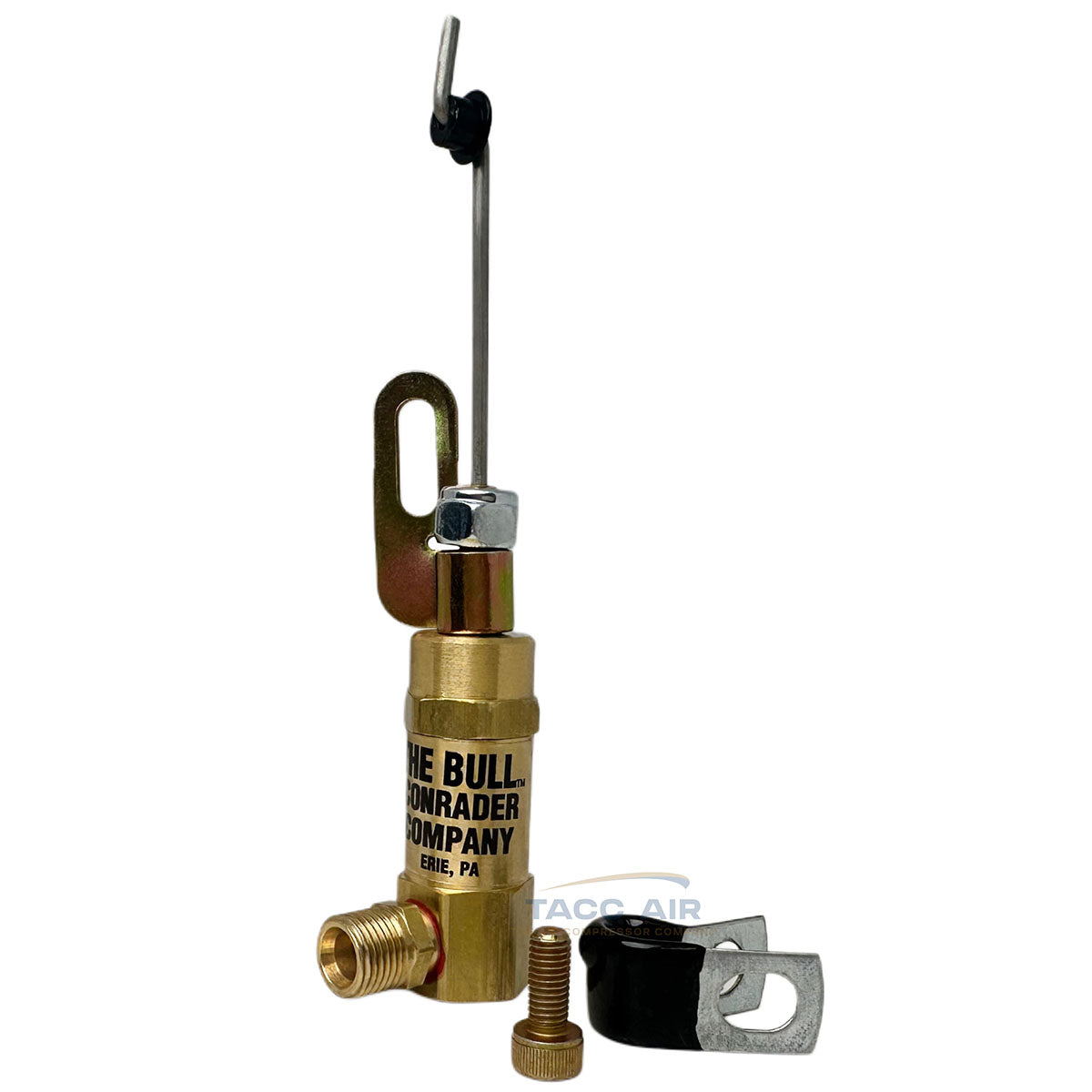

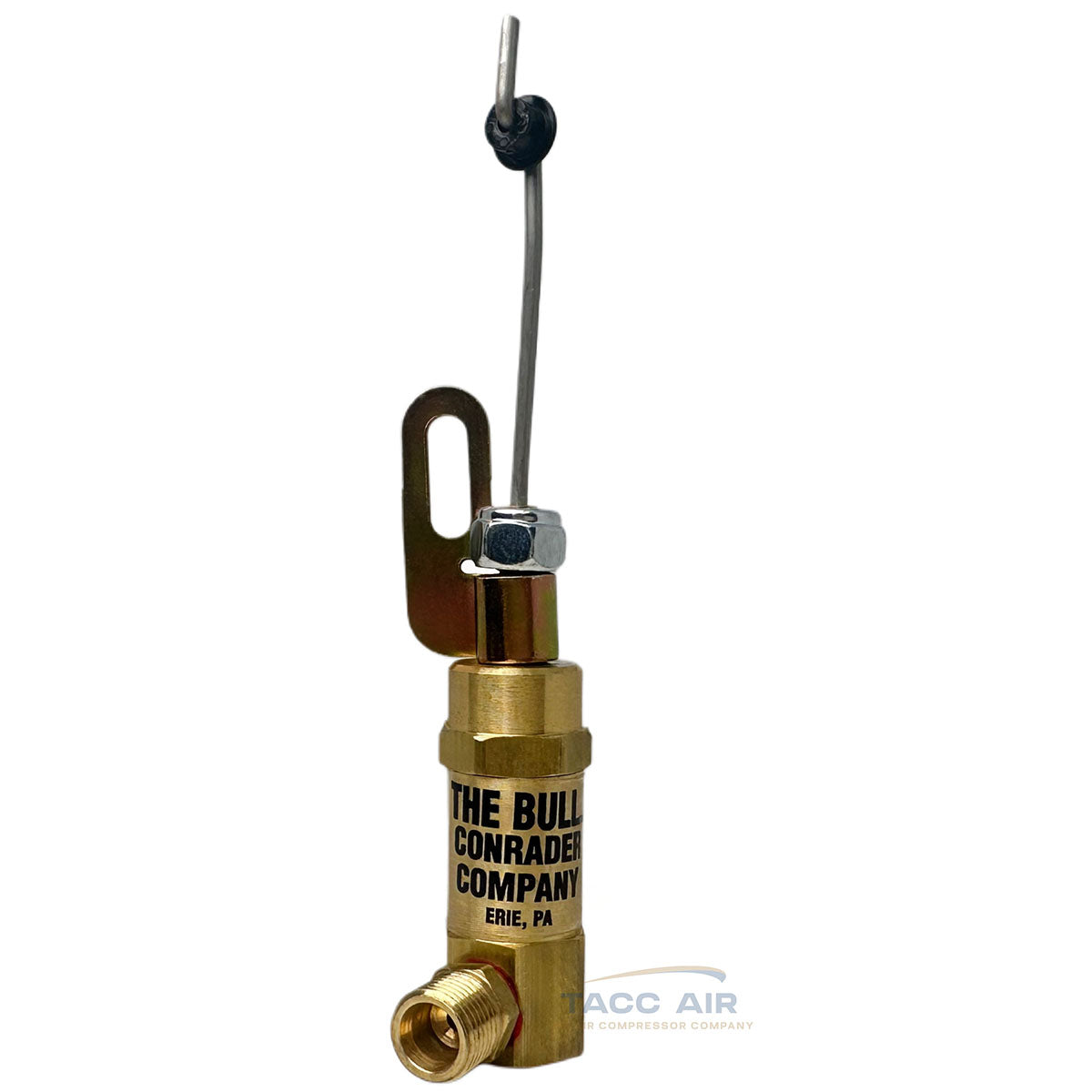

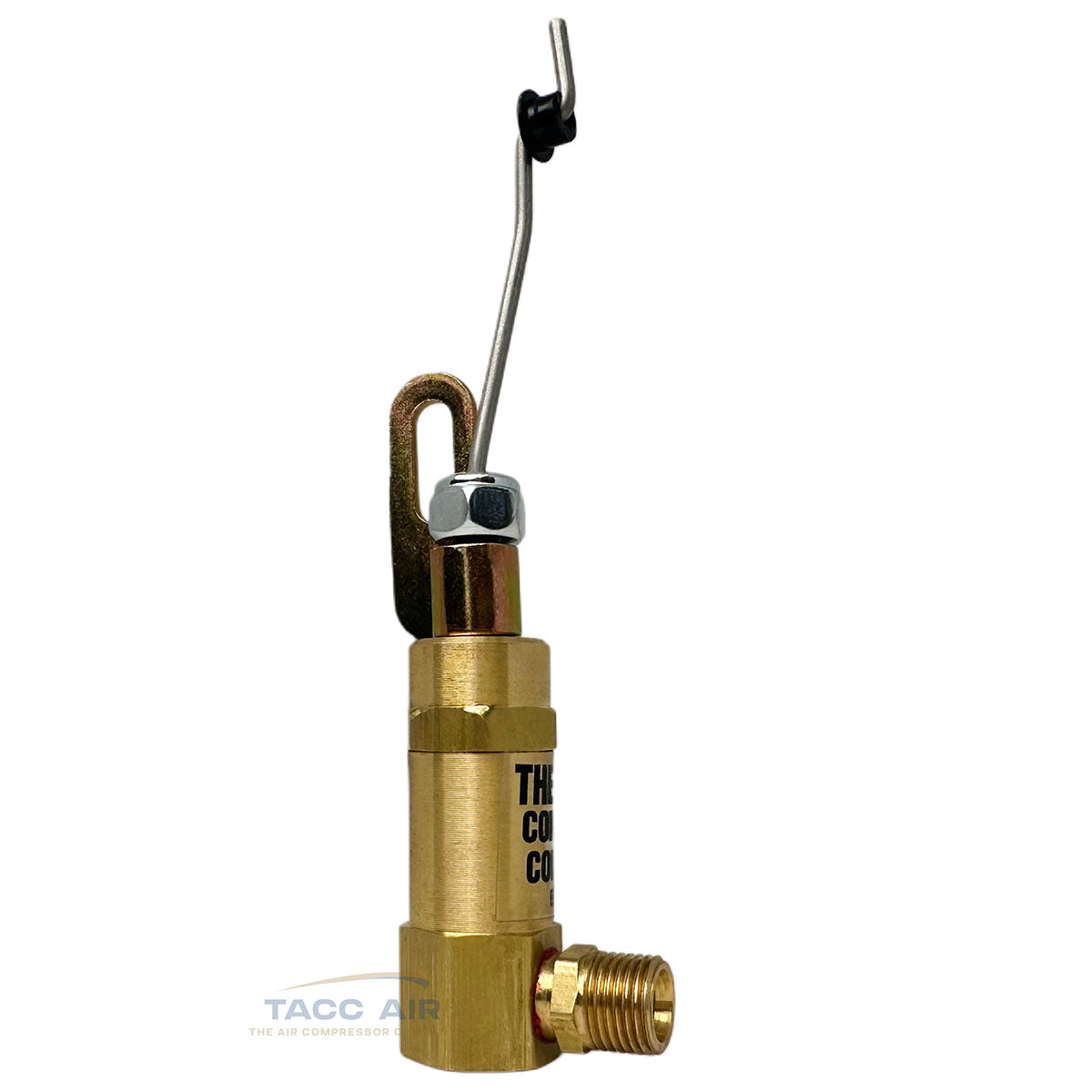

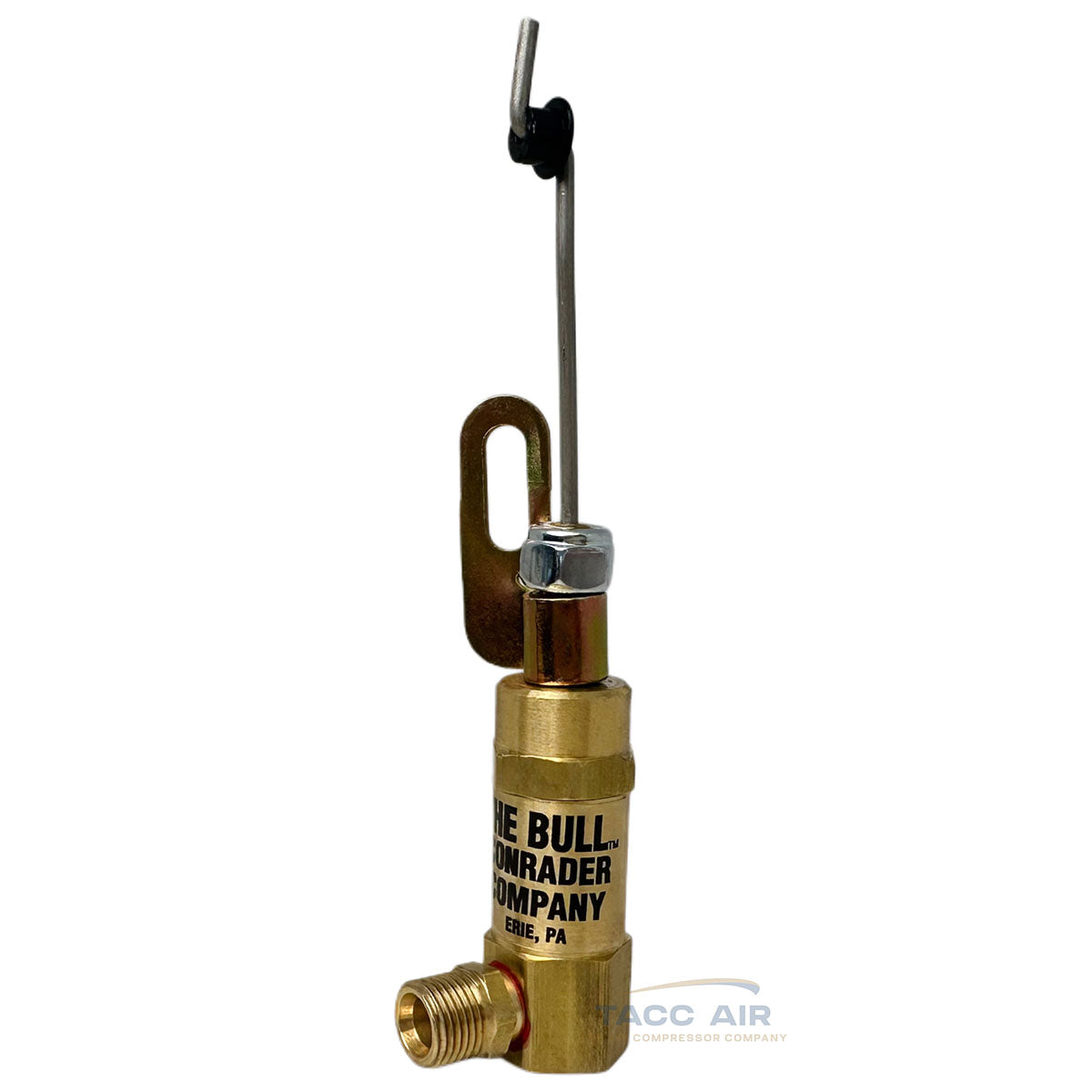

Conrader Throttle Control Valve – “Bullwhip” Style With Adjustable Mounting Bracket (For Honda Engines 8 HP or Smaller) – Made in the U.S.A.

This Conrader Throttle Control Valve, commonly referred to as a “Bullwhip,” is designed to regulate engine speed on gas-powered air compressors. When used in conjunction with a pilot/unloader valve, this standard-size control valve automatically reduces engine RPMs during unloaded compressor operation, enhancing fuel efficiency and prolonging engine life.

Ideal Fit:
Engineered specifically for Honda engines up to 8 horsepower, as well as other similar small-engine models. This version features a built-in adjustable mounting bracket for flexible installation on a variety of engine throttle configurations. An airline from the pilot valve is used to control engine speed.

Key Features:

• 1/4" Compression Air Inlet: Allows easy connection to your compressor’s pilot/unloader valve. (1/4" Compression accepts 1/4" OD air line with standard compression fitting)

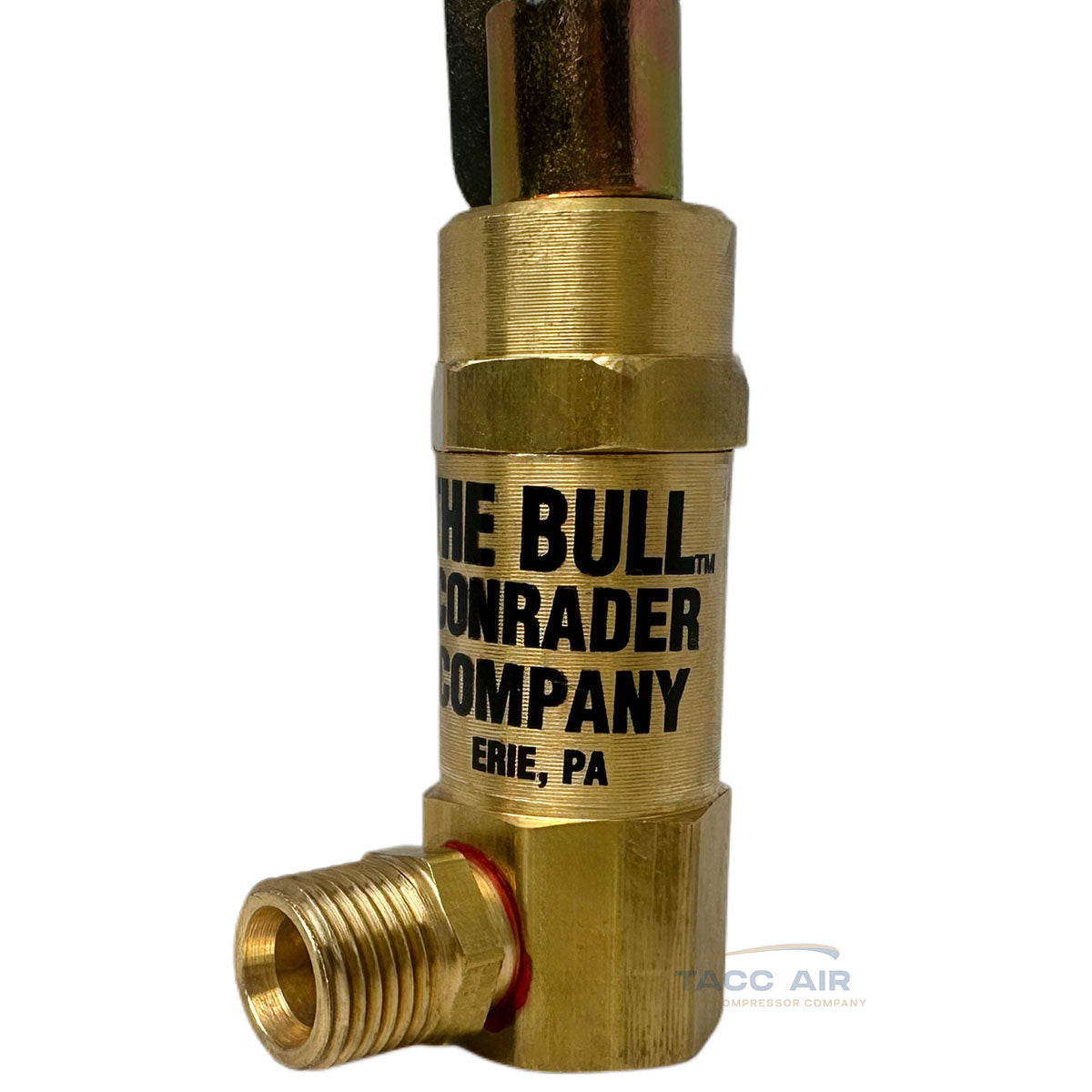

• Brass Valve Body & Steel Arm: Rugged construction designed to withstand demanding work environments.

• Adjustable Mounting Bracket: Features a built-in bracket with a slotted groove (3/16" wide x 5/8" long) for easy adjustment and secure mounting to Honda and other engines.

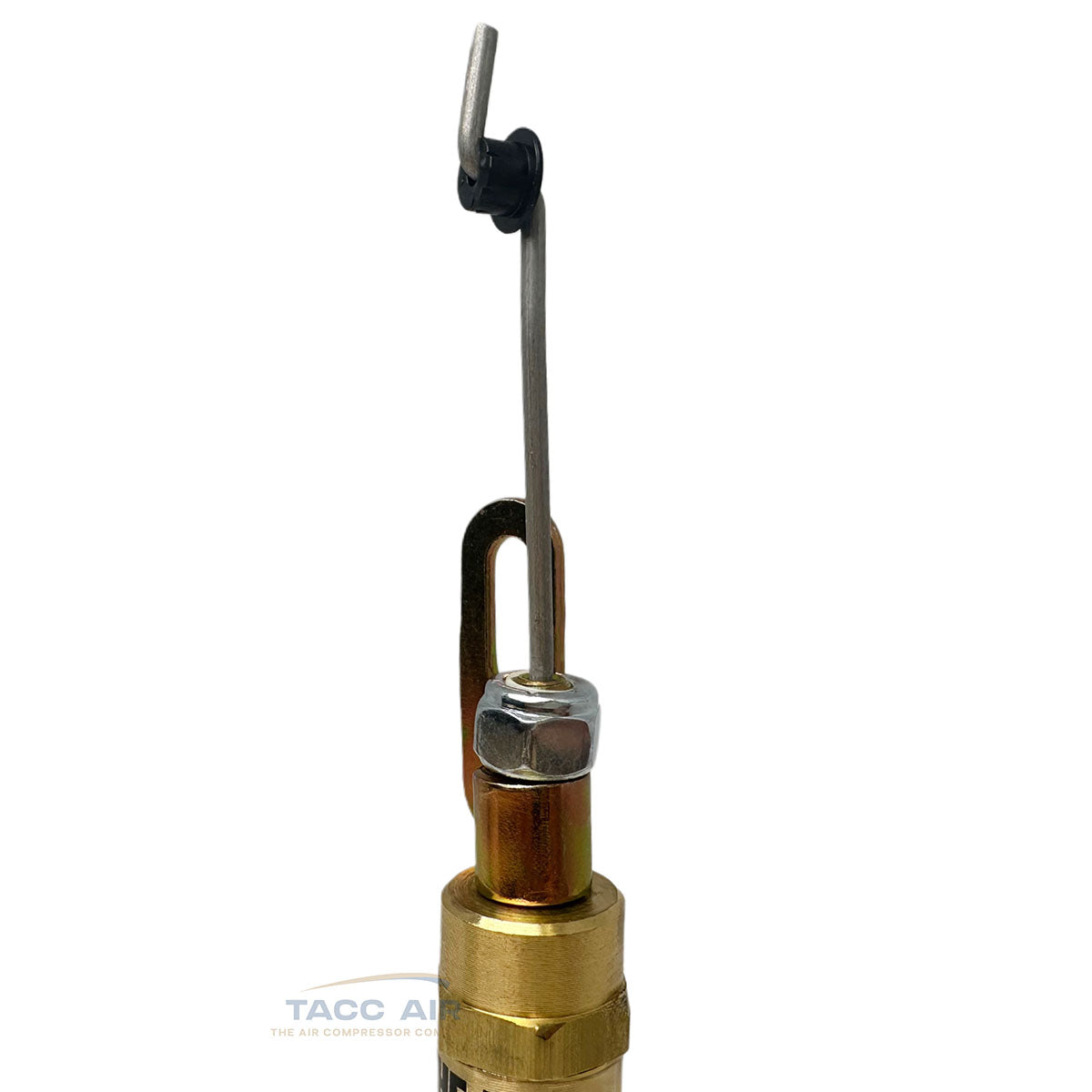

• Z-Bend Control Arm: Extends 2.2" from the end of the mounting shaft.

• Overall Length: 4.9", including the valve body and control arm.

• Includes Metal P-Clip & Mounting Screw: Optional for securing the incoming control airline as well as Allen screw for mounting to the throttle bracket.

Part Number: TCSA-H-5565-SB (also known as 3892)

Note:
Throttle control valves are available in multiple mounting styles. Please review product photos and measurements carefully to ensure compatibility with your engine. Additional models and configurations can be found in our store.
