Tsunami 1/4" Air Moisture Filter Water Separator w/ Float Drain 20CFM 21999-0390

Tsunami 20 Series Water Separator – 1/4" NPT, 250 PSI Max Pressure

Made In USA

The Tsunami 20 Series Water Separator Filter is engineered to deliver maximum moisture removal for superior air quality in any application. Built with advanced up-flow separation technology, it efficiently handles up to 1 quart of water per minute, filters particulate down to 10 micron, and is rated for systems up to 20 CFM.

Key Features:

• High Moisture Removal – Removes large volumes of water from your air supply to protect tools and equipment.

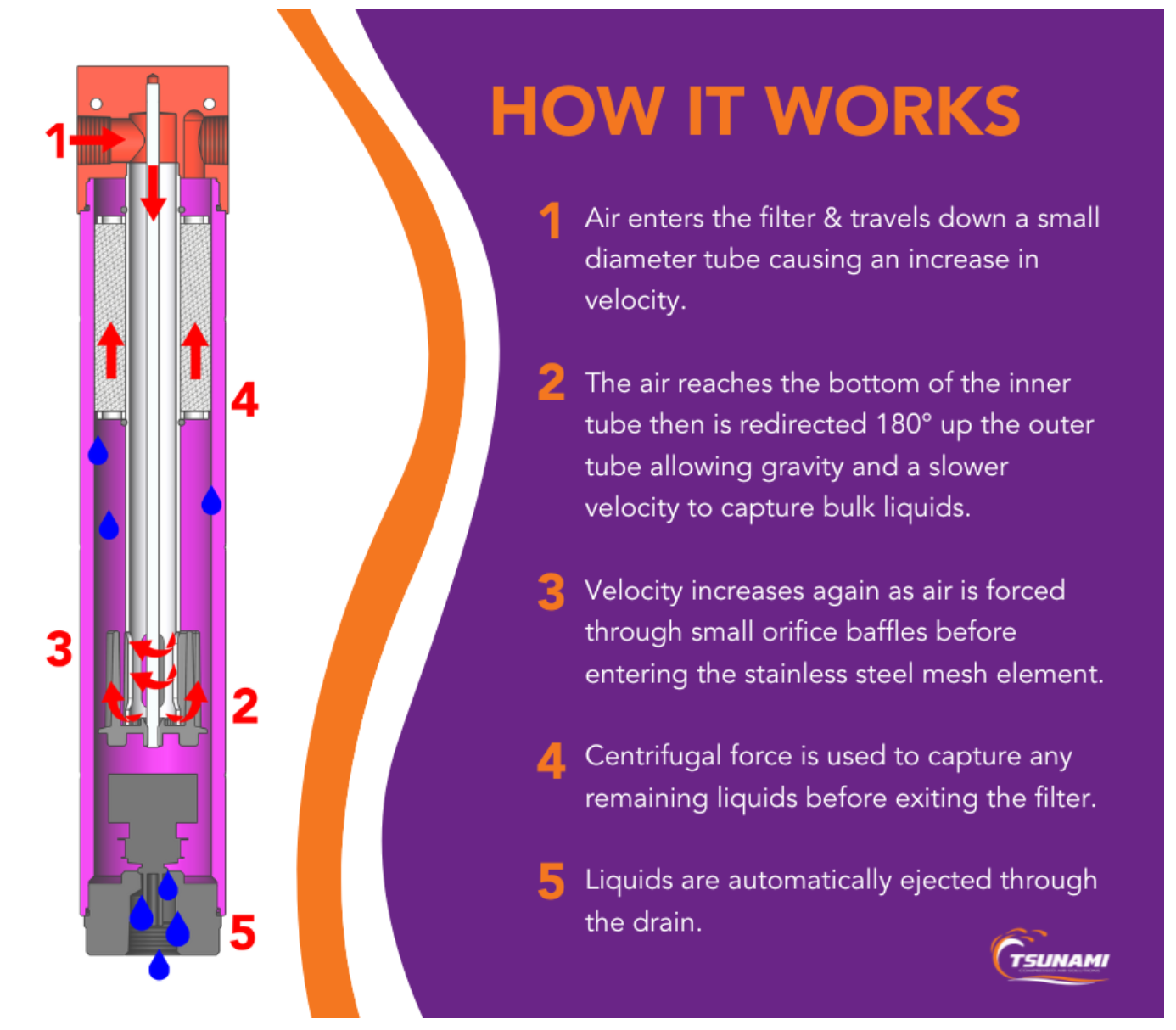

• Consistent Performance – Unique up-flow design with stainless steel mesh forces air to reverse direction 180°, ensuring 100% consistent results at all flow rates.

• Integral Automatic Float Drain – Quickly ejects water from the oversized sump; minimal maintenance required.

• Heavy-Duty Construction – Zamak anodized and powder-coated head with oversized casing; machined from 6061 aircraft aluminum for maximum corrosion resistance.

• Optimized for Durability – Elevated sump design traps sediment away from the filter element to extend service life.

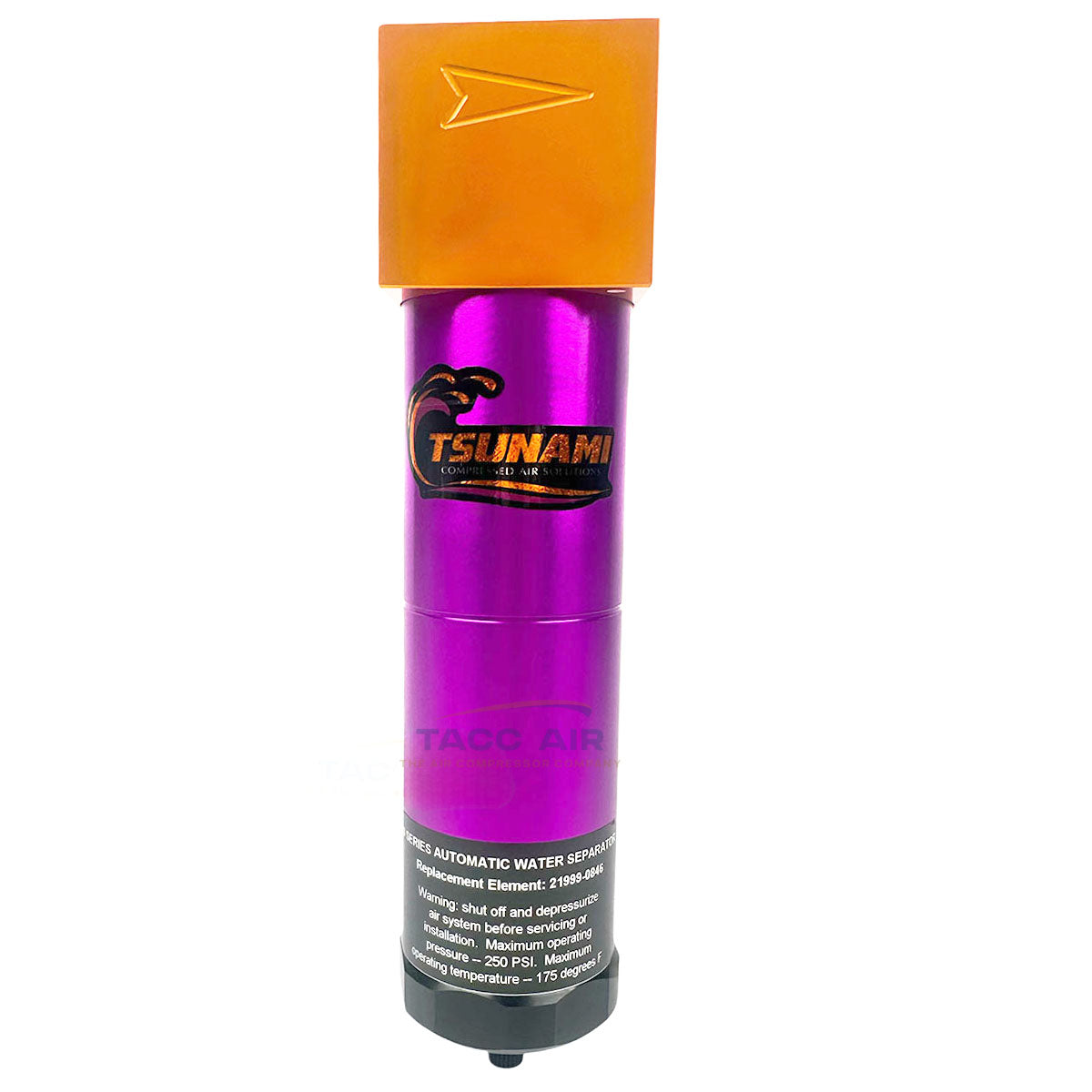

• Flow Direction Arrow – An arrow is stamped into the main aluminum manifold; air must flow in the direction of the arrow for correct operation.

• Easy Service & Upgrade Options – Bottom cap removes easily for servicing the float drain; threaded for optional electronic drain (sold separately).

• Performance Specs – 1/4" NPT inlet/outlet (Note: 1/4" NPT measures approximately 1/2" in in diameter for reference), 250 PSI max pressure, 175°F max temperature, handles up to 20 CFM.

• Mounting – Mounting brackets sold separately for wall mount applications.

From spray applications to industrial operations, the Tsunami 20 Series Water Separator is rigorously tested to outperform expectations—delivering clean, dry air you can rely on.
