7.5 HP Three Phase Magnetic Starter Motor Control Switch Box 208 - 240 Volt 3 PH

7.5 HP Magnetic Motor Starter Control Box – Three Phase, 208-240V, Adjustable Overload 17-24A, With Large Steel Enclosure for Air Compressors, HVAC, and Equipment

Product Description:
This 7.5HP magnetic motor starter is 208-240V, 3-phase. This starter is a perfect solution for controlling air compressors, pumps, fans, and other equipment requiring reliable motor protection.

Equipped with an adjustable overload relay (17-24 amps), it safeguards your motor from overcurrent damage while offering the ease of fine-tuning for your setup. This starter offers the TX steel enclosure which is larger than standard Shihlin housings, giving you more room inside for easier wiring and cleaner installations.

This unit includes four pre-punched knockouts for wire entry and four rubber grommets to keep your wiring protected. A manual reset button can be set to automatic for flexible operation, depending on your control system needs.

Ideal for compressor applications, this starter reduces load stress on pressure switches and extends system life when used alongside a compatible pressure switch (sold separately).

Specifications:

• Motor Size Compatibility: 7.5 Horsepower (HP) Recommended

• Voltage: 208-240V AC, 3-Phase

• Overload Range: Adjustable from 17 to 24 Amps

• Reset Function: Manual or Auto Reset Options

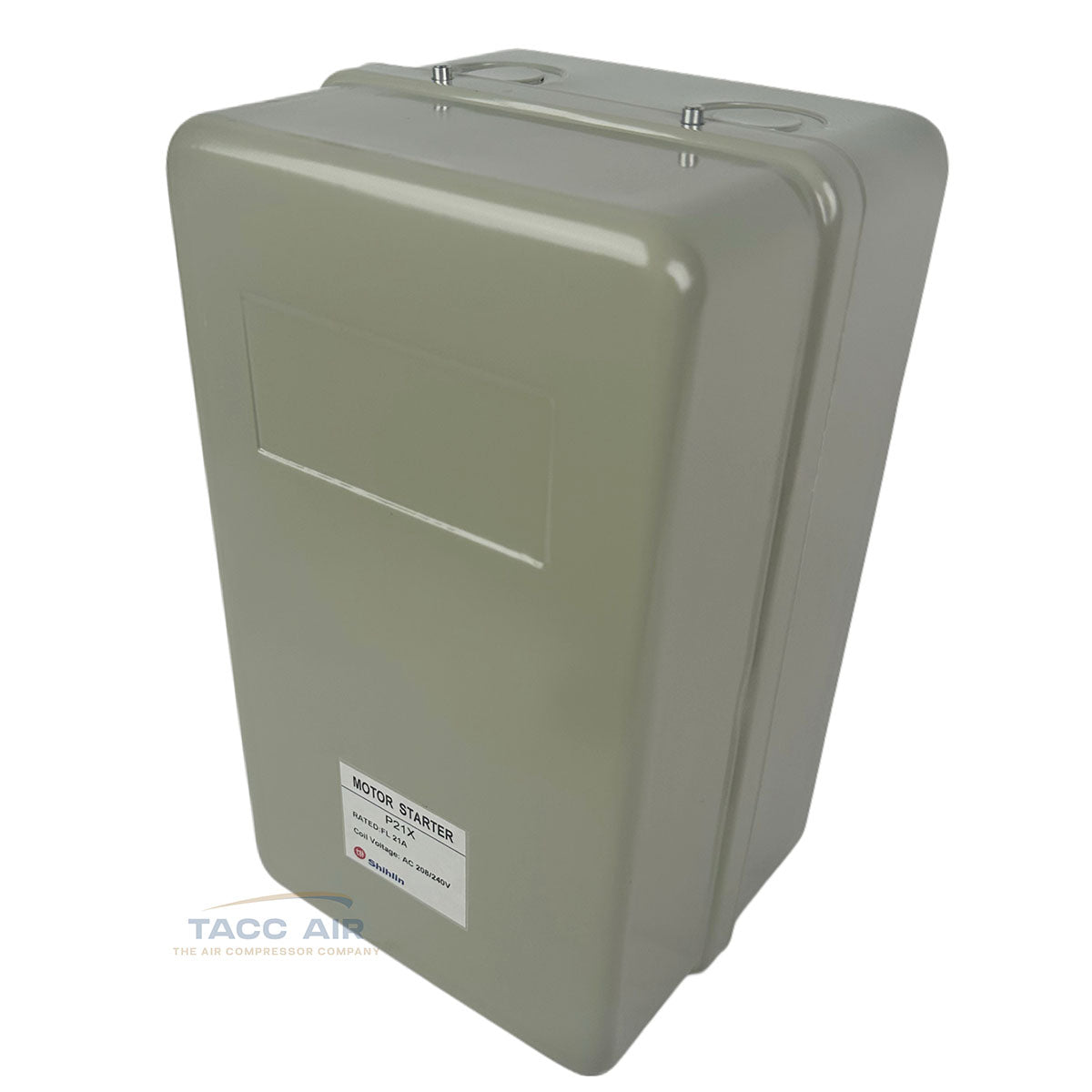

• TX Steel Enclosure: Larger design for easier wiring vs standard models

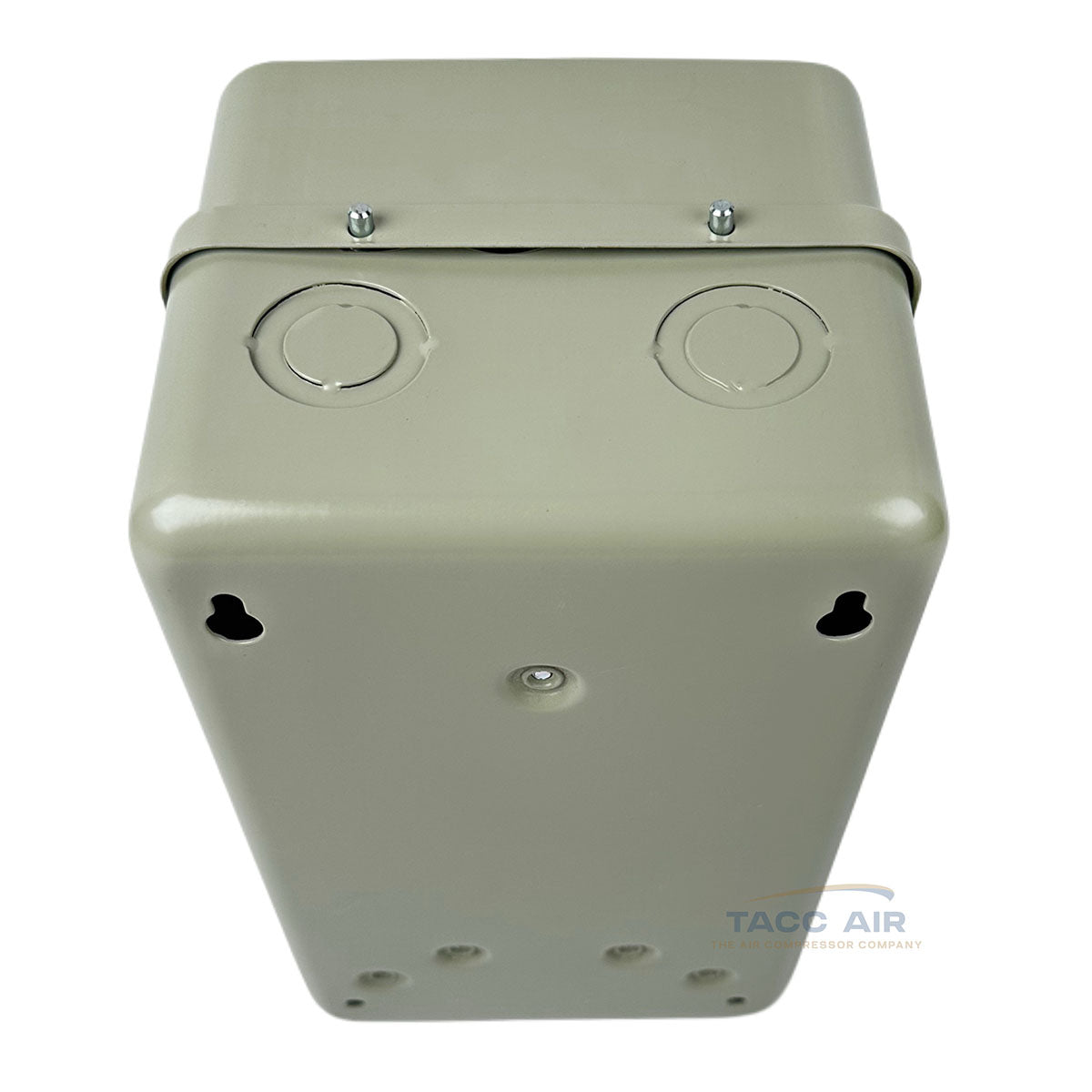

• Knockouts: Four punch-out holes (3/4" or 1-1/4") for wire entry/exit

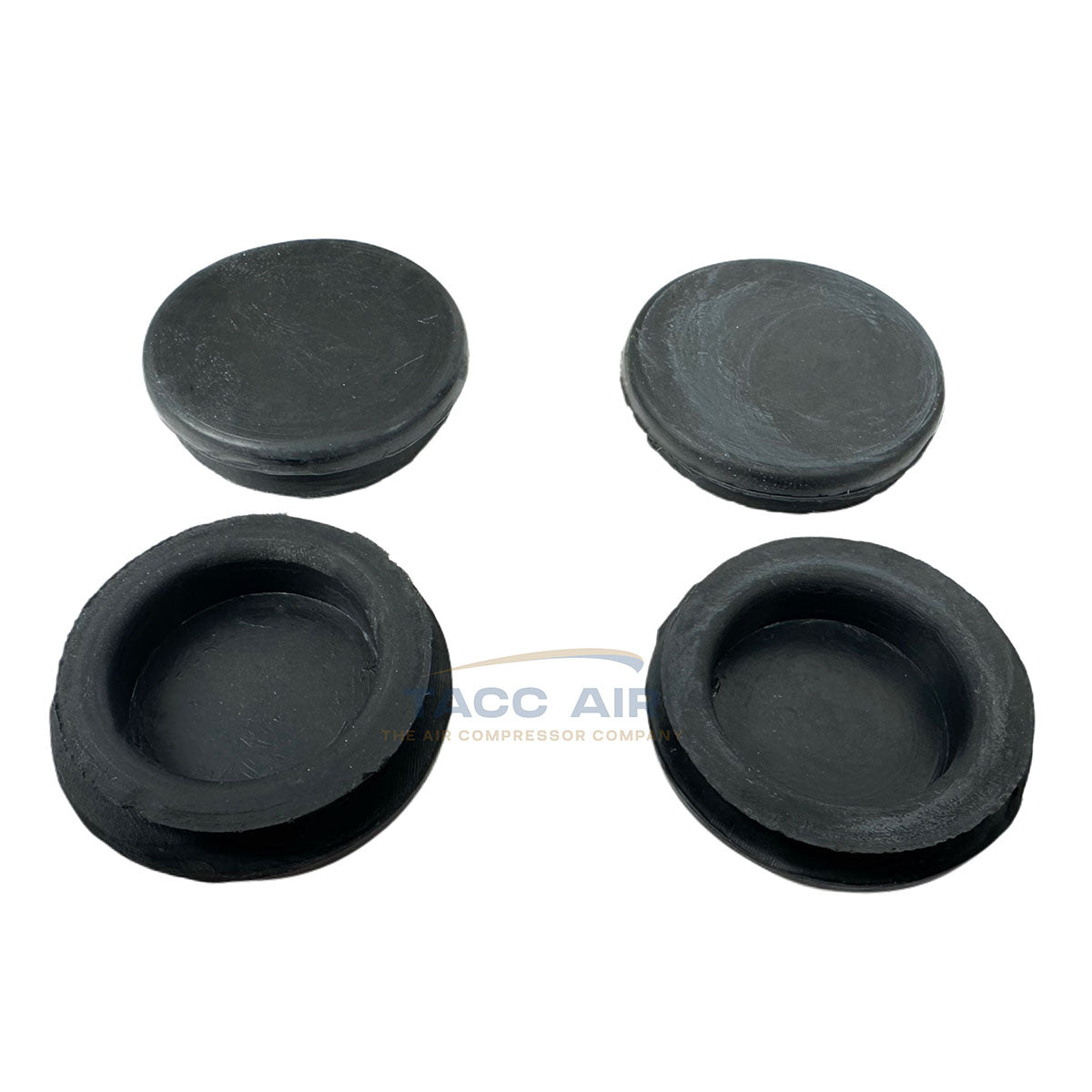

• Rubber Grommets Included: Four 1-1/4" protective wire grommets

• Starter Dimensions (H x D x W): 11-1/8" x 5-3/4" x 6-1/4"

• Installation: Professional installation is required
